Description
General Specifications | Details |
---|---|

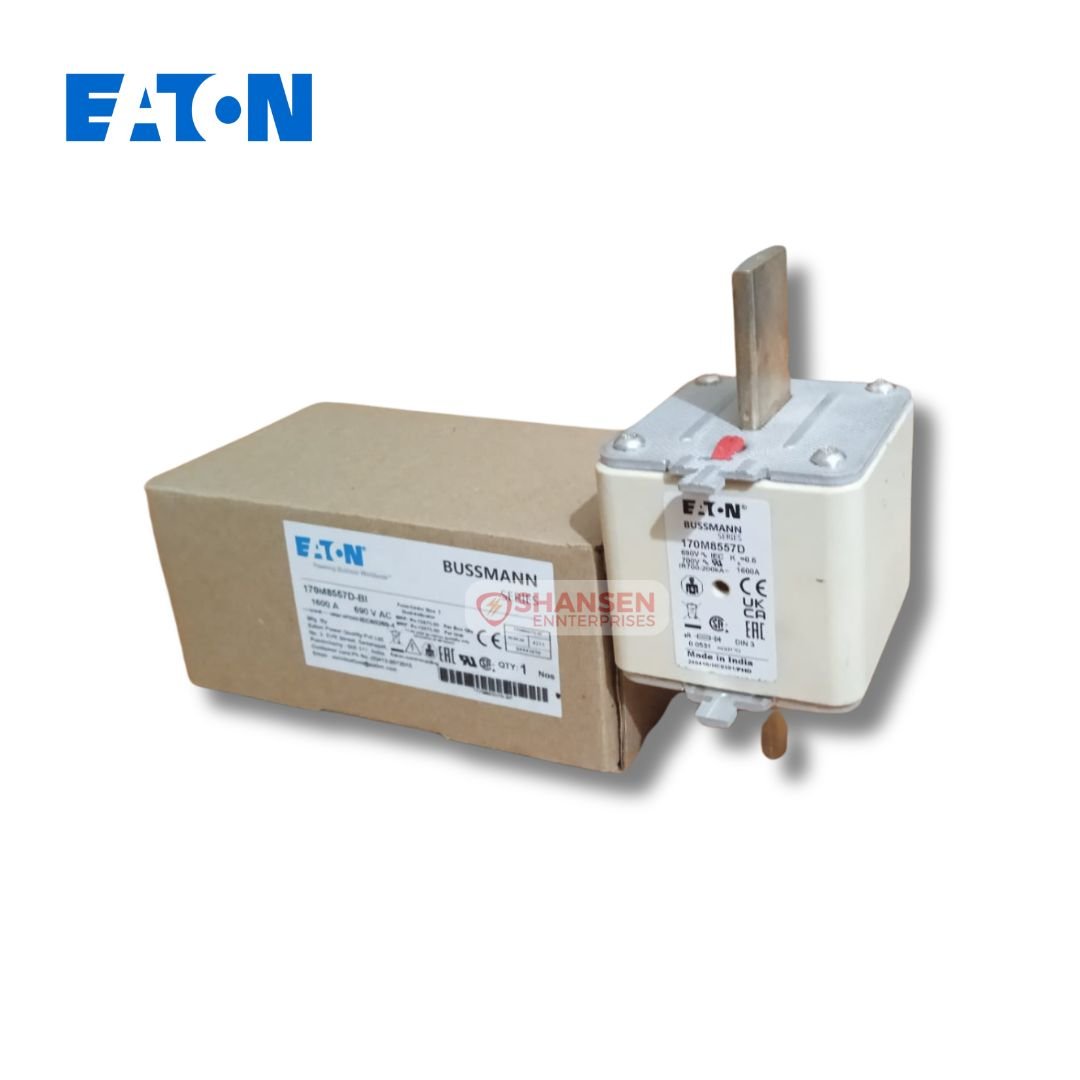

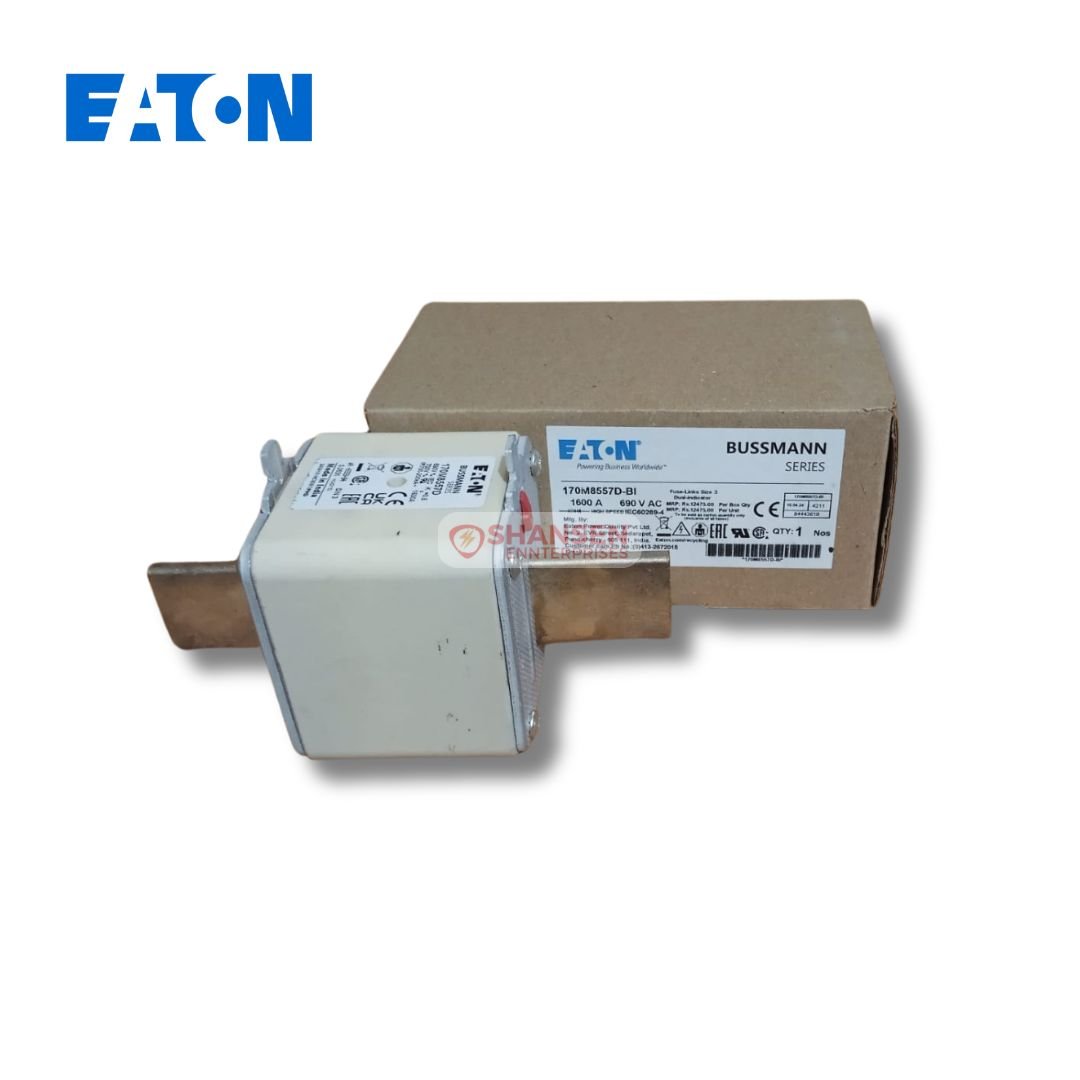

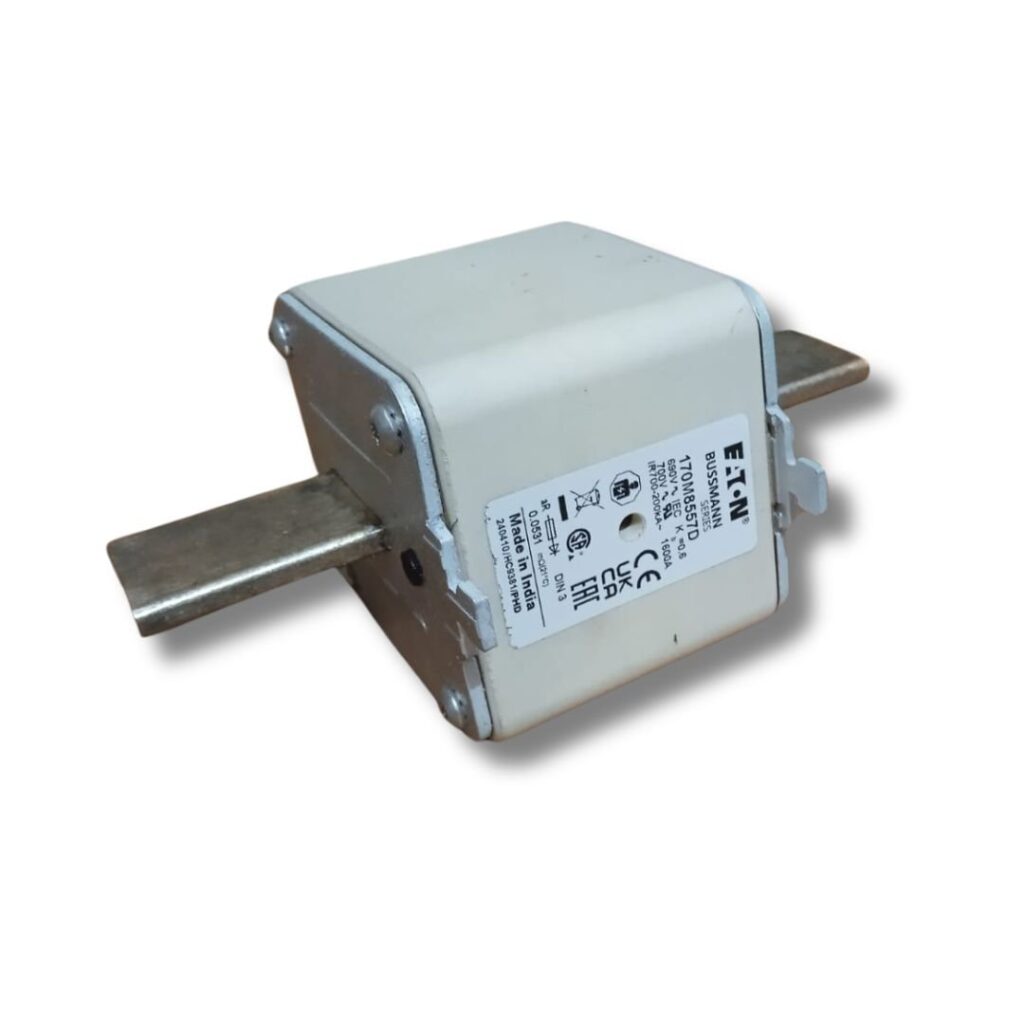

Product Name | Eaton Bussmann series high speed square body fuse |
Catalog Number | 170M8557D |
EAN | 5027590252737 |
UPC | 051712335324 |
Product Length/Depth | 150 mm |
Product Height | 87 mm |
Product Width | 71 mm |
Product Weight | 1116 g |
Compliances | CE Marked, RoHS Compliant |
Certifications | IEC Rated, UL Recognized |
Product Specifications | Details |
---|---|
Type | Fuse |
Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
Amperage Rating | 1600 A |
Breaking Capacity | 200 kA |
Fuse Indicator | Combination fuse status indicator |
Insulated Metal Gripping Lugs (IMGL) | No |
Utilization Category | aR (accompanied semiconductor protection) |
Voltage Type | AC |
Fuse Size | 3 |
Rated Voltage AC | 690 V |
Fuse Type | DIN 43620, Bladed |
Fitted With | Dual Indicator |
