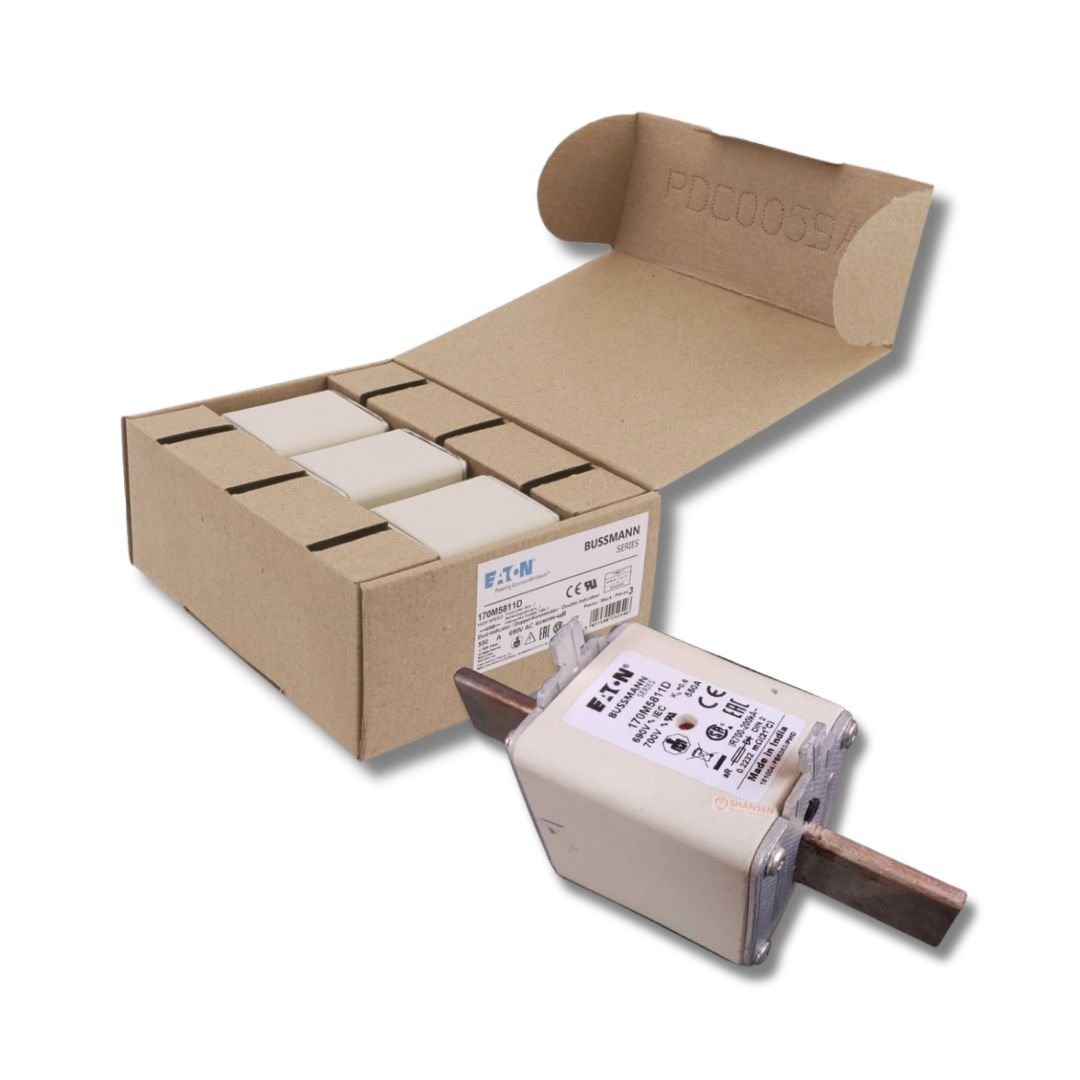

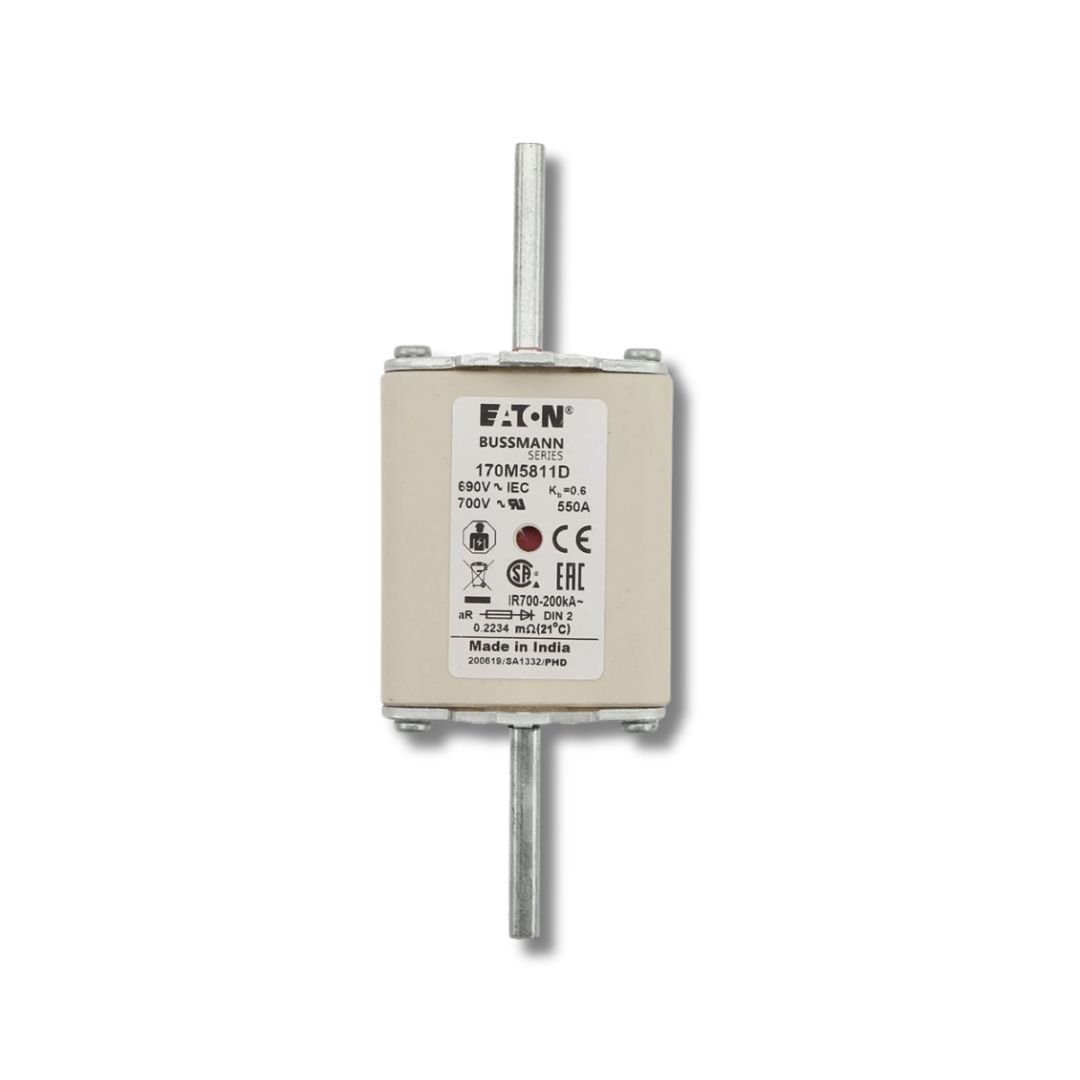

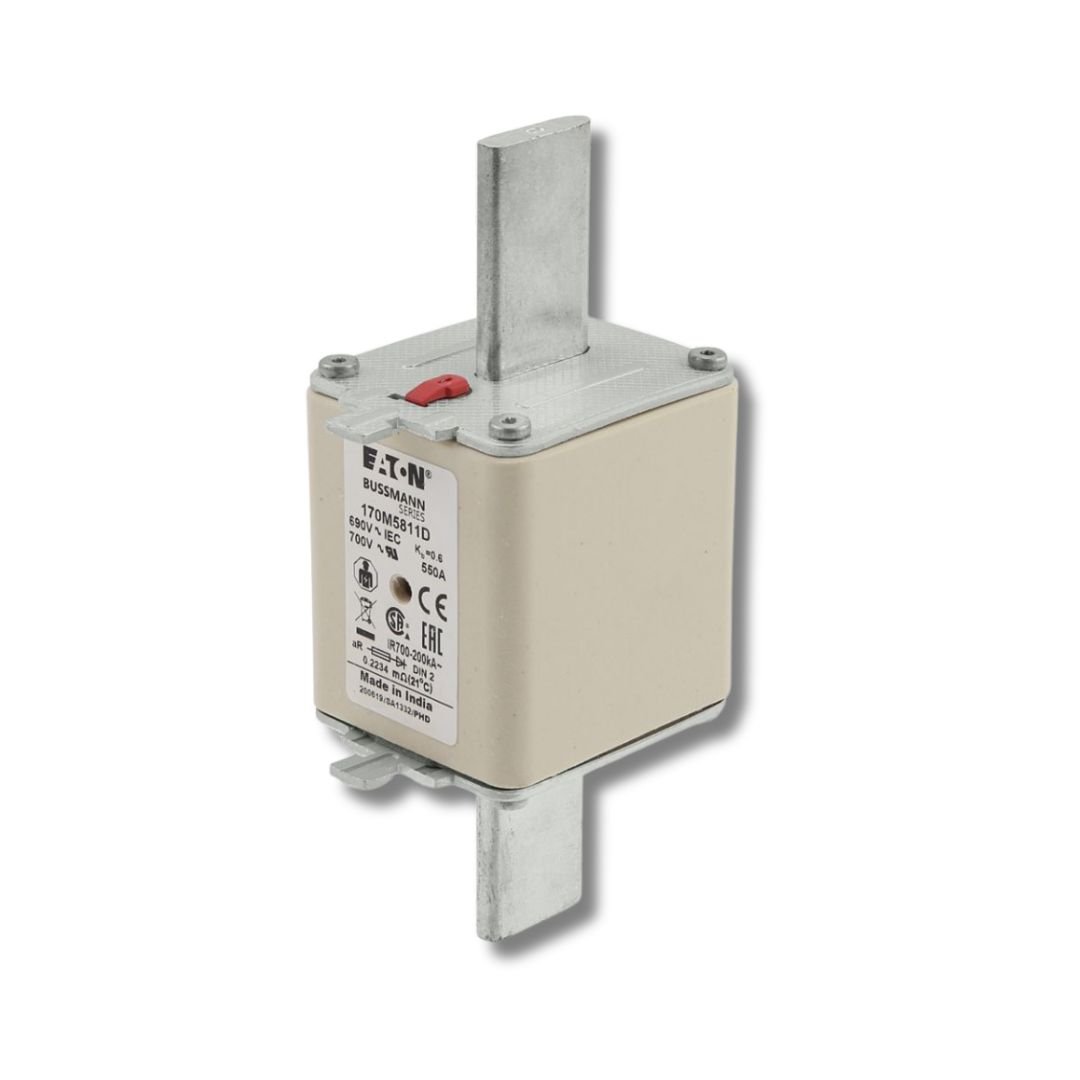

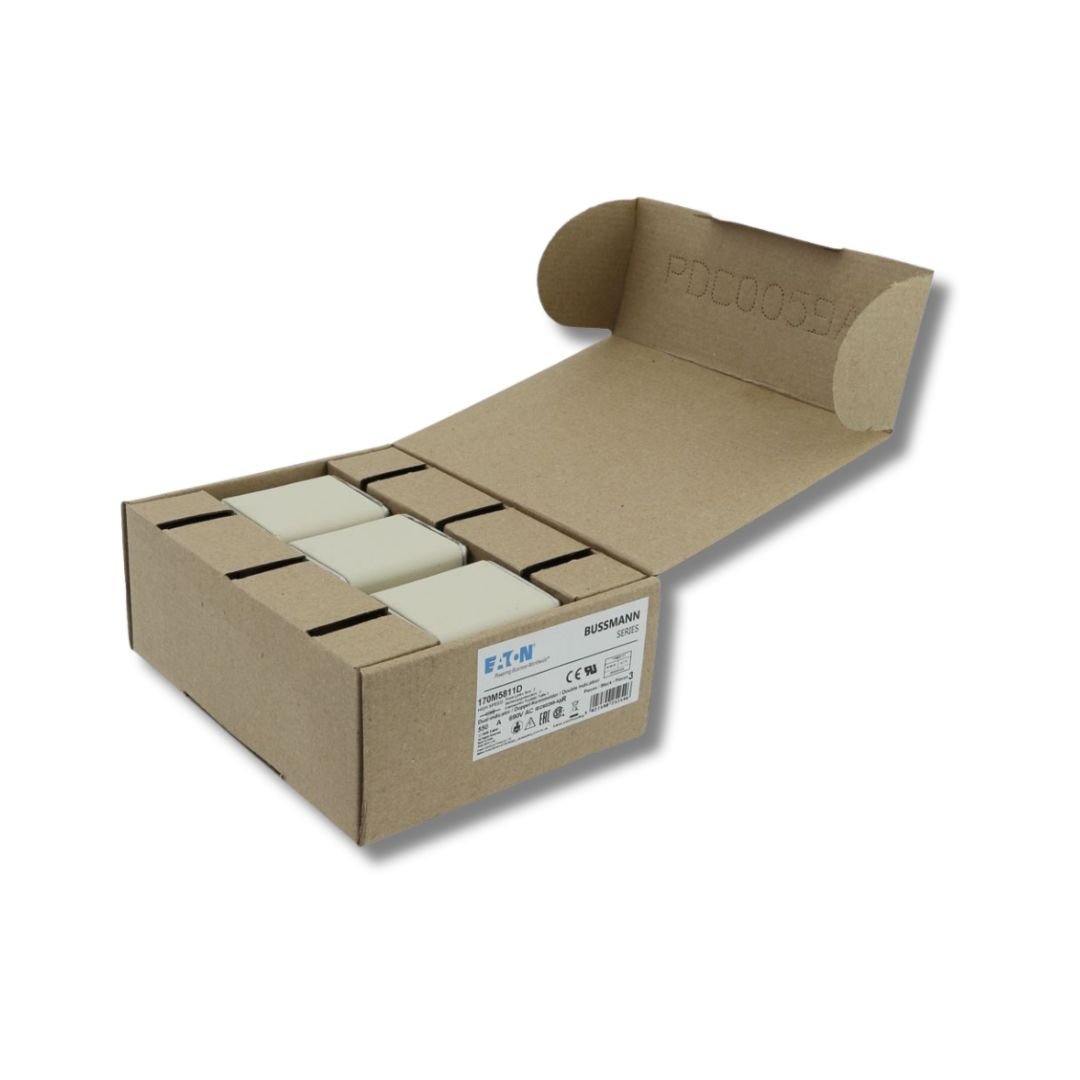

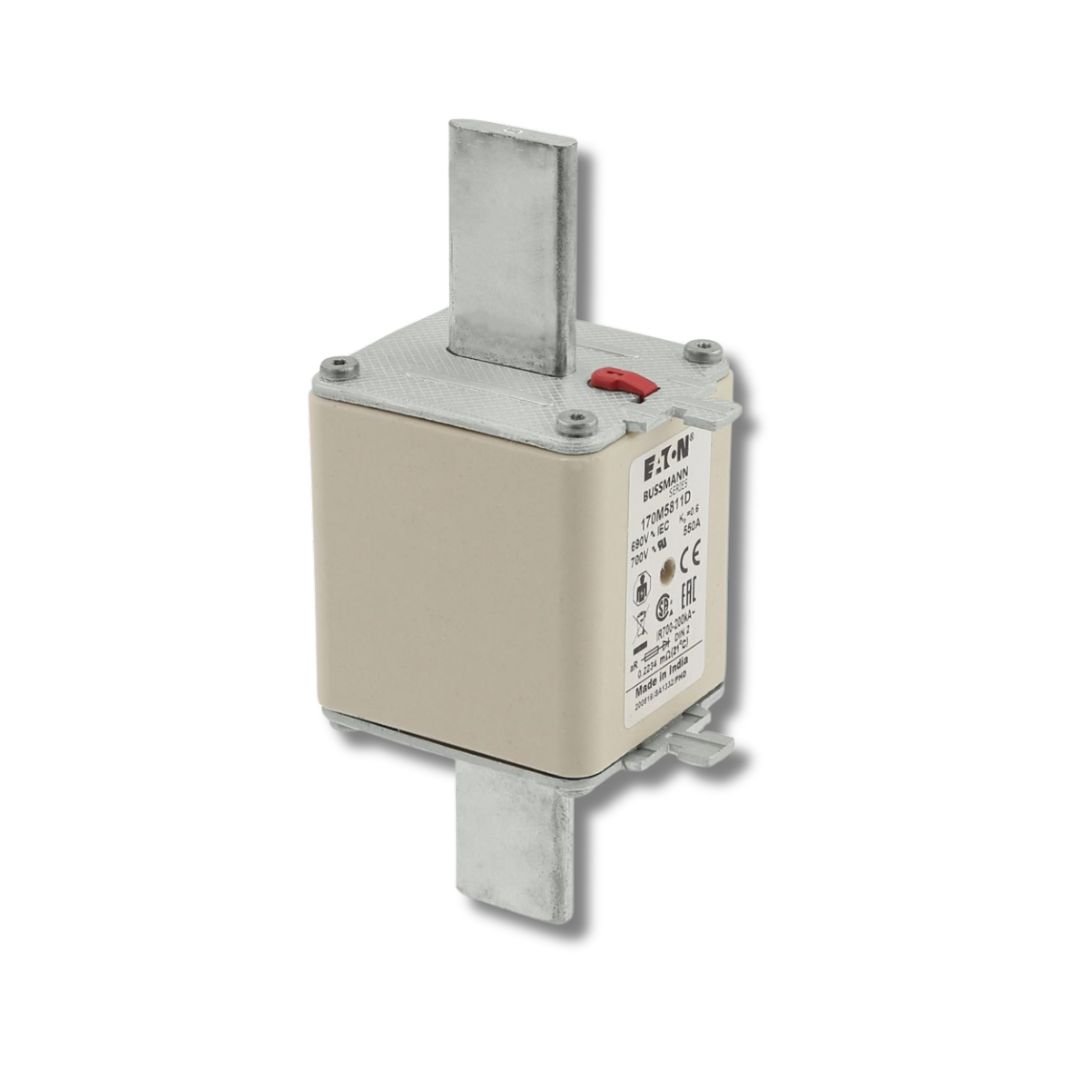

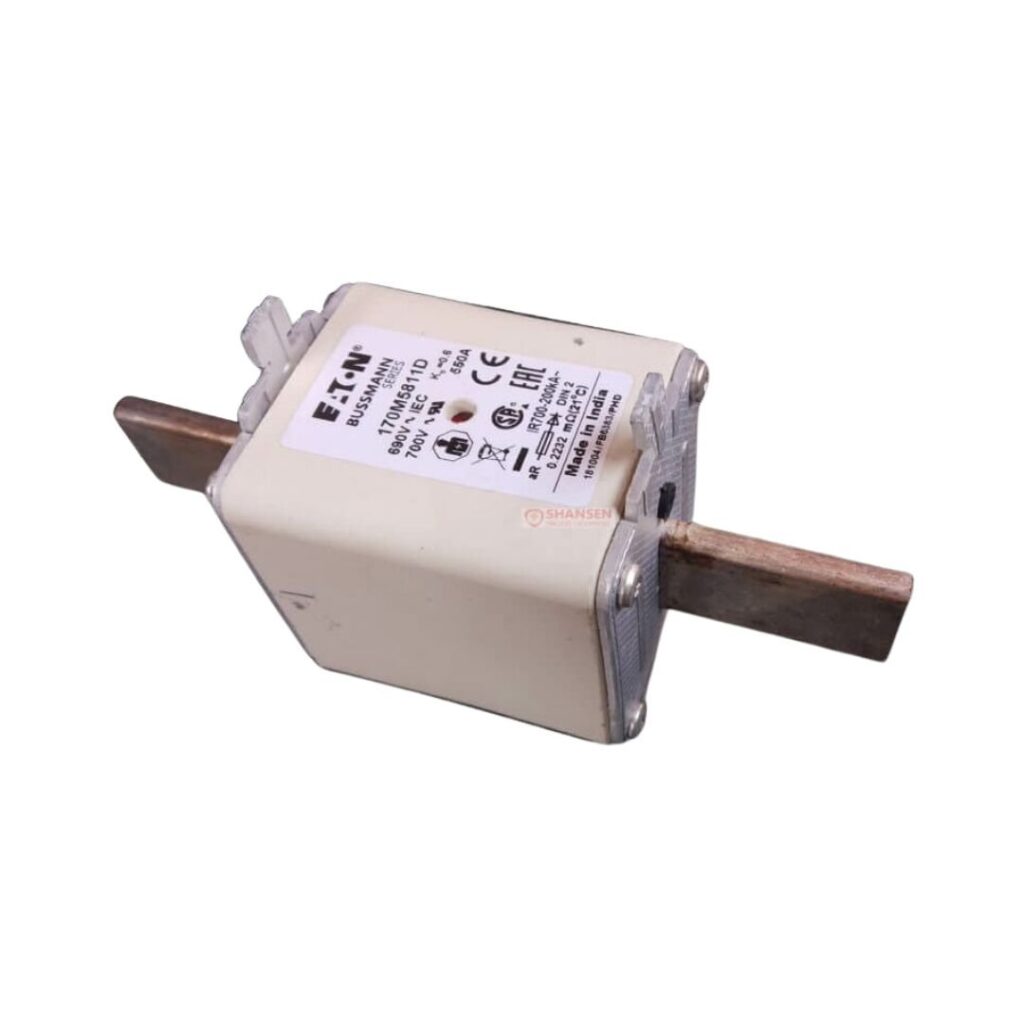

Eaton Bussmann Series High Speed Square Body Fuses 170M5811D

The Eaton Bussmann Series High-Speed Square Body Fuse 170M5811D is engineered to deliver superior protection for semiconductor devices in industrial applications. It combines robust construction with reliable performance, ensuring that your electrical systems are safeguarded against potential faults.

Key Features

• Voltage and Amperage: Designed to operate at 700V (UL) and 690V (IEC) with an impressive amperage rating of 550A, this fuse is capable of handling demanding electrical environments.
• High Interrupt Rating: With an interrupt rating of 200 kAIC, the 170M5811D is built to interrupt extremely high fault currents, providing an additional layer of security for your critical systems.
• Utilization Category: Classified under aR (accompanied semiconductor protection), this fuse offers specialized protection for semiconductor devices, making it ideal for applications that require rapid response to overcurrent conditions.

Design and Construction

• Connection Type: Featuring Din 43-620 blade ends on both sides, the 170M5811D ensures a secure and reliable connection in various installations.
• Construction Size: Classified under “Other” construction size, this fuse is versatile enough to fit a range of equipment setups without compromising on performance.
• Clearing I²t Rating: With a clearing I²t rating of 215,000 at 660V, the fuse is designed to handle energy discharges efficiently, protecting your equipment from electrical surges.
• Watt Losses: The fuse operates with watt losses of 36W, maintaining energy efficiency while delivering top-notch protection.

Additional Features

• Fuse Status Indicator: The combination fuse status indicator provides clear, immediate feedback on the operational state of the fuse, ensuring timely maintenance and replacement when necessary.
• Insulated Metal Gripping Lugs (IMGL): While this model does not include insulated metal gripping lugs, its design still offers reliable installation and handling features.

Availability

Available at Shansen Enterprises, an authorized channel partner located in Coimbatore, this Eaton Bussmann Series High-Speed Fuse is just one part of their extensive inventory of fuses, fuse links, and fuse holders. Shansen Enterprises is renowned for its commitment to customer satisfaction, serving clients throughout Coimbatore and across India with unmatched reliability.

For robust, reliable semiconductor protection, the Eaton Bussmann Series High-Speed Square Body Fuse 170M5811D is an excellent choice, available now from Shansen Enterprises.
