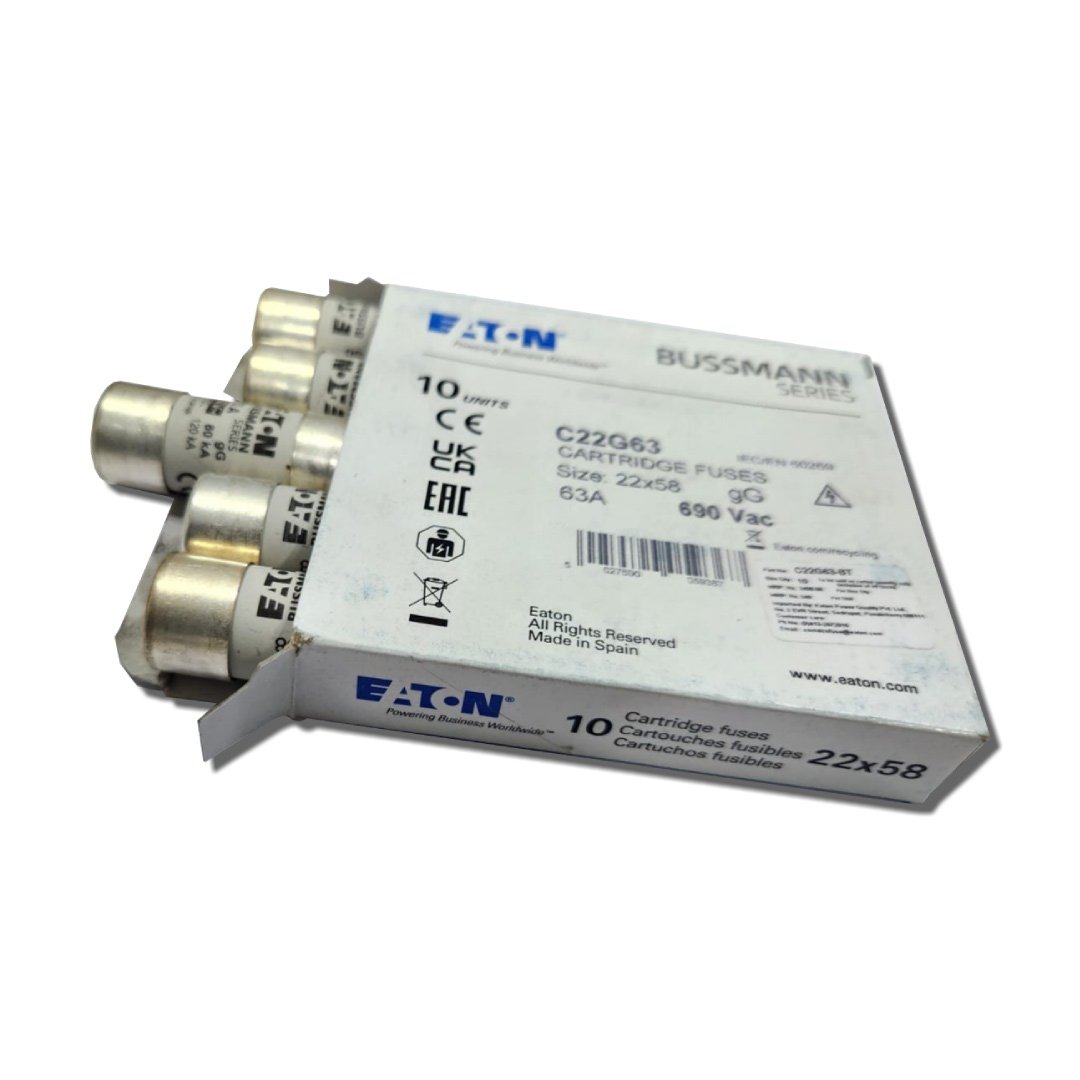

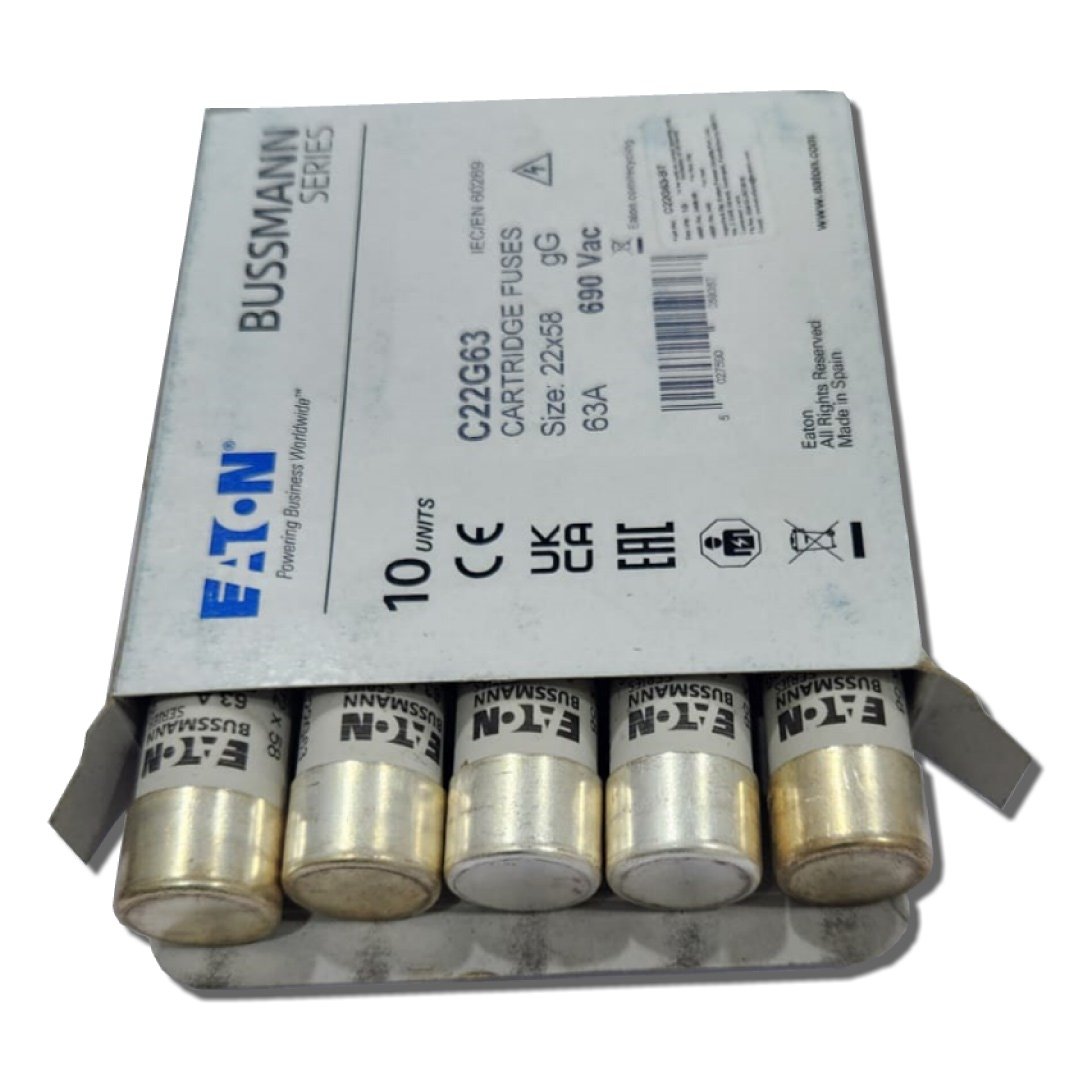

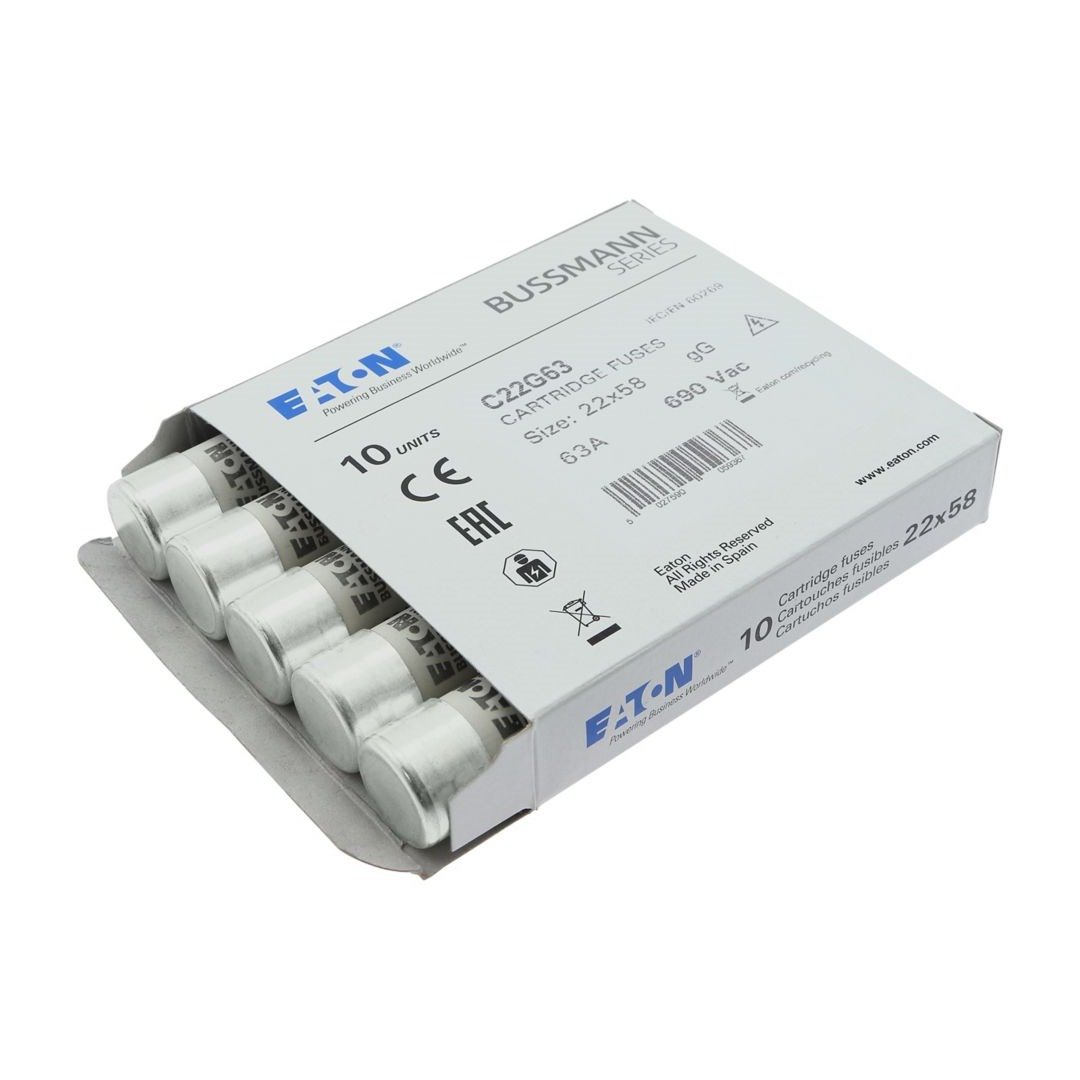

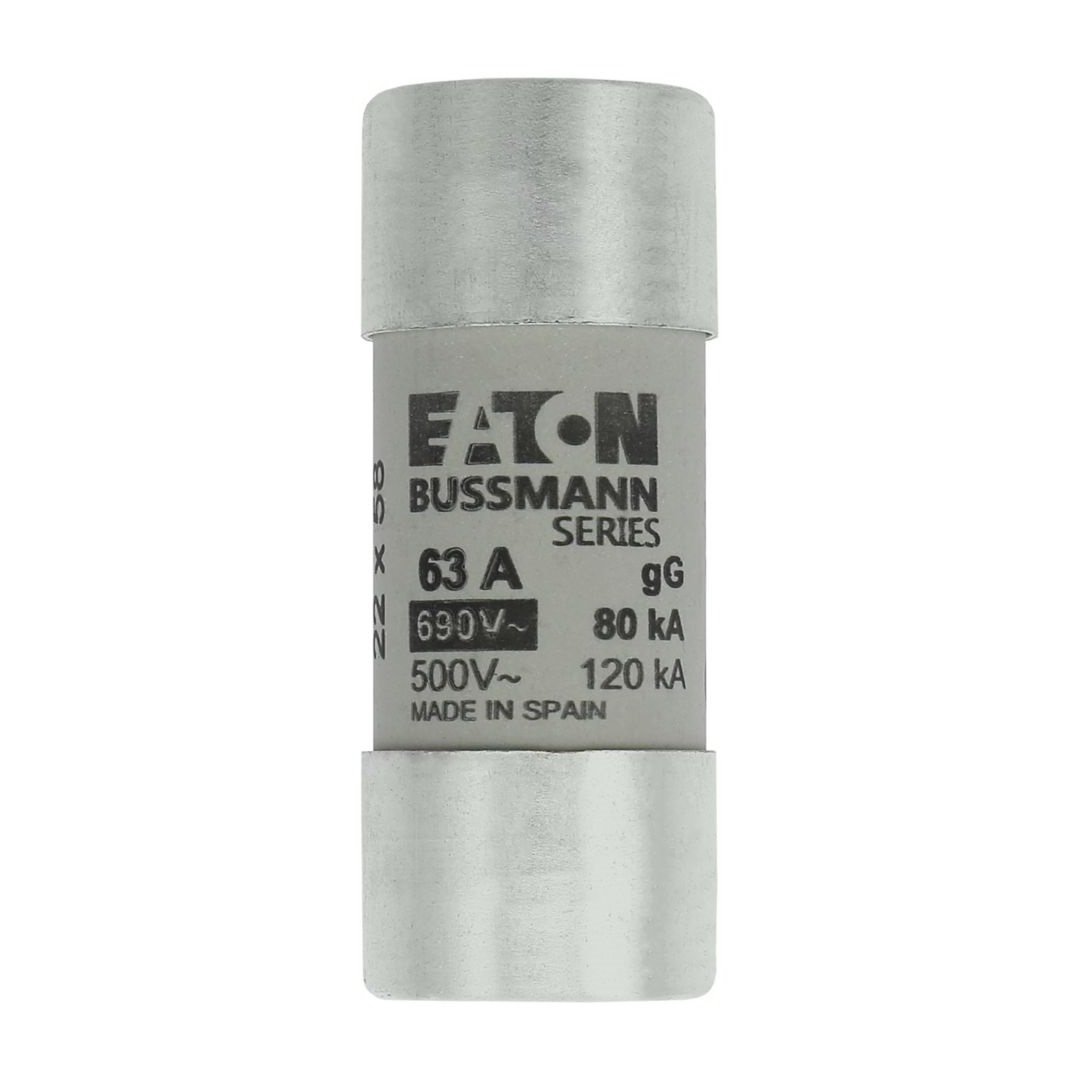

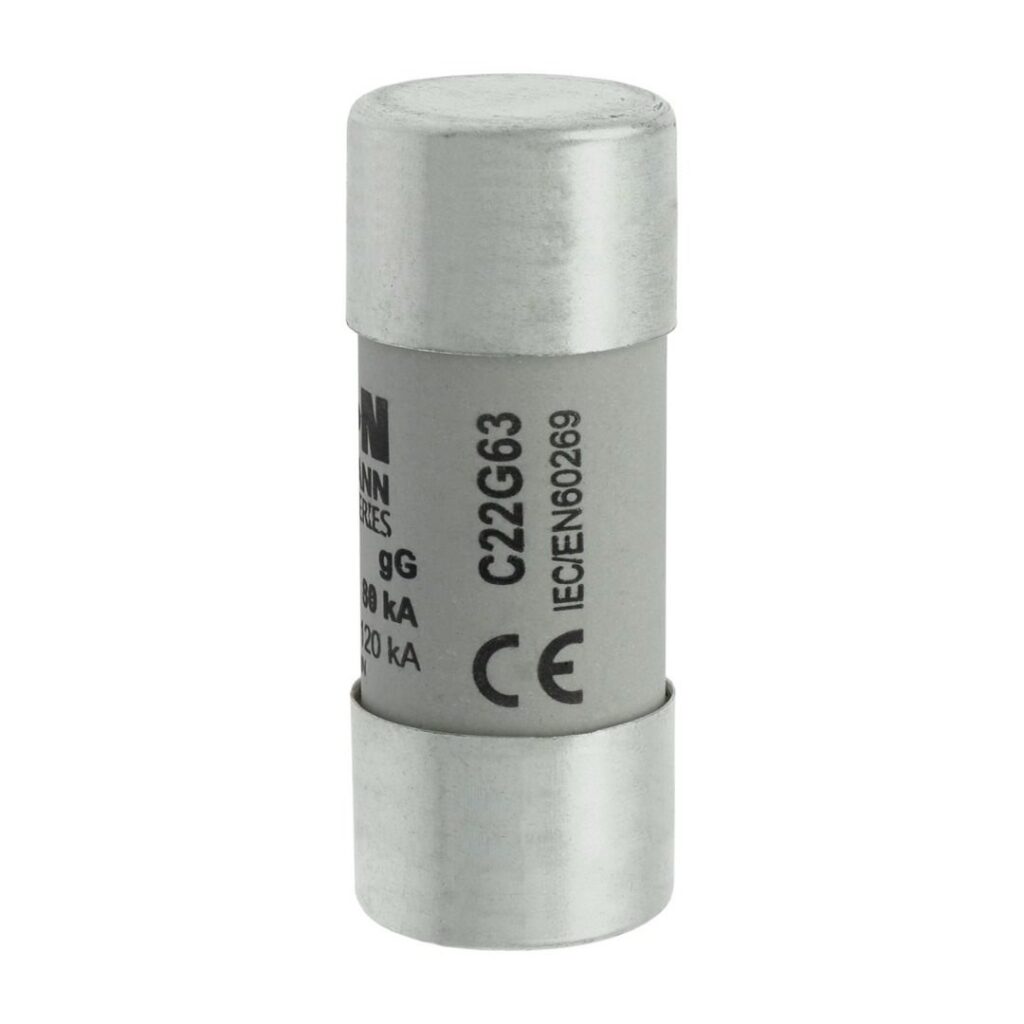

Eaton Bussmann Series Low Voltage Cylindrical Fuse C22G63


Model Code: CYLINDRICAL FUSE 22 x 58 63A GG 690V AC

The Eaton Bussmann Series C22G63 fuse is designed for modern electrical systems, providing robust protection and high performance. This low voltage cylindrical fuse measures 22 x 58 mm and offers reliable safeguarding for various electrical circuits and components. Its construction and rating make it suitable for a range of industrial and commercial applications, ensuring operational efficiency and safety.

Technical Specifications

  • Voltage Rating: 690 Volts AC
  • Current Rating: 63 Amps
  • Breaking Capacity: 80 kA
  • Dimensions: 22 x 58 mm
  • Fuse Class: gG/gL
  • Indicator: Without Indicator

Key Features

High Breaking Capacity

The C22G63 cylindrical fuse boasts an impressive breaking capacity of 80 kA. This feature ensures that the fuse can safely interrupt substantial overcurrents, preventing damage to electrical equipment and minimizing the risk of electrical fires or explosions.

Versatile Compatibility

Designed to fit seamlessly with the CH22 Modular Fuse Holder, the C22G63 offers easy integration into existing electrical systems. Its compatibility with standard 22 x 58 mm fuse holders allows for straightforward installation and replacement, reducing downtime and maintenance costs.

Robust Construction

Constructed with high-quality materials, the Eaton Bussmann C22G63 fuse delivers durability and long service life. Its cylindrical form factor provides a compact and efficient solution for circuit protection, ideal for tight spaces and high-density installations.


The Eaton Bussmann C22G63 cylindrical fuse is suitable for a broad spectrum of applications, including:

  • Industrial Control Panels: Protects motors, transformers, and other critical components in industrial settings.
  • Commercial Electrical Systems: Ensures safety in commercial buildings by safeguarding distribution panels and lighting circuits.
  • Renewable Energy Systems: Offers reliable protection for inverters and other components in solar and wind energy systems.

Safety and Compliance

Adhering to stringent industry standards, the C22G63 fuse meets class gG/gL requirements, providing comprehensive protection for a wide range of electrical equipment. Its high breaking capacity and voltage rating contribute to a safer and more reliable electrical infrastructure.

Why Choose the Eaton Bussmann C22G63?

Opt for the Eaton Bussmann Series C22G63 cylindrical fuse to ensure superior protection and efficiency in your electrical systems. Its high breaking capacity, robust construction, and versatile compatibility make it an ideal choice for demanding applications. When safety and performance are paramount, the C22G63 delivers dependable protection, minimizing risks and enhancing the longevity of your electrical components.
