Description
Product Specifications | Details |
---|---|

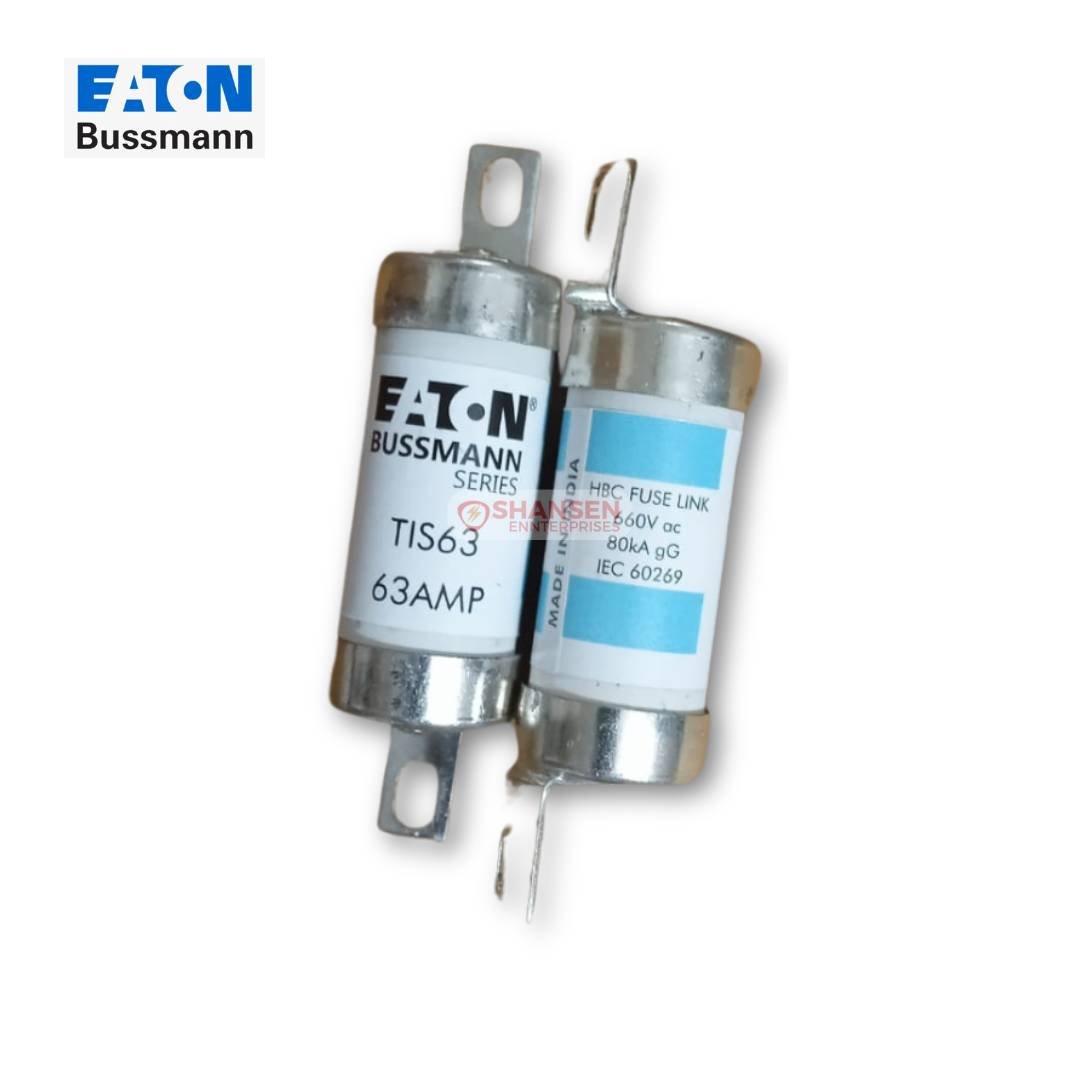

Type | Fuse |
Application | General industrial applications |
Amperage Rating | 63 A |
Fitted with | Offset bolted tags |
Fuse size | BS88/A3 |
Current type | AC/DC |
Mounting dimension | M5 |
Center-to-center distance of connections | 73 mm |
Breaking capacity | 80 kA |
Rated switching capacity | 80 kA |
Rated voltage AC | 660 V |
Rated voltage DC | 460 V |
Class | Class gG/gL |
Fuse type | TIS |
Utilization category | gL/gG (cable protection/equipment protection) |
Color | None |
Interrupt rating | 80 kAIC |
Fuse indicator | None |
Insulated metal gripping lugs (IMGL) | No |
Connection | 73 mm fixing centre |
Construction | BS88/A3 |
Construction size | A3 |
Fuse shape | Offset bolted tags |
Voltage type | AC/DC |
Suitable for | CM63F Camaster fuse holder, RS63 Red spot fuse holder |
Voltage rating | 690 V |
Fuse system (IEC 60269) | Fuse system E |
