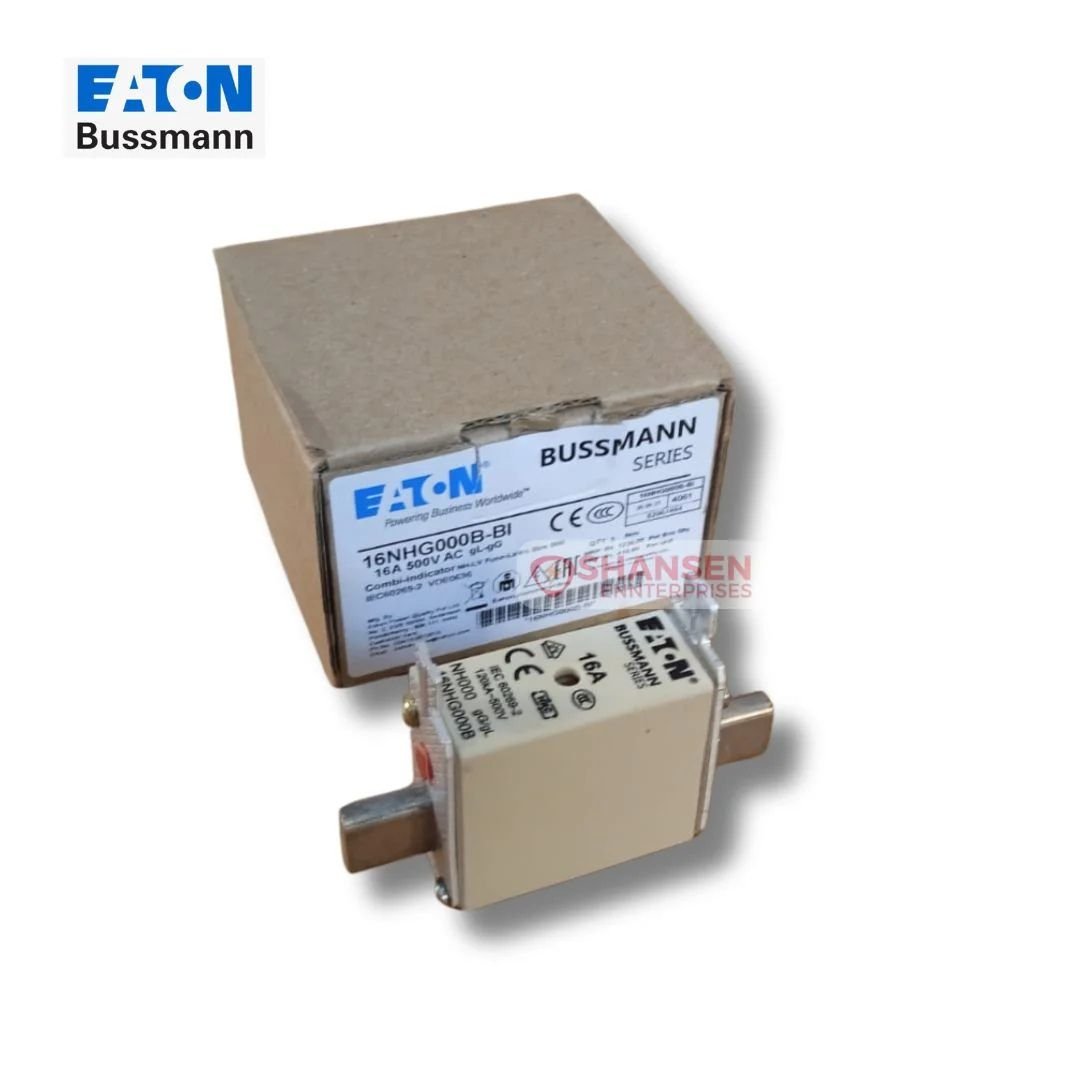

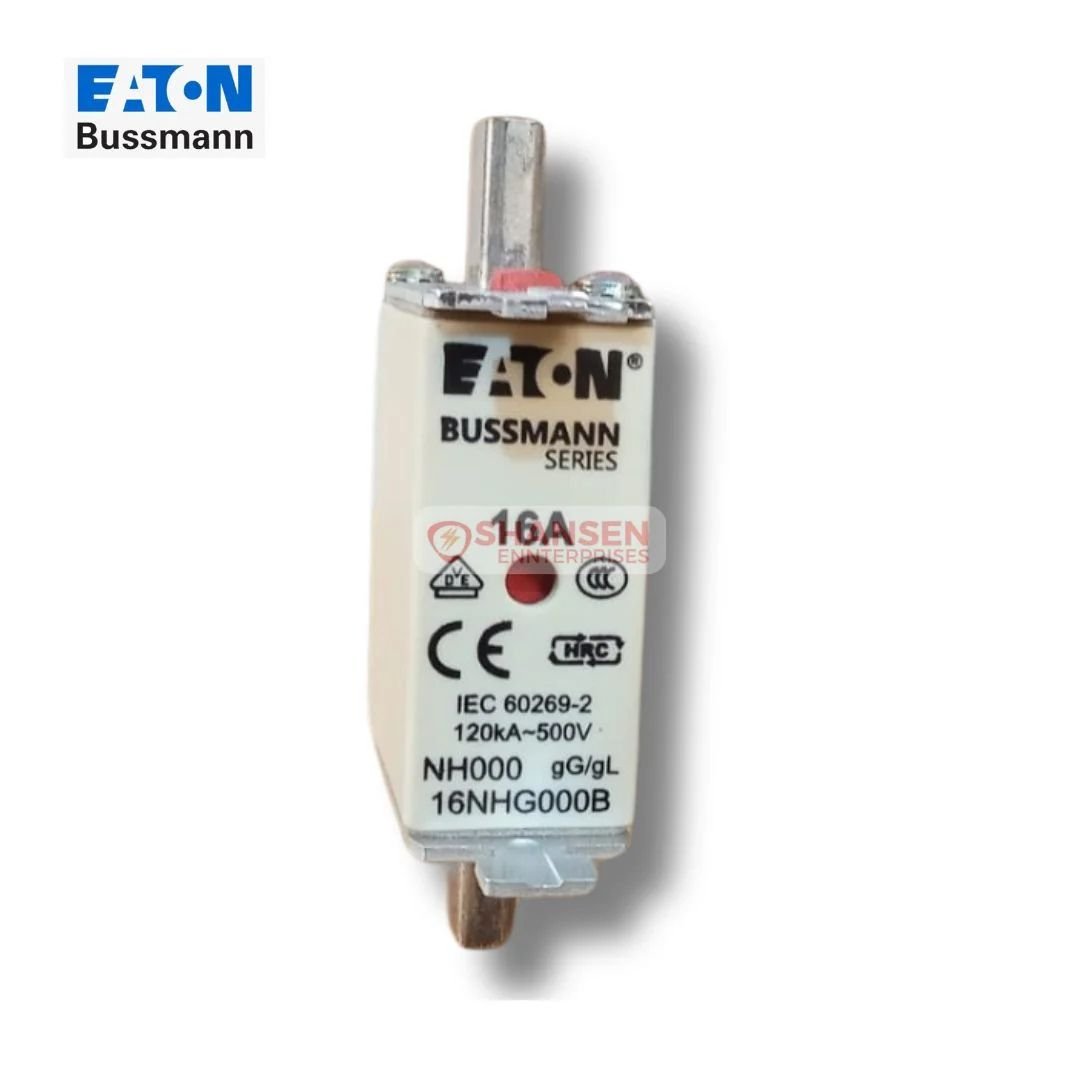

Eaton Bussmann Series Low Voltage NH Fuse 16NHG000B-690

The Eaton Bussmann Series Low Voltage NH Fuse 16NHG000B-690 is a premium-quality protection device engineered for reliable performance in low-voltage power distribution systems. With its 690V AC rating and 16A current capacity, this fuse provides superior circuit protection against overloads and short circuits. Built with a ceramic square-body and knife blade contact, it ensures robust durability, efficient heat dissipation, and long operational life. The integrated combination fuse status indicator simplifies maintenance and inspection, while RoHS compliance and CE marking reinforce its adherence to global safety standards. Designed to meet IEC 60269 and DIN 43620, this fuse is trusted for industrial panels, switchgear, and distribution applications.

⚙️ Key Features at a Glance

• Voltage Rating: 690V AC

• Current Rating: 16A

• Breaking Capacity: 120 kAIC

• Fuse Class: gG/gL (Class C)

• Fuse Size: NH000 (Size 000)

• Body Material: High-grade Ceramic

• Connection Type: Blade / Knife Contact

• Fuse Indicator: Combination status indicator

• Dimensions: 79mm (L) × 21mm (W) × 51mm (H)

• Weight: 151g (approx.)

• Certifications: IEC 60269-1, IEC 60269-2, DIN 43620

• Compliances: RoHS, CE Marked

• Suitable Accessories: Microswitch 170H0236, EBF/EBV/EBH Fuse Rails & Disconnectors

💡 Why Choose This Product

Eaton Bussmann’s NH fuse technology ensures unmatched reliability and consistency in electrical protection. The 16NHG000B-690 model combines high fault-clearing capacity with compact design, making it ideal for industrial switchboards and energy systems. Its 690V operation and 120kA breaking capacity provide exceptional protection, even in high short-circuit conditions. The live gripping lug design enhances safety during installation and maintenance, ensuring operational efficiency with minimal downtime.

🧰 Ideal For

• Electrical Distribution Panels

• Industrial Switchgear and Control Panels

• Renewable Energy Systems (Solar, Wind)

• Motor Protection Circuits

• Power Factor Correction Units

• OEM Equipment Integration

📞 Request a WhatsApp Quote

Shansen Enterprises is an authorized channel partner of ABB, Eaton Bussmann, and SECURE Meters, delivering 100% customer satisfaction with prompt technical support.
We offer pan-India delivery and reliable after-sales assistance.
