Description
| General Specifications | Details |
|---|---|

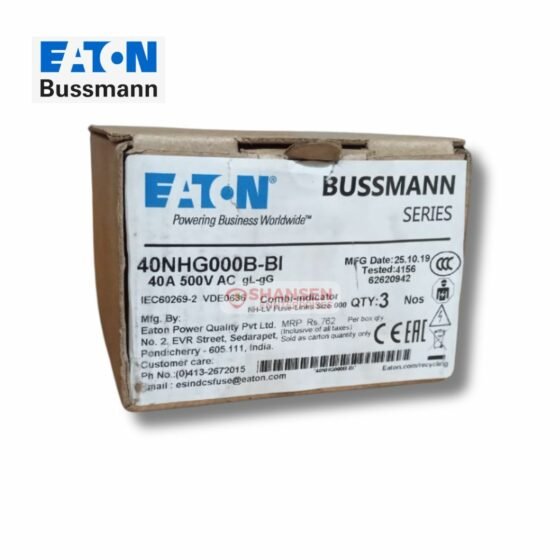

| Product Name | Eaton Bussmann series low voltage NH Fuse |
| Catalog Number | 40NHG000B |
| Model Code | NH FUSE 40A 500V SIZE 000 GG MGL |
| UPC | 051712625821 |
| EAN | 5027590480253 |
| Product Length/Depth | 79 mm |
| Product Height | 51 mm |
| Product Width | 21 mm |
| Product Weight | 119.333 g |
| Compliances | RoHS Compliant, CE Marked |
| Certifications | IEC 60269-1, IEC 60269-2, DIN 43620 |
| Product Specifications | Details |
|---|---|
| Type | Fuse |
| Special Features | Live gripping lug |
| Application | Industrial, Utilities, Solar, Wind |
| Amperage Rating | 40 A |
| Fitted with | Metal gripping lugs |
| Fuse Size | NH000 |
| Current Type | AC |
| Breaking Capacity | 120 kA |
| Frequency Rating (Max) | 62 Hz |
| Frequency Rating (Min) | 45 Hz |
| Rated Switching Capacity | 120 kA |
| Rated Voltage AC | 500 V |
| Class | Class gG/gL |
| Fuse Type | Square body with knife blade contact |
| Utilization Category | gL/gG (cable protection/equipment protection) |
| Interrupt Rating | 120 kAIC |
| Fuse Indicator | Combination fuse status indicator |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Connection | Blade end |
| Construction | NH000 |
| Fuse Shape | Square body, Knife blade contacts |
| Voltage Type | AC |
| Suitable For | Microswitch 170H0236, EBF Vertical fuse rail, EBV Vertical fuse switch-disconnectors, EBH Size 000 Horizontal fuse switch-disconnectors |
| Material | Ceramic body |
| Quantity | 3 |
| Voltage Rating | 500 V |
