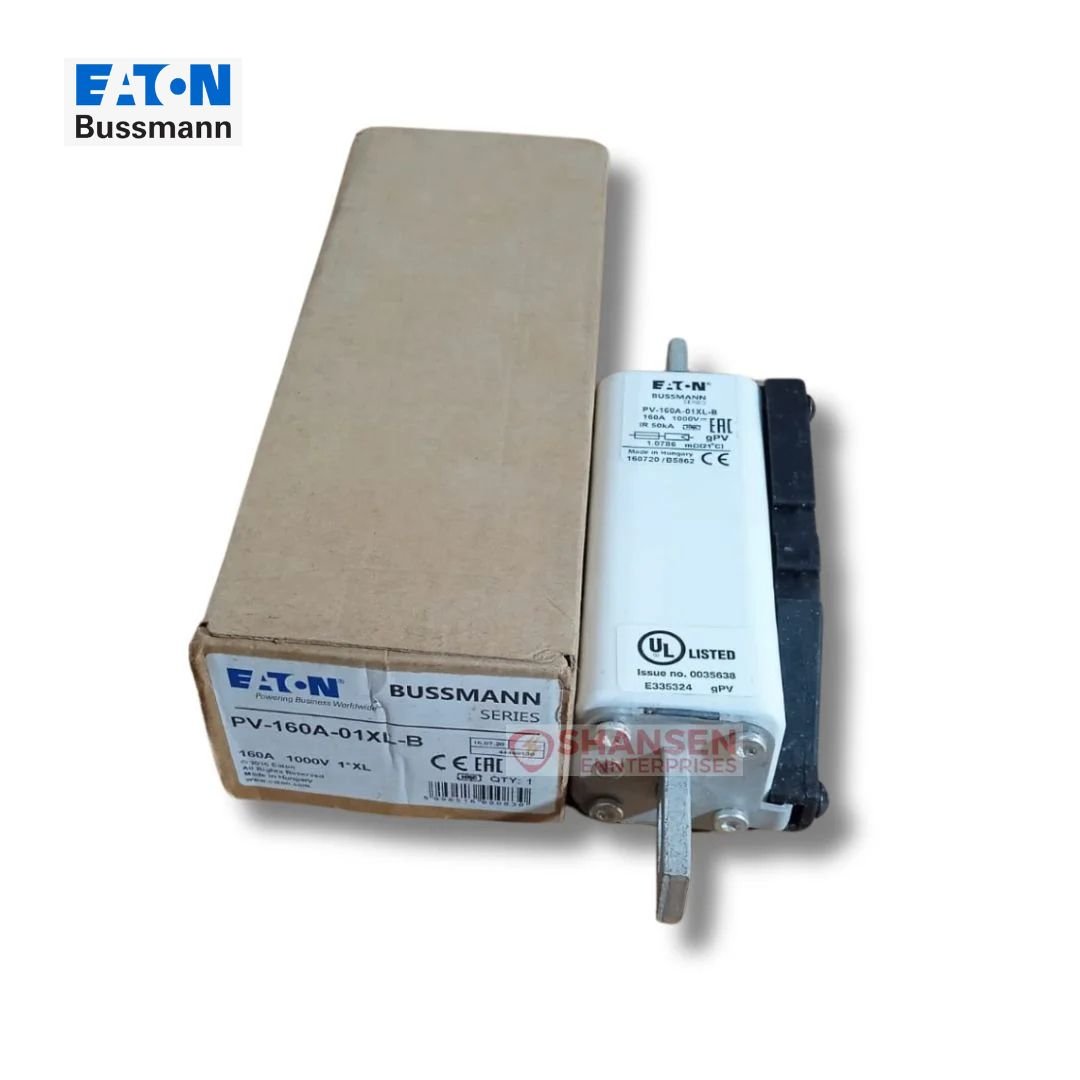

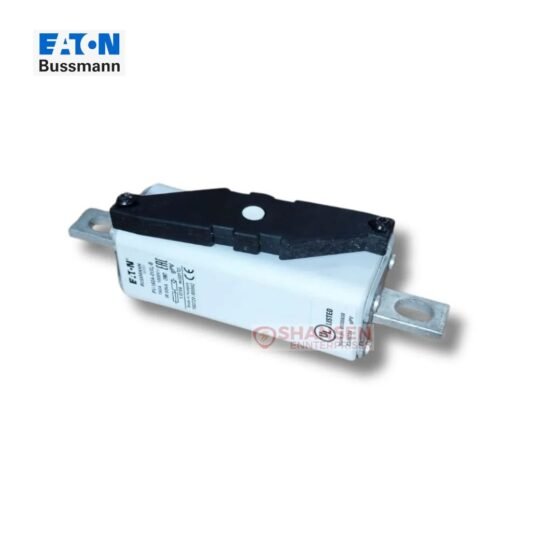

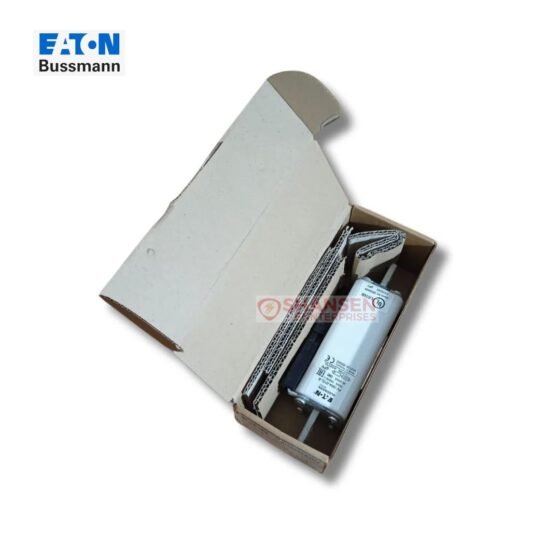

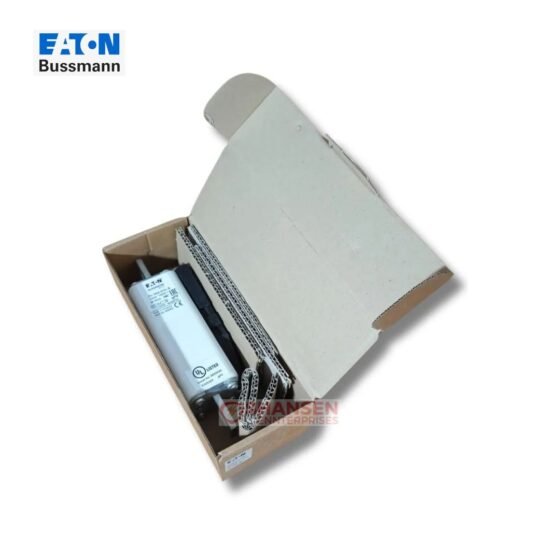

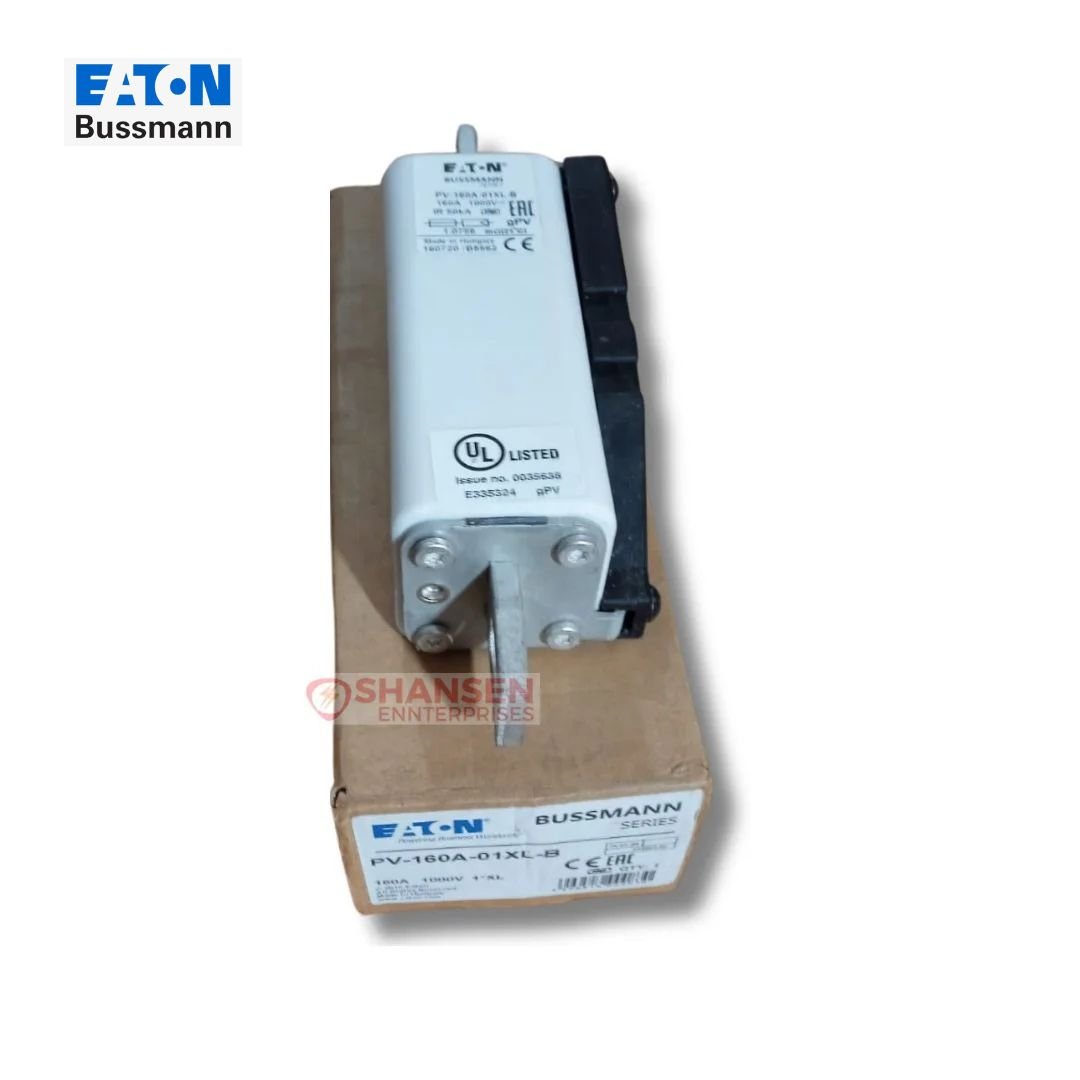

Eaton Bussmann Series Photovoltaic Fuse PV-160A-01XL

The Eaton Bussmann Series Photovoltaic Fuse PV-160A-01XL is a high-speed, gPV fuse-link engineered specifically for DC solar protection at up to 1000 Vdc. Rated 160 A with a robust 50 kA interrupt capability, it’s built on the proven 01XL platform with a ceramic body for superior arc quenching and thermal stability. Blade connections simplify secure installation, while the built-in indicator makes maintenance faster by showing fuse status at a glance. Certified to IEC 60269 and UL/CSA, and compliant with CE and RoHS, this fuse helps EPCs, panel builders and O&M teams meet safety and performance targets across utility-scale and commercial PV systems. With low watt loss (44 W) and compatibility with the SD1XL-S-PV base, the PV-160A-01XL delivers reliable circuit protection that keeps strings, combiner boxes and inverters operating safely and efficiently.

Key Features at a Glance

• 160 A, 1000 Vdc gPV high-speed fuse-link

• Interrupt rating: 50 kAIC

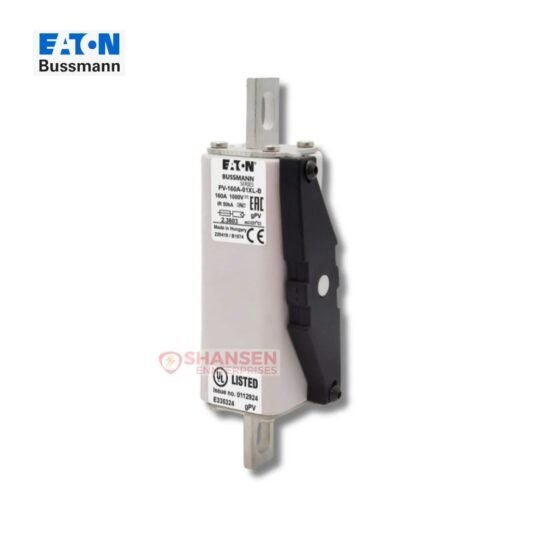

• Body/type: PV-01XL (01XL); blade connections

• With indicator for quick blown-fuse identification

• Ceramic body; white color

• Low watt losses: 44 W

• Dimensions (body): 47 × 189 mm

• Product size: 218 (L) × 84 (W) × 61 (H) mm; weight 840 g

• Compliances: CE Marked, RoHS Compliant

• Certifications: IEC 60269, UL Listed, CSA Certified

• Compatible base: SD1XL-S-PV (XL fuse base)

Why Choose This Product
Eaton Bussmann is a benchmark for reliable overcurrent protection. The PV-160A-01XL couples high DC performance with global certifications, clear visual indication, and rugged ceramic construction. It helps reduce downtime, simplifies maintenance, and ensures compliance in demanding PV environments.

Ideal For

• PV string and array protection

• Combiner boxes & DC distribution panels

• String/central inverter input protection

• Utility-scale and C&I rooftop/ground-mount solar
