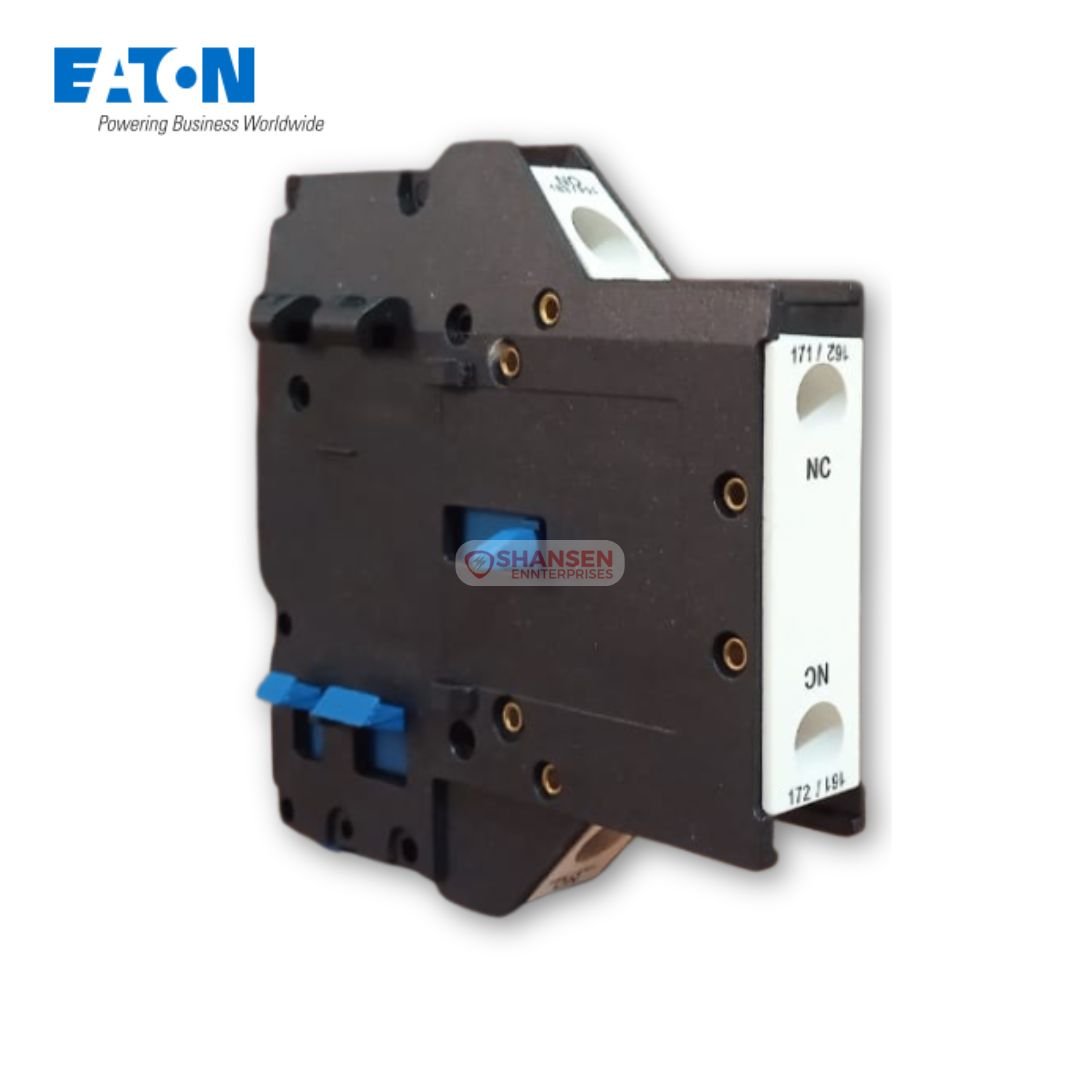

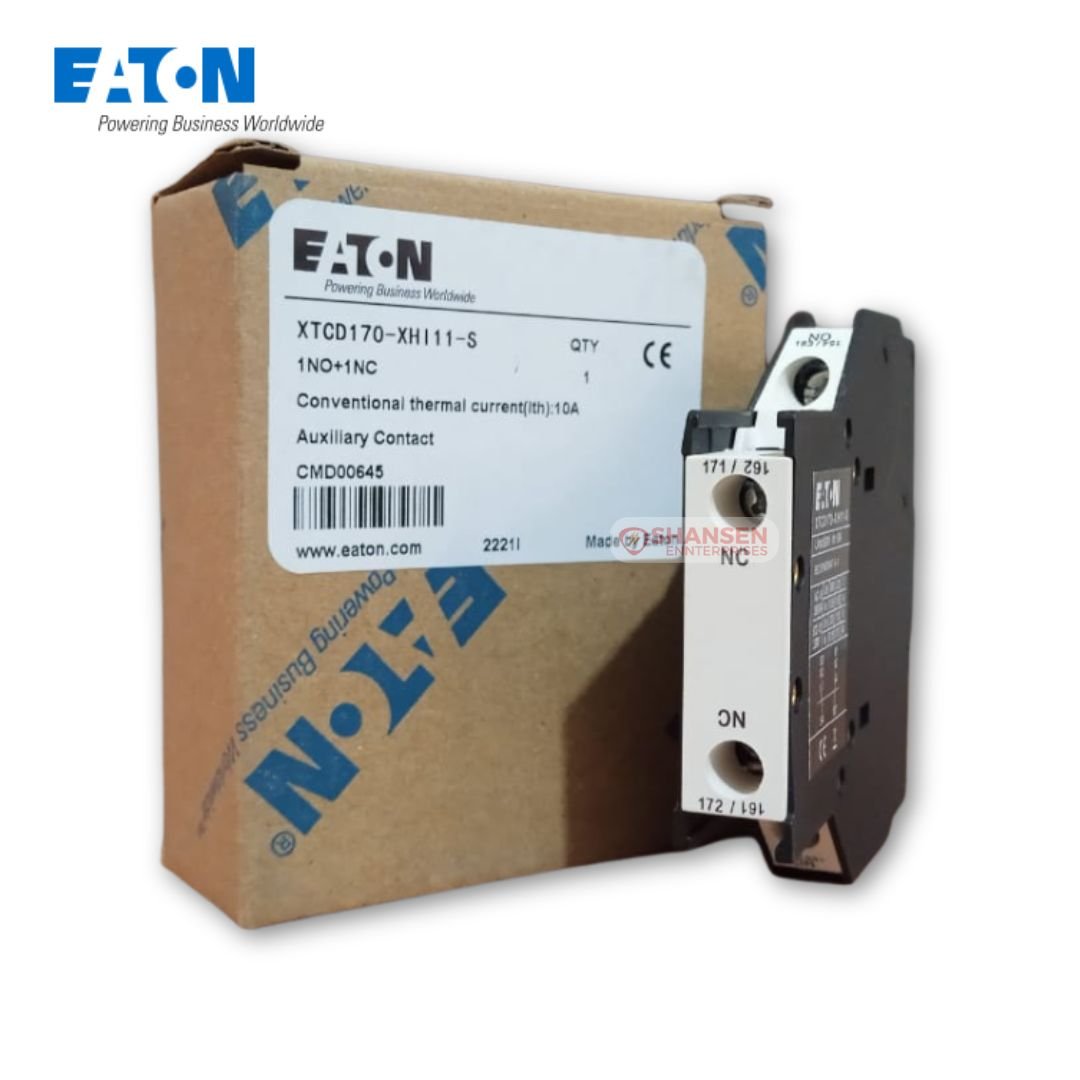

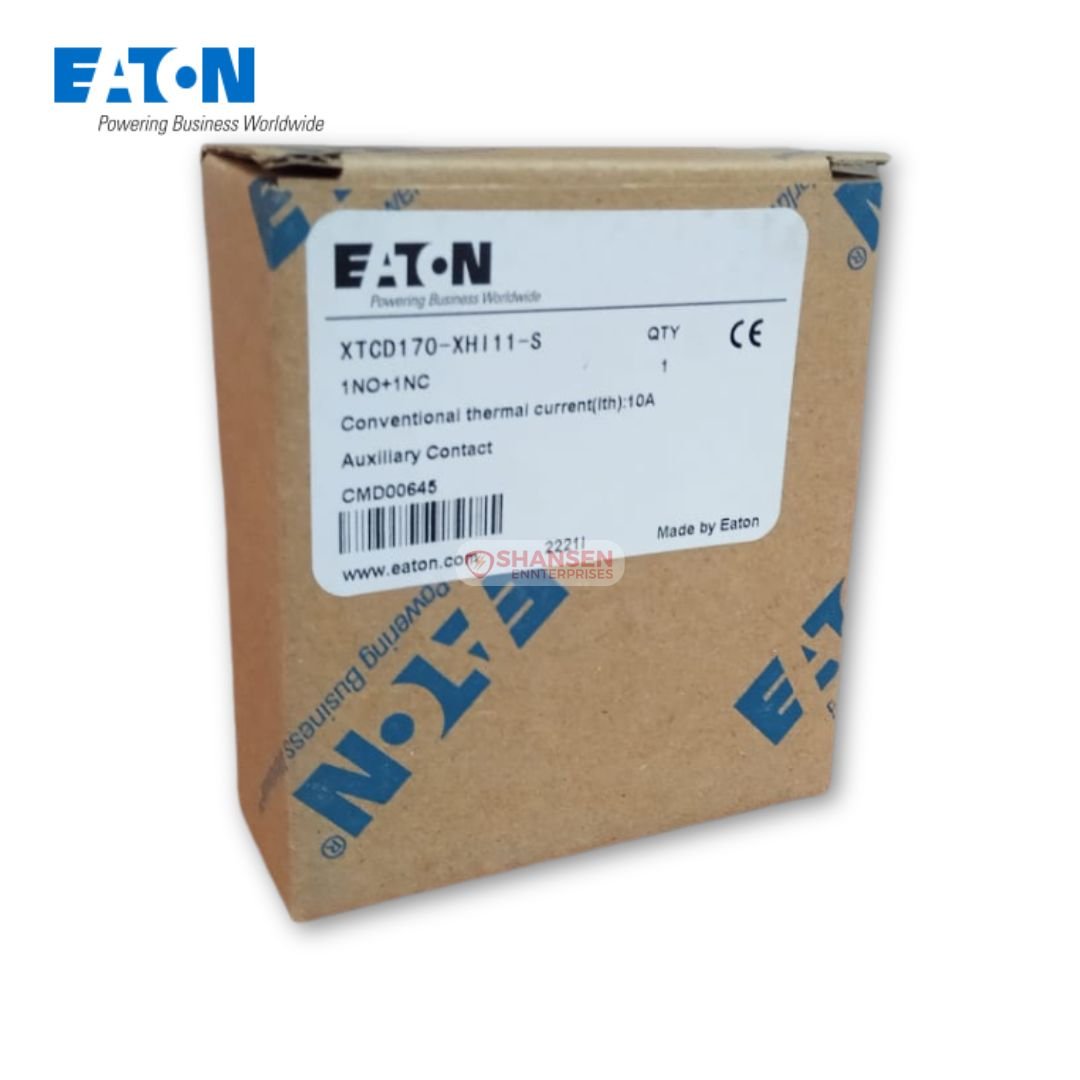

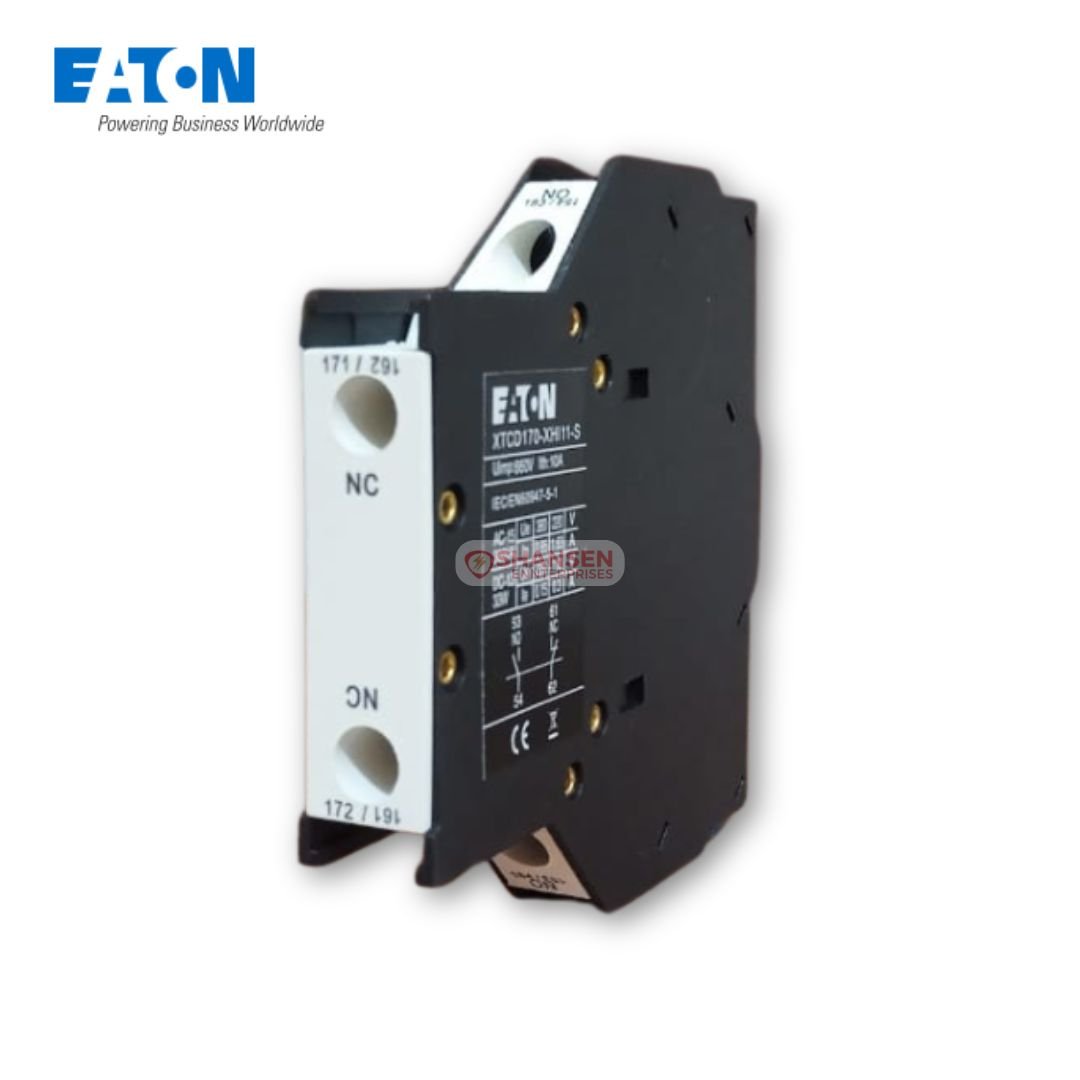

Eaton XTCD170-XHI11-S Auxiliary Contact Module

Boost the flexibility and safety of your Eaton D-Line contactor systems with the XTCD170-XHI11-S auxiliary contact module. This top-mounted accessory adds an additional 1 NO + 1 NC contact configuration, tailored for XTCD contactors up to frame size XTCD170. Built to meet international IEC/EN standards, it ensures long operational life and reliable signaling in demanding industrial conditions.

Key Features at a Glance

• Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)

• Mounting style: Top-mounted (clip-on design)

• Rated insulation voltage: 690 VAC

• Impulse withstand voltage: 6000 VAC (Uimp)

• Thermal current: 10 A (up to 60 °C ambient)

• Switching capacity (AC-15): 1.63 A @ 220 VAC | 0.95 A @ 380 VAC

• Switching capacity (DC-13): 0.3 A @ 110 VDC | 0.15 A @ 220 VDC

• Terminal type: Screw terminals

• Lifespan: ~500 million mechanical / ~100 million electrical operations

• Compliance: IEC/EN 60947-5-1

• Fits: Eaton D-Line XTCD contactors up to 170 A

Why Choose This Product
The XTCD170-XHI11-S module is an efficient and robust solution to enhance control and feedback functions in your Eaton XTCD systems. With both NO and NC contacts, it’s ideal for expanding the logical capabilities of your panel design. The snap-on, top-mounted form factor makes installation simple and space-saving. Rated for high voltage and endurance, it performs reliably even under heavy-duty switching cycles.

Ideal For

• Industrial automation systems

• Machine control panels

• Power distribution boards

• HVAC and building management systems

• Manufacturing and processing lines

Request a WhatsApp Quote Now
Shansen Enterprises is an Authorized Channel Partner for ABB and Eaton electrical components. 100% authentic products, trusted customer support, and fast response – reach out via WhatsApp now for your quote and experience our industry-trusted service!

FAQs

Is this module compatible with all Eaton contactors?
No, it’s specifically designed for XTCD contactors up to frame size XTCD170.

Can this module be side-mounted?
No, it is strictly top-mounted and cannot be installed on the sides.

How many auxiliary modules can be added to the contactor?
A maximum of 2 side-mounted and 1 top-mounted module can be used simultaneously.
