Eaton XTOD18‑2.5 Bimetallic Thermal Overload Relay

Eaton XTOD18‑2.5 Thermal Overload Relay (CMD00693) – Reliable Motor Protection for 1.6–2.5 A Applications

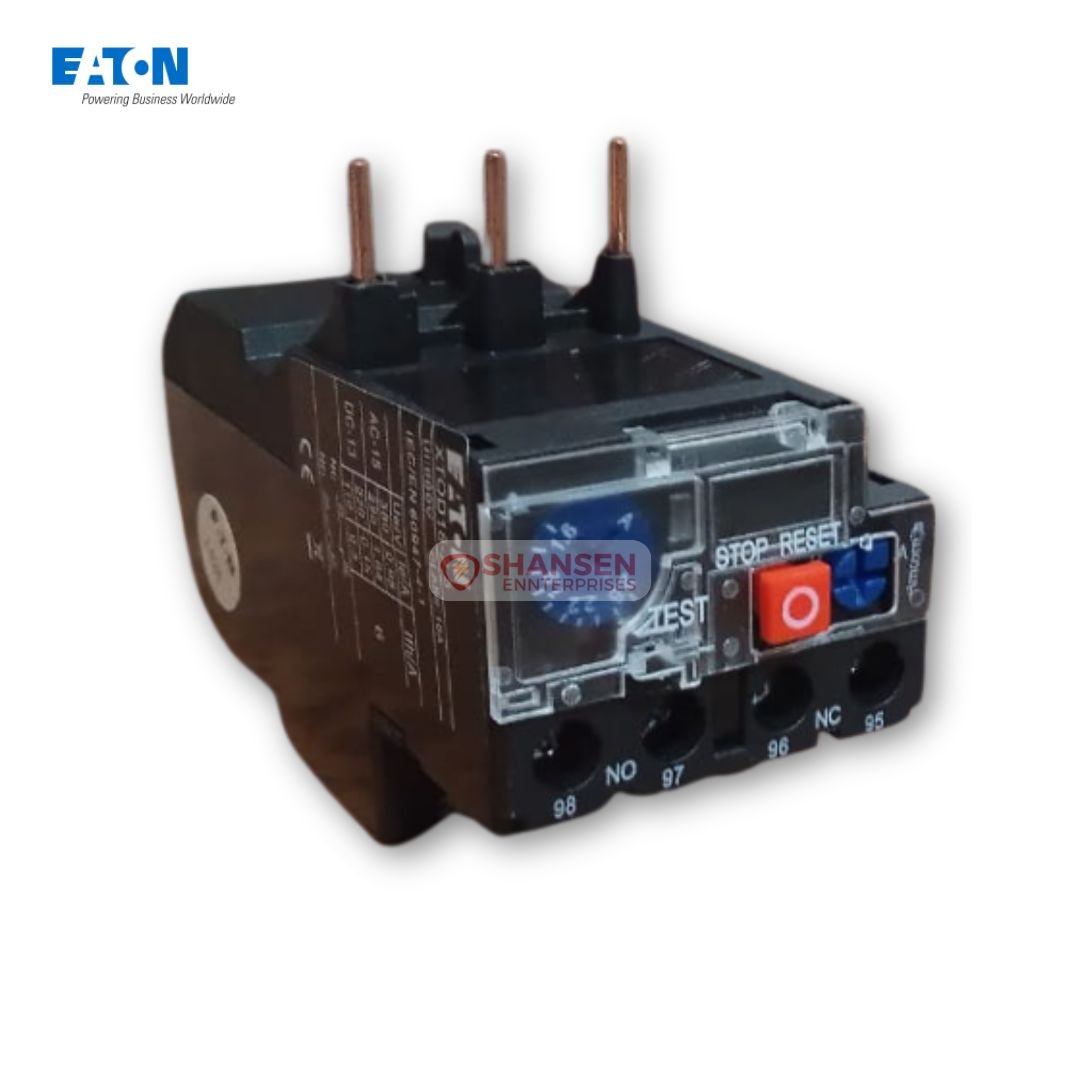

The Eaton XTOD18‑2.5 is a high-precision bimetallic thermal overload relay designed for safe, efficient, and adjustable protection of small three-phase motors. Engineered to pair seamlessly with Eaton’s XTCD6 to XTCD38 contactors, this compact unit ensures robust thermal overload and phase-loss protection. Whether you’re running fans, pumps, or conveyors, this relay keeps your system safe with reliable fault detection, a convenient reset/test interface, and globally recognized certifications.

Key Features at a Glance

• Adjustable Current Setting: 1.6–2.5 A for tailored motor protection

• Reset Options: Manual and automatic reset with test/release button

• Integrated Auxiliary Contacts: 1 NO + 1 NC for easy control/fault signaling

• Mounting Flexibility: Direct mount on XTCD6–38 series or panel/DIN rail with adapters

• Phase-Loss Protection: Prevents motor burnout due to phase imbalance

• Compliance & Safety: Certified IEC/EN 60947‑4‑1, CE, GB/T 14048.4, CCC

• Durable Design: Operates from –5 °C to +40 °C with IP20 enclosure

• Universal Compatibility: Supports both solid and stranded wires

Why Choose This Product

The Eaton XTOD18‑2.5 thermal overload relay delivers precision motor protection in a compact, easy-to-integrate package. Its adjustable trip range makes it highly versatile for motors in the 1.6–2.5 A bracket, and the integrated auxiliary contacts allow seamless communication with control circuits. Backed by global certifications and trusted Eaton reliability, it’s an ideal solution for preventing equipment damage and minimizing downtime in light industrial applications.

Ideal For

• Pumps

• Fans

• Compressors

• Packaging Machines

• Conveyor Systems

• HVAC Units

• Industrial Panels

• Light Automation Systems

Request a Quote on WhatsApp

As an Authorized Channel Partner of ABB and Eaton, Shansen Enterprises guarantees 100% genuine products and customer satisfaction. To get a quick quote or availability update, message us on WhatsApp today—our team is always ready to assist!
