Elite 300 Secure Meters

The Elite series is a multi-line three-phase digital panel meter for reliable and accurate true-RMS measurement of electrical parameters (voltage, current, power, frequency etc.), for industrial and commercial applications. It is available in two display types, LED display (Elite 100) with MODBUS communication, pulse output or alarm output as an option.

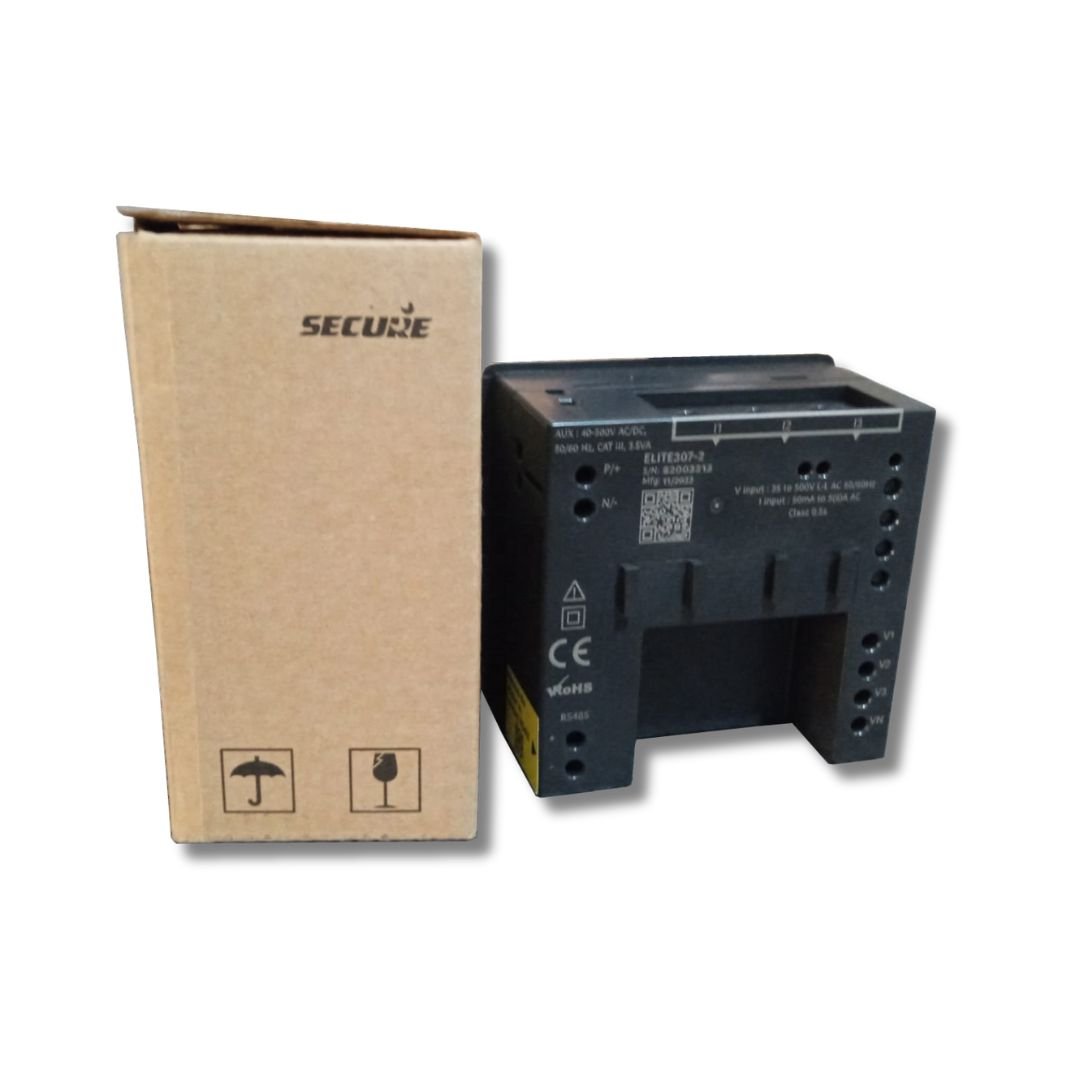

It has a unique pass through mechanism for current terminations which makes installation simple. The advantages of this pass through mechanism for current measurement are

  • No more risk of CT wire opening
  • No lugs required – reduces overall cost
  • No wire cut – reduces overall cost
  • Minimal burden
  • No screw tightening required during connection – which often damages the screw head
Tags: ,

1,455.00

Description

Electrical

LED

LCD

Connection type

Common product for 1P2W / 3P3W / 3P4W applications

Voltage

Measuring voltage range

20 V to 500 V

Nominal voltage range (Un)

57.5 V to 240 V (phase to neutral), 100 V to 415 V (phase to phase)

Over voltage

150% of Ucontinuous

Current

Measuring current range

50 mA to 6A

Nominal current range (In)

1 A or 5 A

Overload

150% of Icontinuous

Frequency range

45 to 65 Hz

Power factor

0.1 lag – Unity – 0.1 lead (for Iand Un)

Short- time over current

120 A for 1 sec

Auxiliary power supply range

40 to 300 V AC / DC

Accuracy Class

Voltage (V), Current (A)

±0.5% FS

Power

±0.5% FS (at unity PF)

Power factor (PF)

±0.005

Frequency (F)

±0.1 Hz

Active energy

Class 1.0 (acc. to IEC 62053-21)

Class 1.0 (acc. to IEC 62053-21)

Class 0.5s (acc. to IEC 62053-22)

Reactive energy

Class 2 (acc. to IEC 62053-23)

Temperature coefficient

Voltage, current: 0.05% / ºC

Burden

Voltage circuit

Current circuit

1 A:

Auxiliary supply

<4.5VA

<3.5VA



Mechanical LED

LCD

Bezel size

Panel cut-out

Tolerance

96 x 96 x 55 mm (70.8 mm with parking terminals)

92 x 92 mm

+0.5mm

Weight

Approx 320 grams

Enclosure

Flame Retardant Polycarbonate (as per UL 94 V0)

Terminals

Voltage/auxiliary

Combicon connectors: up to 2.5 mmcable

Current

Pass-through CT connection: up to 4 mmcable

Parking terminal for CT terminations (optional)

Digital output / RS-485 / alarm output

U-type / ring-type terminations: maximum up to 4 mmcable

Combicon connectors: up to 2.5 mmcable



Programming

LED

LCD

CT / PT(VT) ratio

Field-programmable primary and secondary values PT(VT) primary up to 2000 kV, CT primary up to 15000 A

RPM

Field-programmable pole (0-18) and slip (00.00 to 99.99%)

Alerts

Field-programmable high and low threshold values

Demand interval

Field-programmable: 1 to 60 minutes

Modbus registers

User programmable 25 modbus addresses via software (Modbus variants only)



Display

LED

LCD

Number of lines

4 lines

Number of digits

7 digits for energy parameters, 5 digits for instantaneous parameters

Energy resolution

Up to 0.01 resolution

Character size

14.2 mm x 8.1 mm

10.2 mm x 6.3mm

Bar-graph

Yes (7 steps up to 150%)



Environmental

LED

LCD

Protection degree (as per IEC 60529)

Front fascia: IP 54 default, terminals: IP 20

ESD

IEC / EN 61000-4-2 (in accordance to standard IEC / EN 61326)

EFT

IEC / EN 61000-4-4 (in accordance to standard IEC / EN 61326)

Insulation

CAT II, 4 kV RMS 50 Hz for 1 minute

Impulse withstand

6.5 kV

Temperature

-10°C to +60°C (operating); -25°C to +80°C (storage)

Humidity

95% non condensing

Flame retardation

UL 94 V0

Maximum altitude

2000 m



Compliance

LED

LCD

Standards

IEC / EN 61557-12, IEC / EN 62053-21, IEC / EN 62053-22 & IEC / EN 62053-23 & IEC / EN 62053-31, IS13779, IS14697

Safety: IEC / EN 61010-1; IEC / EN 61010-2-030



Options

LED

LCD

RS-485

Modbus: half-duplex, floating point, refresh rate: 500 ms

User configurable – Baud rate: 1200 to 19200 bps (default 9600 bps ); Parity bit: None, Odd, Even; Stop Bit: 1, 2

Pulse output (Single)

24V to 240V DC or 48 to 240V AC @ 100 mA. Pulse width option of 80 / 240 / 300 ms

Alarm output (Single)

N/O type, voltage rating 230V AC @ 2A. Pulse width option of 80 / 240 / 300 ms

Additional information

Use cases & Applications

HV and MV switchgear panels
Power control centre (PCC) panels
Motor control centre (MCC) panels
LV distribution panels
Control and relay panels
Building Management Solution (BMS)
Test benches
Laboratory equipmen

Key Points

LED and LCD display product range
Wide-range AC / DC auxiliary power supply (40-300V AC/DC)
Unique pass through mechanism for current termination
User configurable alert thresholds for various parameters
High level of protection degree (IP54)
THD measurement up to for voltage and current, up to the 31st harmonic
Touch-sense keys for ease of use – display access & configuration
Option for RS-485, pulse output or alarm output
Configurable modbus registers for ease of integration(RS485 variants only)
