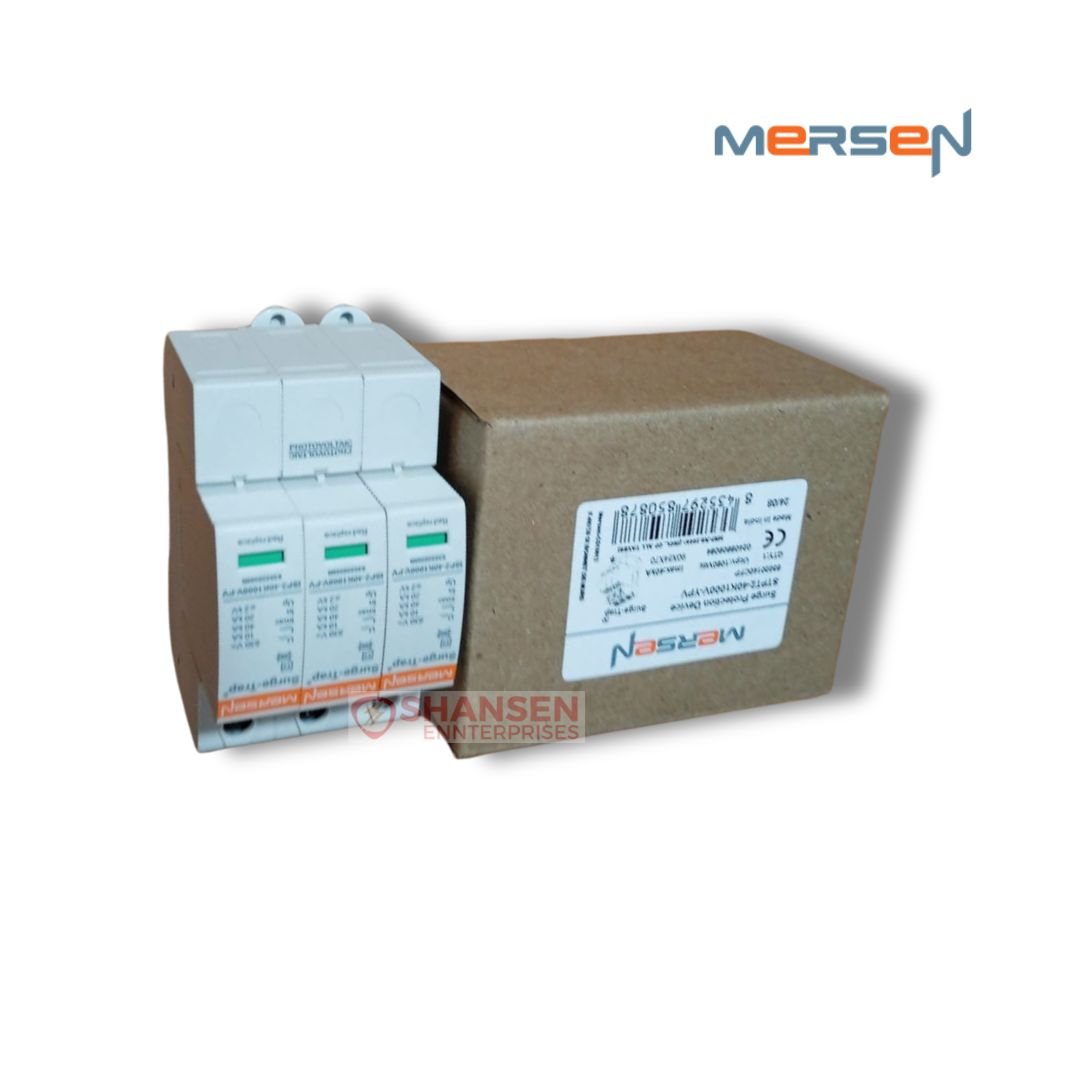

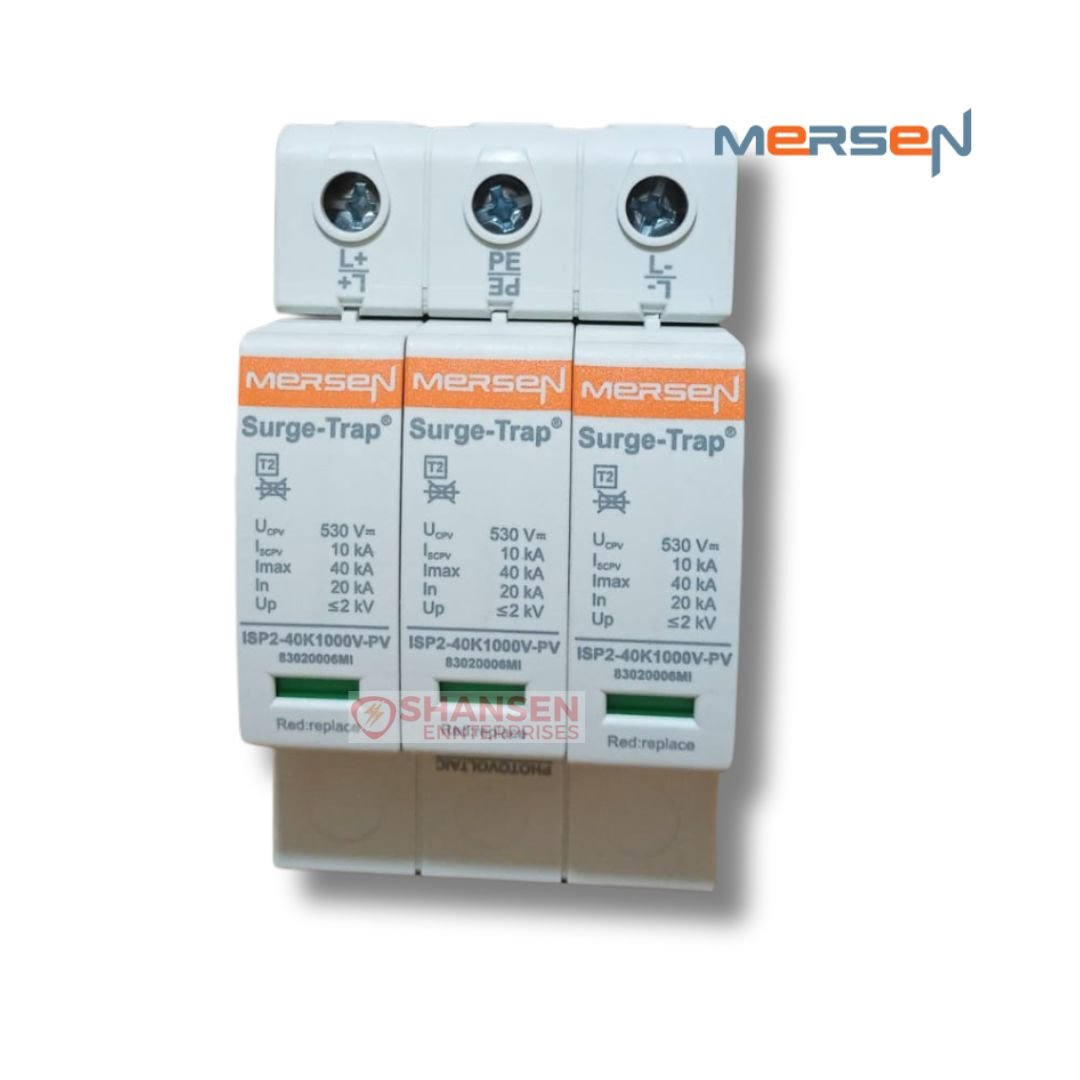

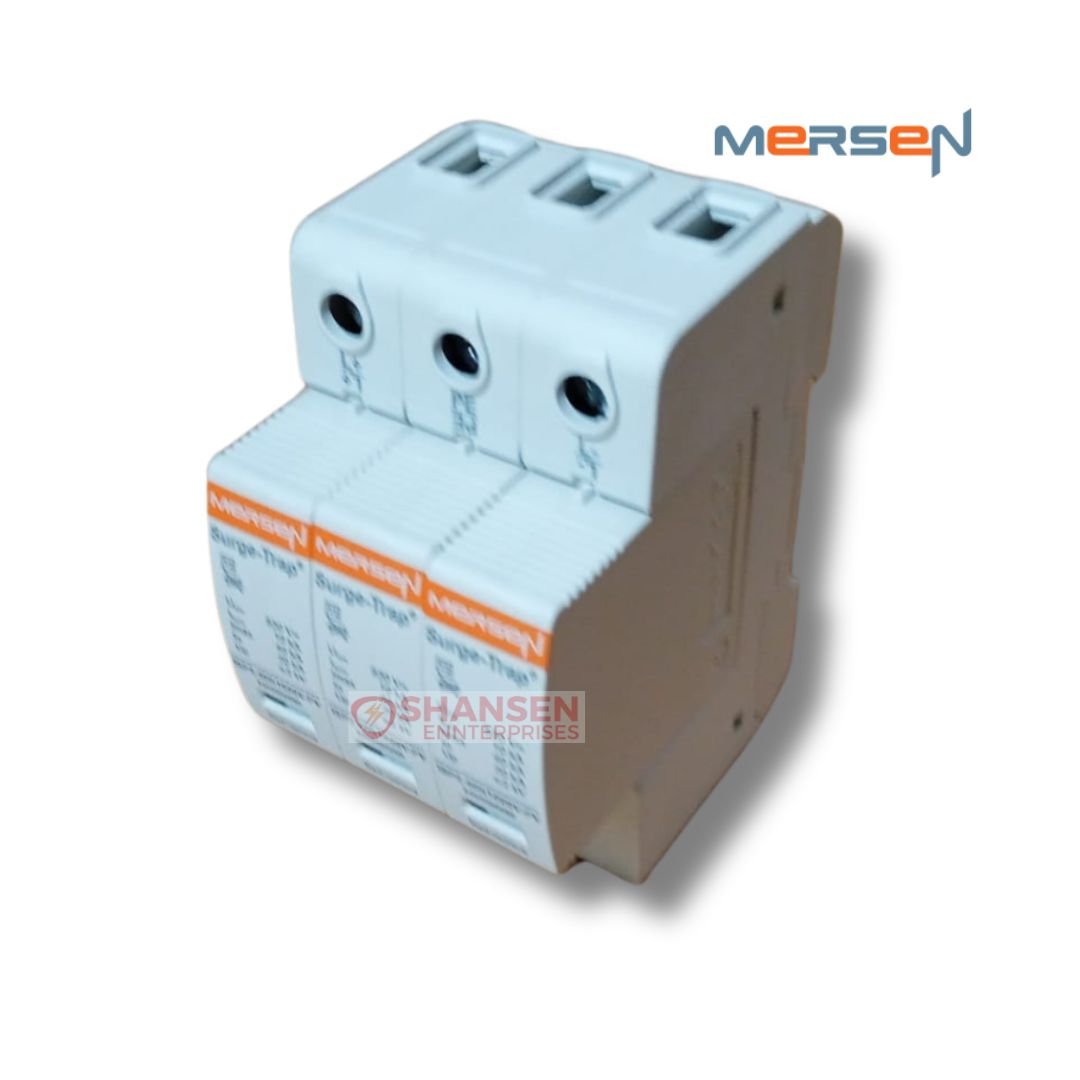

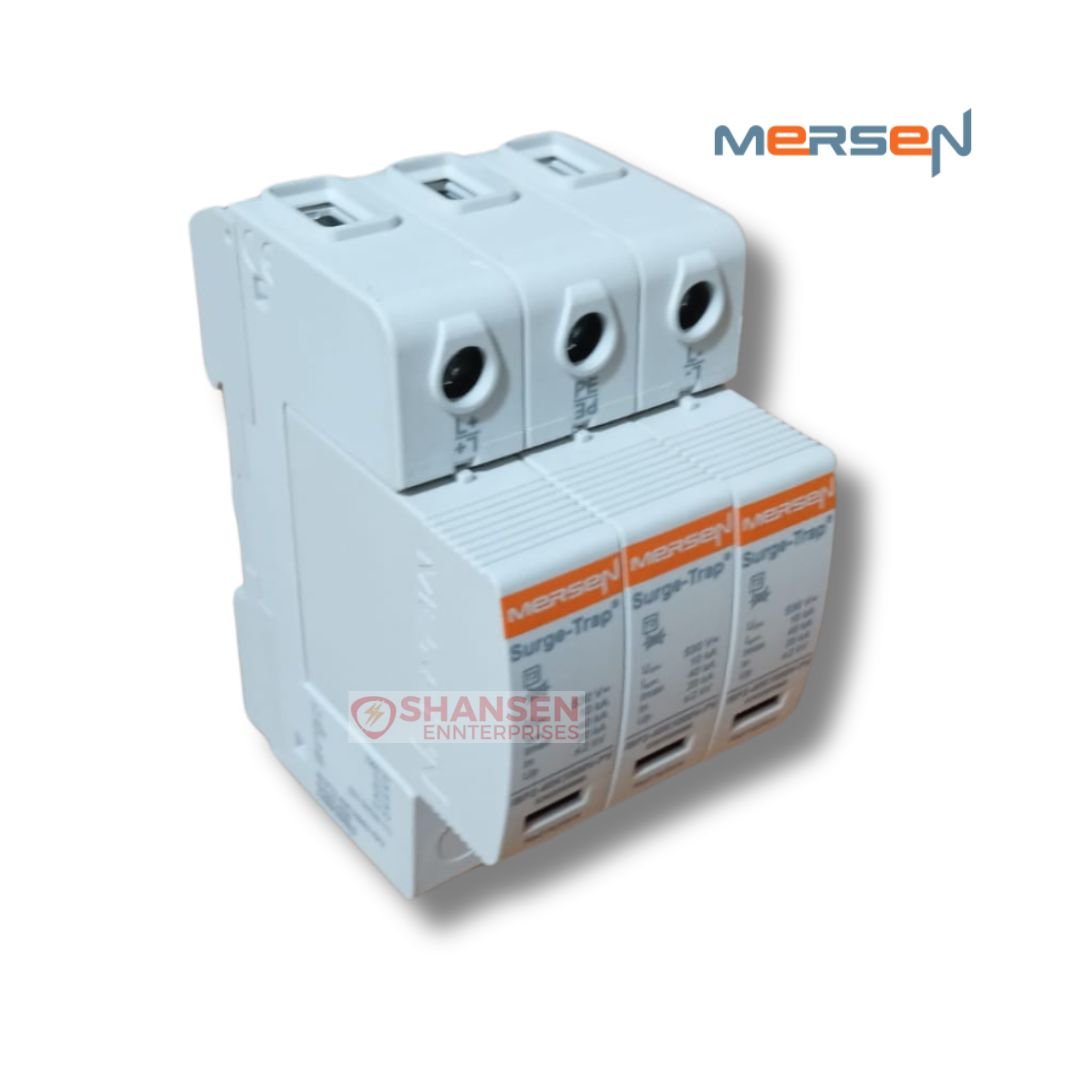

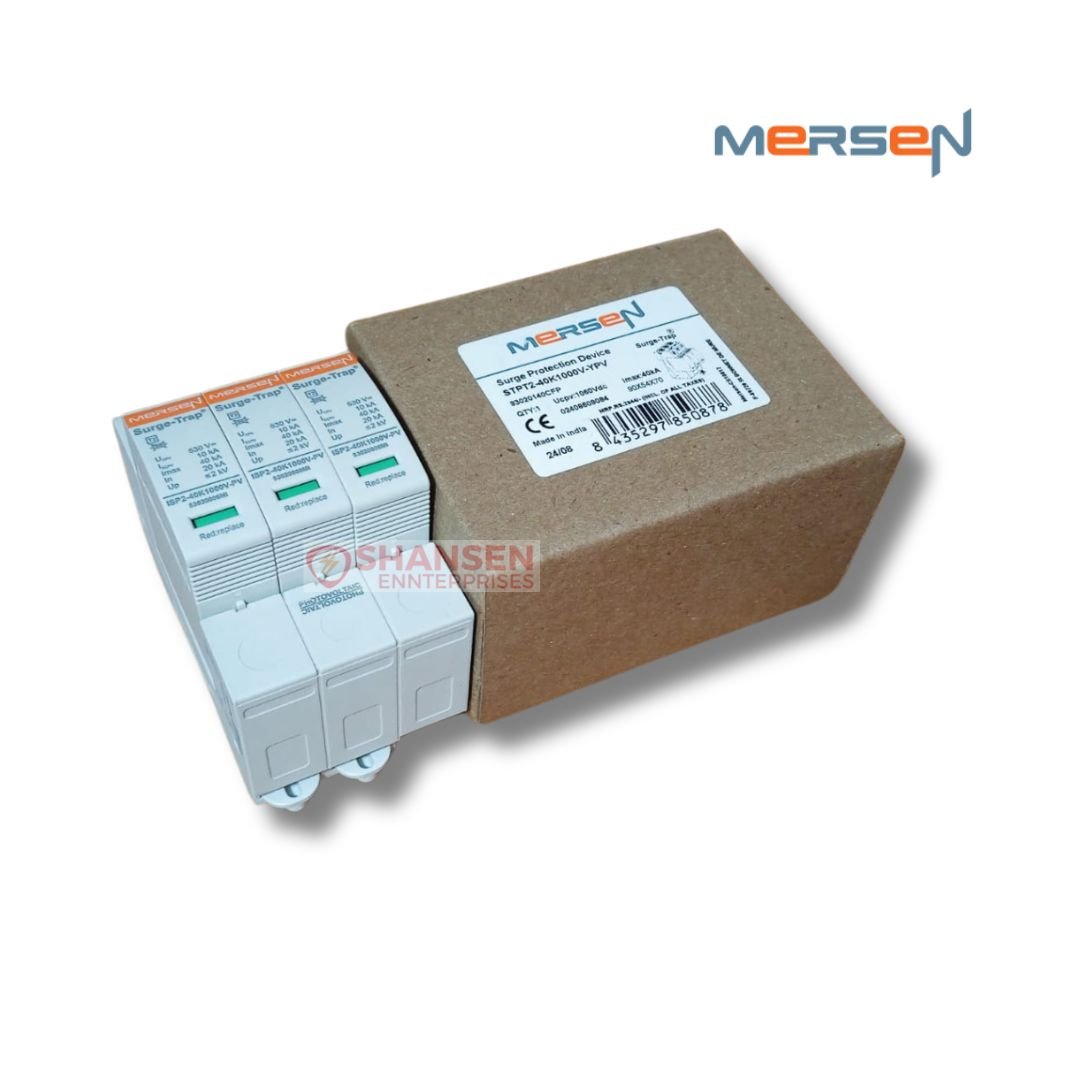

Mersen STPT2-40K1000V-YPVM Surge Protection Device for Photovoltaic Systems

Protect your solar investments with the Mersen STPT2-40K1000V-YPVM Surge-Trap® Pluggable STPT2 Series – YPV. This Type 2/Class II surge protection device offers superior protection against induced voltage surges up to 40kA, ensuring the longevity and reliability of your photovoltaic installations.

Unmatched Surge Protection

Safeguard your photovoltaic systems with a device designed specifically for discharging induced voltage surges (8/20 μs), compliant with IEC/EN 61643-31 standards.

Key Features & Benefits

• High Discharge Capacity: Handles maximum discharge currents of 40kA (8/20μs) and nominal currents of 20kA (8/20μs).
• Wide Voltage Range: Supports Ucpv of 65Vdc up to 1500Vdc, making it versatile for various PV system voltages.
• No Back-Up Fuse Required: With an Iscpv of 10kA (EN 50539-11), there’s no need for additional fuses in PV systems.
• Easy Installation: DIN-rail mountable and pluggable format with a reversible chassis for flexible cable entry from above or below.
• Safety Indicators: Equipped with visual and remote end-of-life indicators for proactive maintenance.
• Error Prevention: Mechanically coded cartridges prevent incorrect replacements.
• Dynamic Thermal Disconnection: Features a high breaking capacity system optimized for DC voltages, enhancing safety.

Certifications & Standards

• EN 61643-31
• UL 1449 5th Edition
• IEC 61643-31

Where to Buy

Available at Shansen Enterprises in Coimbatore, your authorized channel partner for Mersen products. Serving customers all over India with ready stock and a commitment to 100% satisfaction.

Just tap the “Get Quote Via WhatsApp” message right from this product page to get a quick quote.
