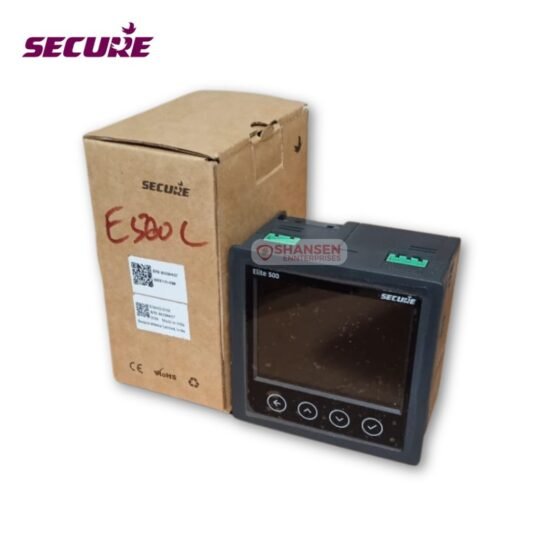

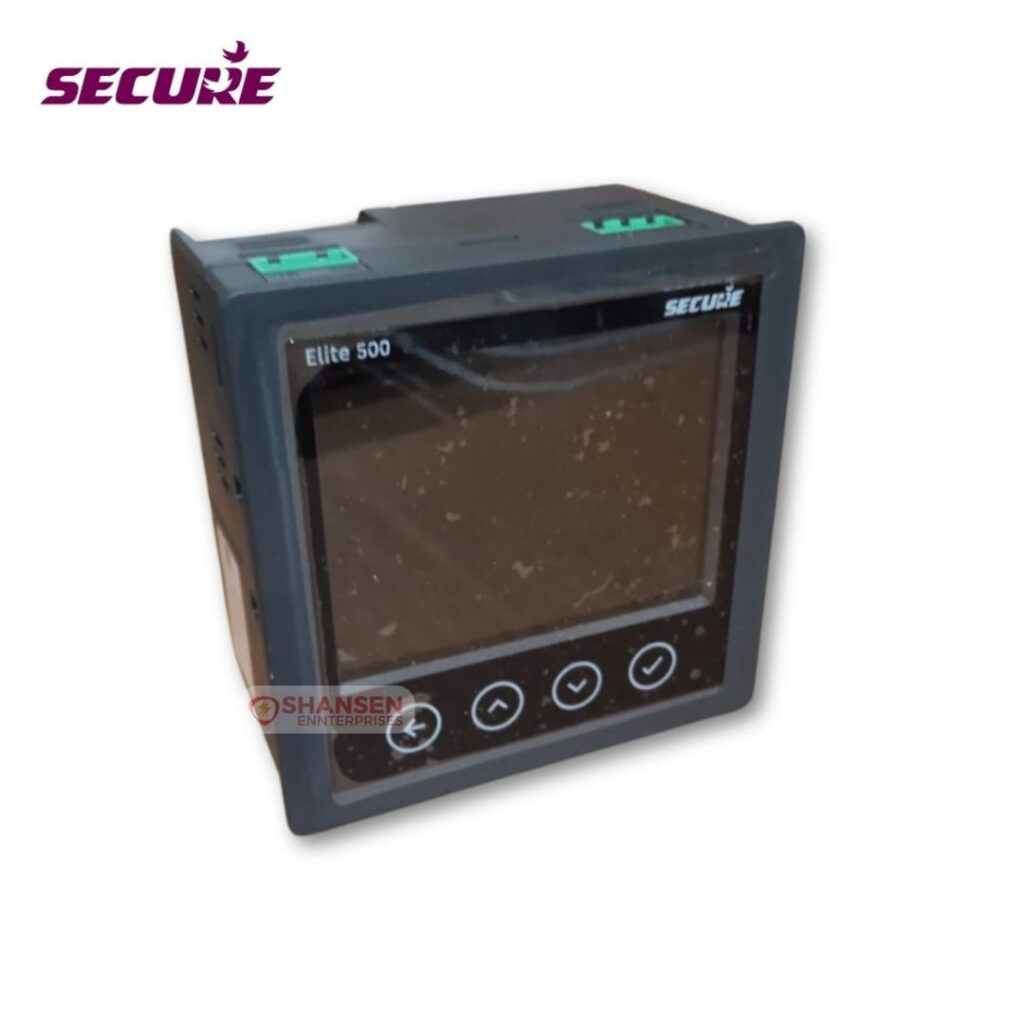

SECURE 500C-5102 Network Recorder-Energy Meter

0.00

Advanced Power Monitoring Solution

Looking for a highly accurate and reliable network recorder energy meter? The Secure Elite E500C-5102 is the perfect choice! Designed for industrial and commercial applications, this panel-mounted device offers class 0.5S accuracy, real-time energy monitoring, and seamless communication with RS485 Modbus RTU.

Key Features of Secure 500C-5102

✔ High Precision Energy Monitoring

  • Measures active, reactive, and apparent power with precision.
  • Class 0.5S accuracy for reliable data tracking.
  • RMS values of currents and voltages for detailed power analysis.

✔ Advanced Communication & Data Logging

  • Dual Loggers with 16MB memory for instant or accumulated energy data.
  • RS485 Modbus RTU communication up to 38400 bit/s.
  • Optional support for Modbus TCP, BACNet IP, Profinet, and SCADA EC61850 protocols.

✔ Flexible Input & Output Configuration

  • Automatic nominal current range up to 6A (Supports 5A/1A CT input).
  • Nominal voltage range up to 500V L-L, 300V L-N.
  • Configurable 2 x Tariff Inputs, 2 x Pulse Outputs, or Alarm Outputs.
  • Optional analog output and relay alarm modules for enhanced monitoring.

✔ User-Friendly TFT Touch Screen Interface

  • Bright and clear TFT touchscreen for intuitive navigation.
  • Displays real-time power factor, harmonics (up to 15th), and energy data.

Where to Buy Secure 500C-5102 Network Recorder-Energy Meter?

🔹 Available at Shansen Enterprises, Coimbatore!
We are an Authorized Channel Partner of SECURE Brand meters and transducers, providing ready stock availability with a 100% satisfied customer record.

📦 Fast Dispatch: Ships within 48 hours via courier or transport services for smooth delivery across India.
📲 Get Quick Quotes: Just tap the “Get Quote Via WhatsApp” button on this page for an instant price quote.

Download Product Brochure

download

Additional information

Brand

SECURE

Part Number

E500C-5102

Functions

Network Recorder, Energy Meter

Supply Voltage

Universal 35..300V DC, 85..300VAC

Nominal Measurement Range

240V L-N, 1/5 Amp, 415V L-L 1/5 Amp

Maximum Measurement Range

300V L-N, 1/5 Amp, 500V L-L 1/5 Amp

Alarm

Optional Module 2 Relay/Pulse Outputs

Tariff/Digital Inputs

TOU Tarriff Clock

Accuracy

Class 0.5S (I,U,F,PF,θ,THD) Class 1(Active), Class 2 (Reactive)

Analogue Output

Optional Module 2 x Programmable Analogue Outputs

Internal Memory

2 x 8MB

Country of origin

India
