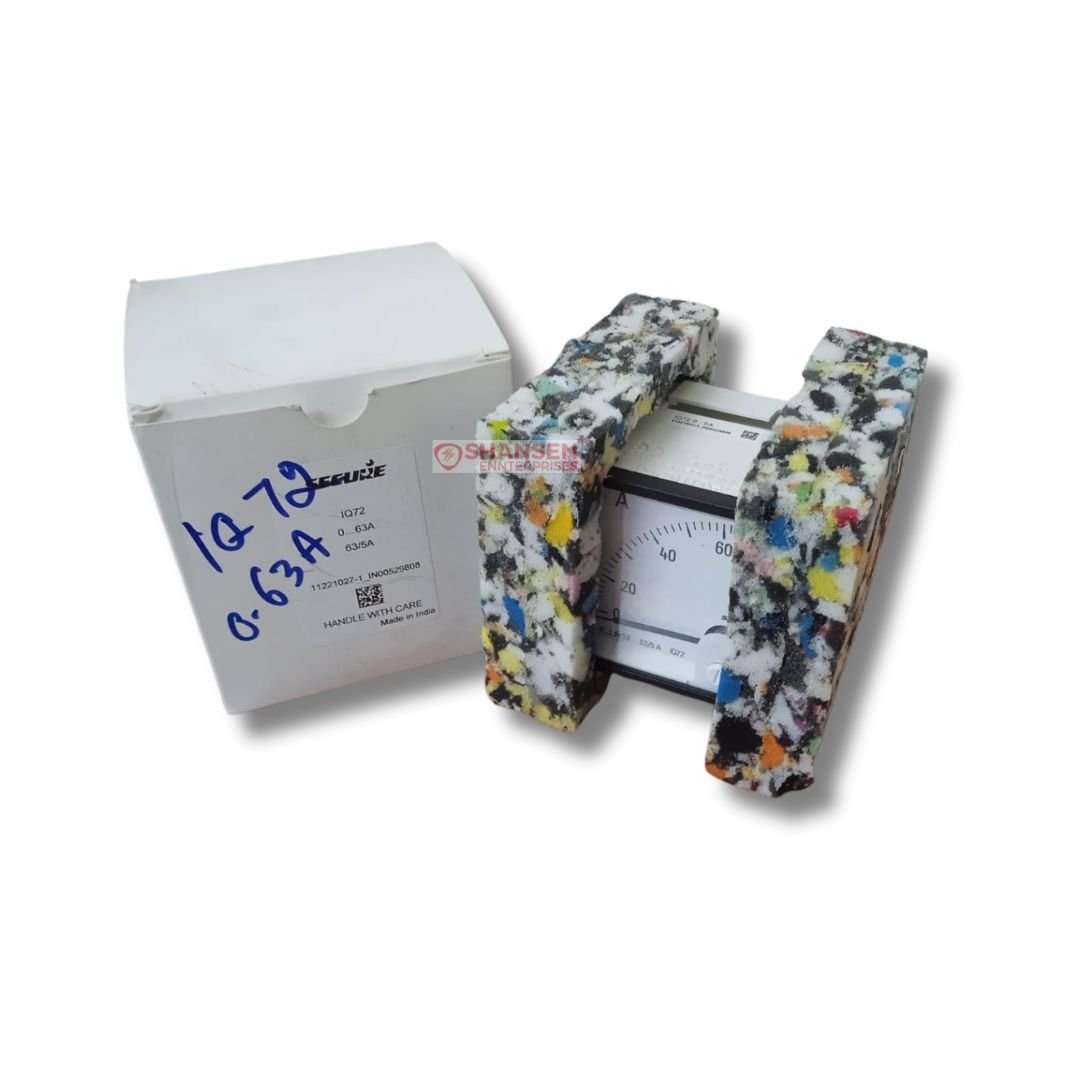

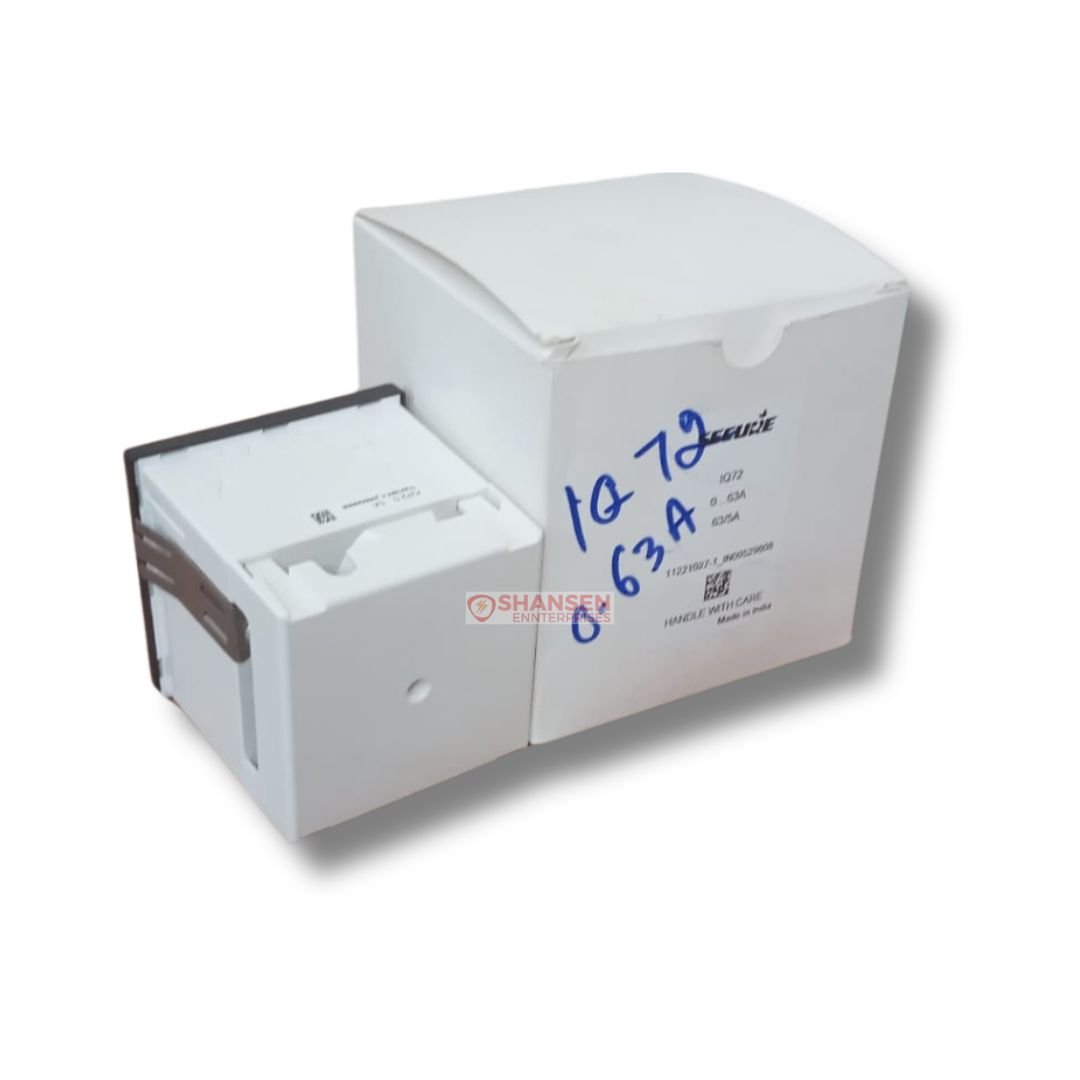

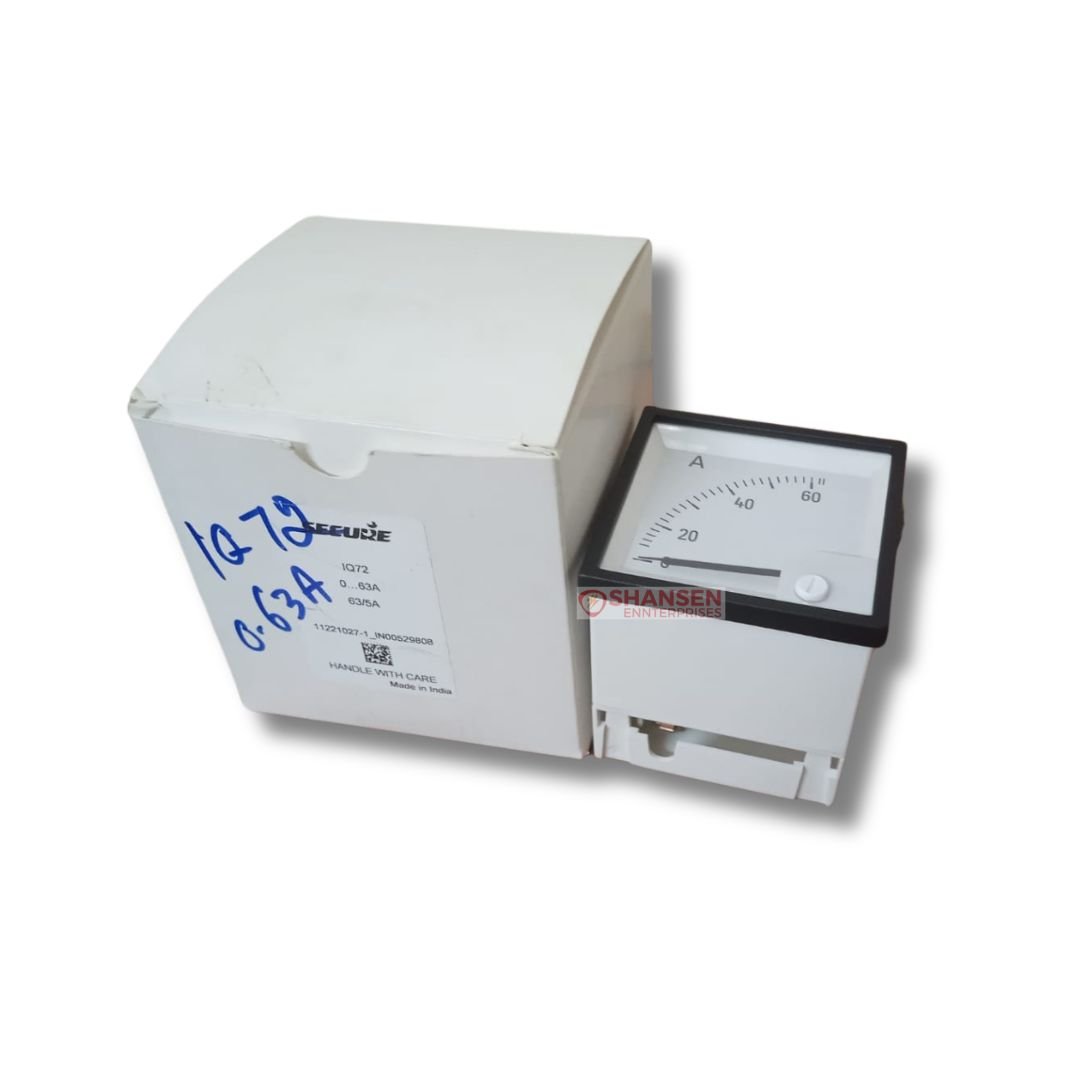

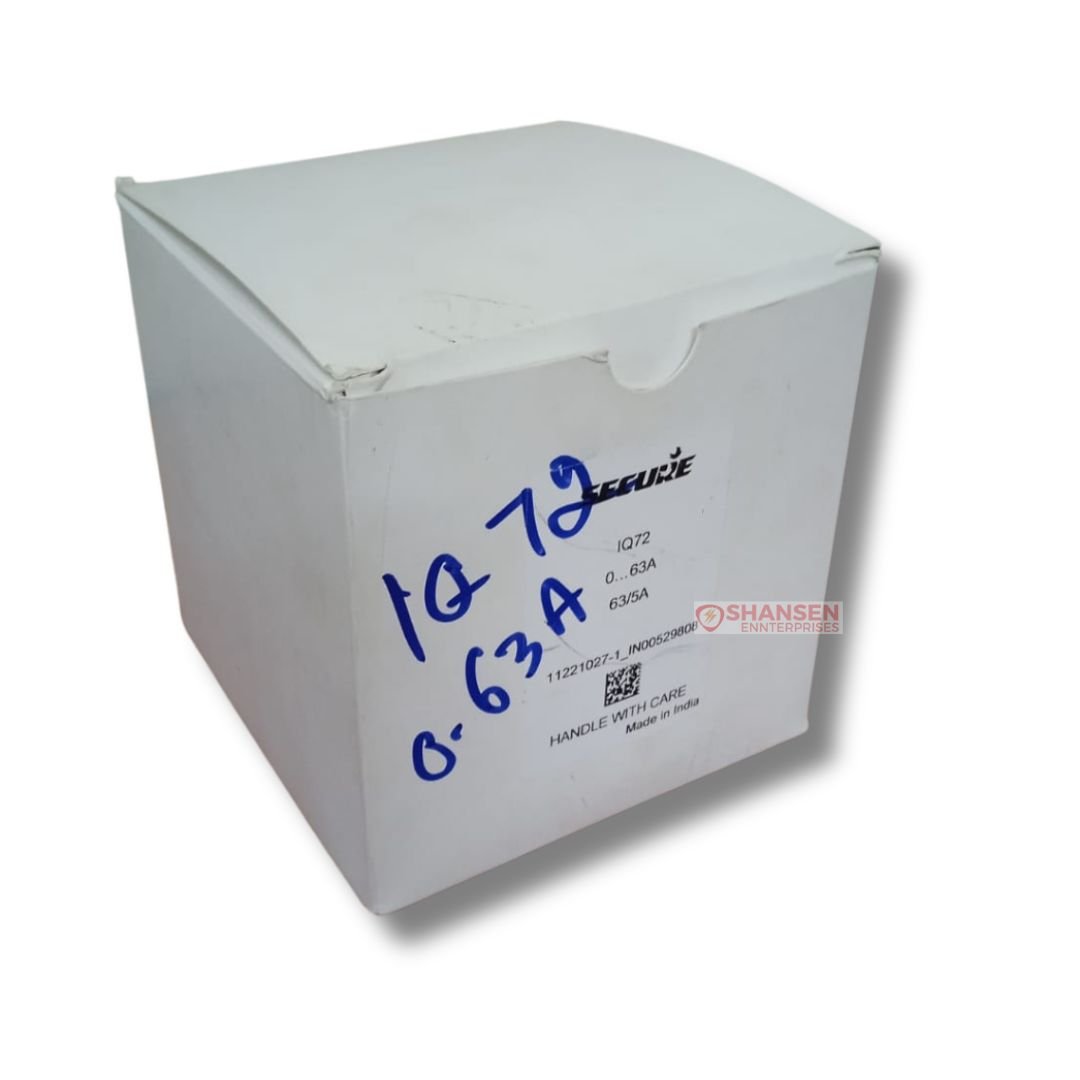

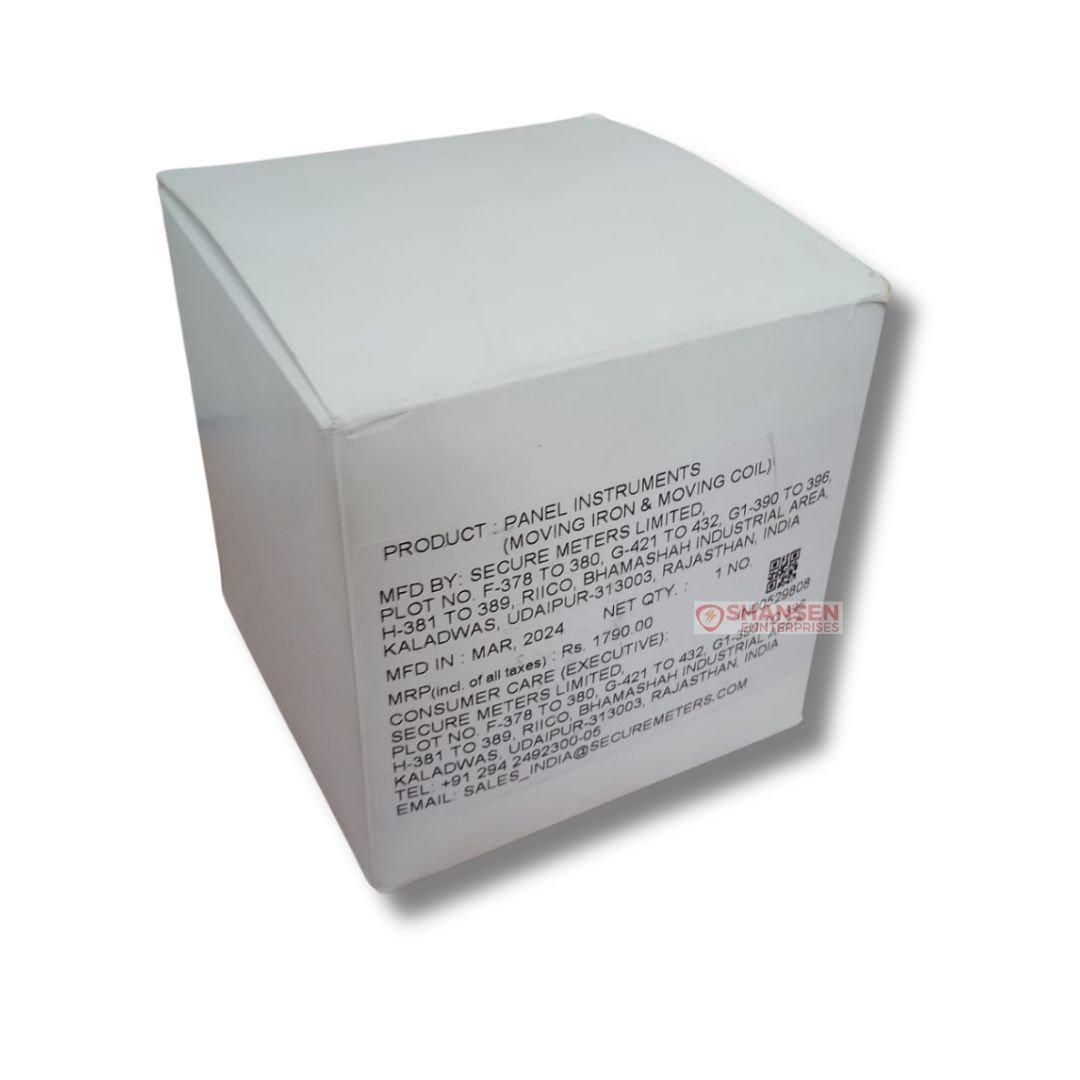

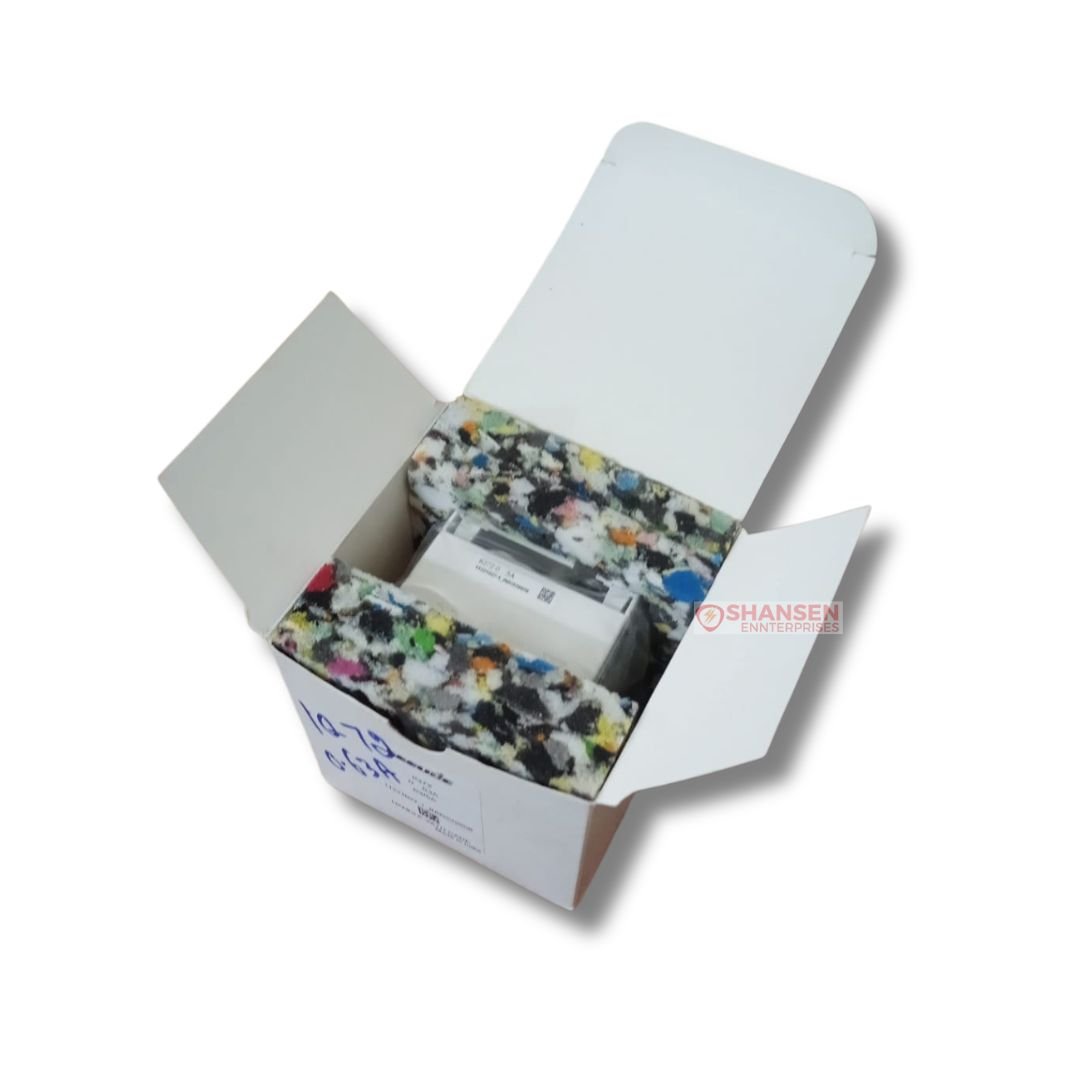

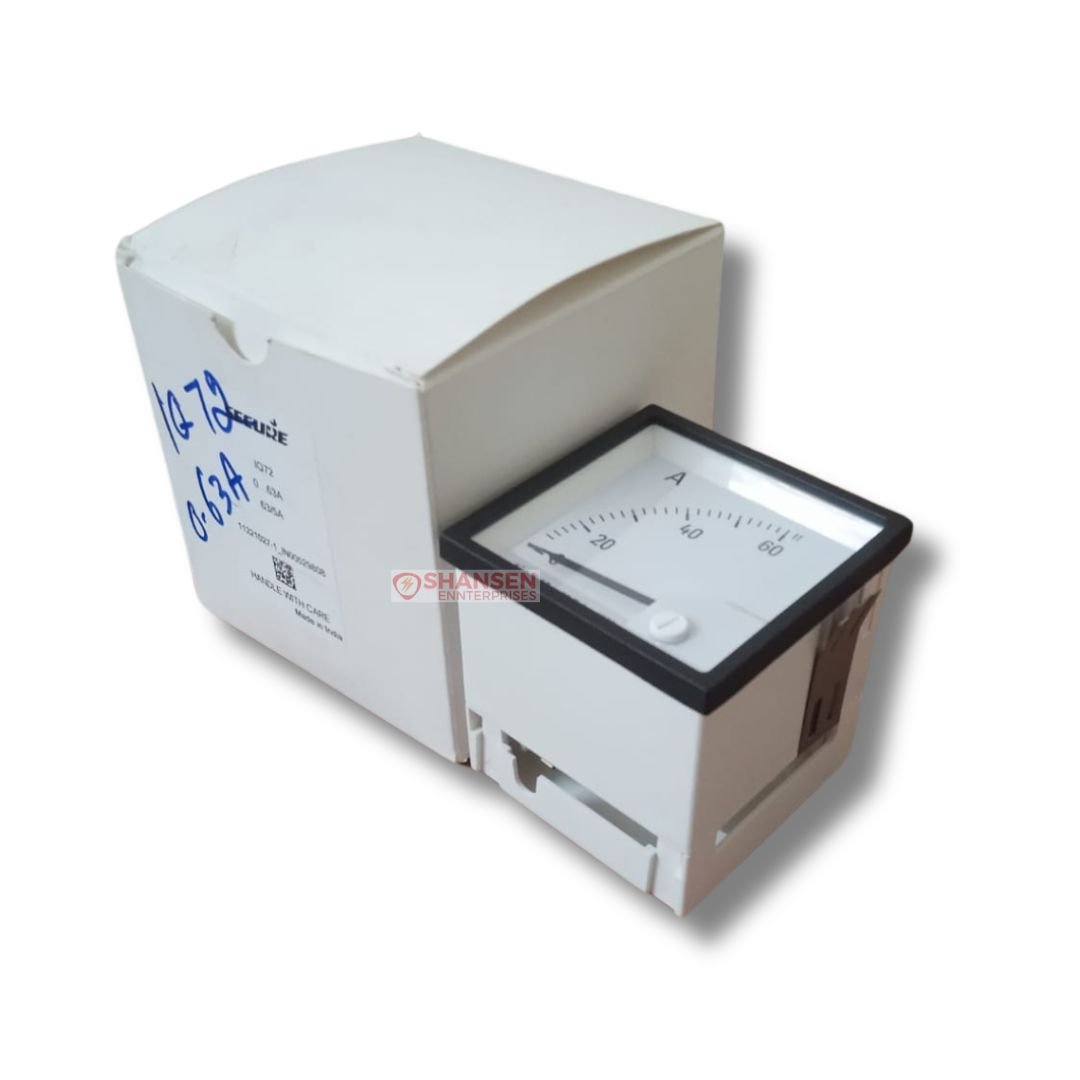

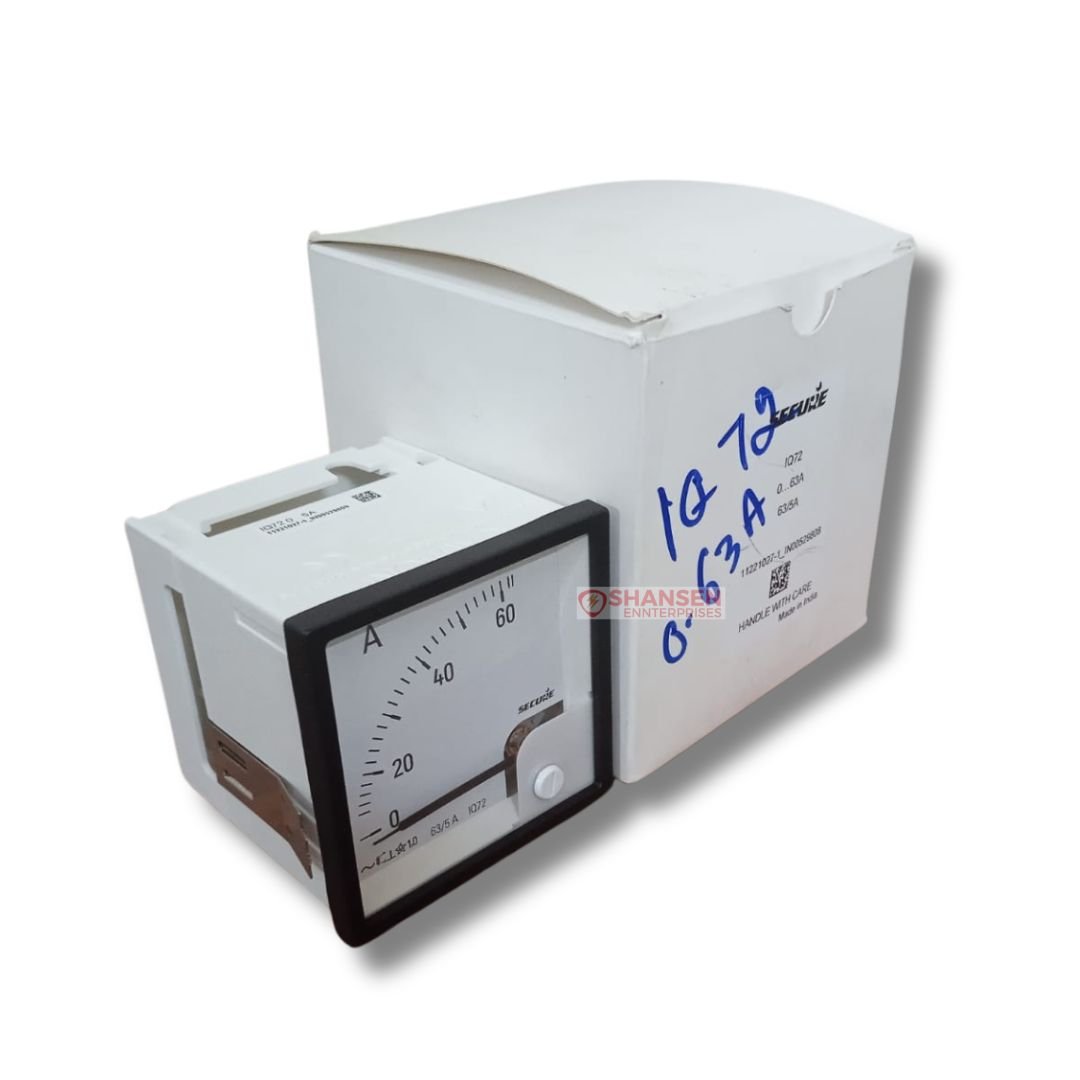

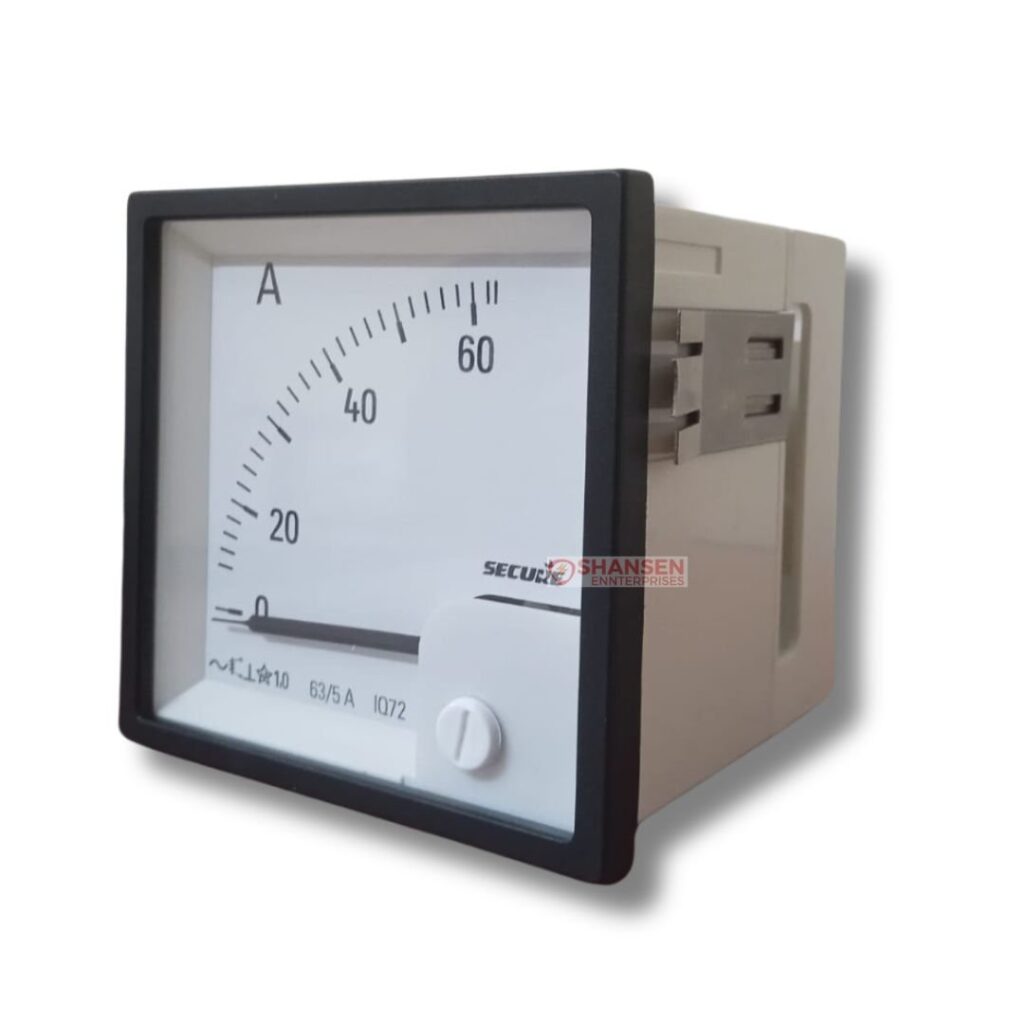

Secure Brand Analogue Panel Instrument IQ 72

Precision Crafted for Versatile Applications

The Secure Brand Analogue Panel Instrument IQ 72 stands out as a pinnacle of engineering, designed to cater to the most demanding control and instrumentation systems. With a range that includes moving-iron and moving-coil mechanisms, this panel instrument is available in various formats, scales, and sizes, making it adaptable for a wide range of applications. Whether you need an ammeter, voltmeter, or power meter, the IQ 72 offers customization options to meet your specific requirements, ensuring that you get the precise measurements you need.

Designed for Heavy-Duty Use

Built with robustness in mind, the IQ 72 is crafted from high-quality materials that ensure a long service life. Its construction is not just about longevity but also about reliability. The instrument is easy to install with a snap-in mounting feature, making it ideal for HV and LV switchgear panels, control and relay panels, power control centers (PCC), motor control centers (MCC), test benches, and laboratory equipment.

Key Benefits

• Effortless Installation: The snap-in mounting design simplifies the installation process, saving you time and effort.
• Proven Reliability: Well-established designs guarantee high-quality performance and dependability.
• Energy Efficiency: The low power consumption feature makes it an eco-friendly choice.
• Versatile Applications: Suitable for a wide range of applications with no need for additional magnetic shielding.

Outstanding Features

• Standard Sizes: Available in 48×48, 72×72, and 96×96 mm front panel sizes.
• Scale Variety: Choose from quadrant (90°), circular (240°), and edgewise scales to fit your needs.
• Flexible Mounting Options: Install horizontally, vertically, or at an angle, depending on your panel layout.
• Tropical Adaptability: Optional protective coatings make it suitable for use in tropical environments.
• Durable Design: With an IP 54 rating (option for IP 65), it offers protection against dust and water ingress.
• Wide Temperature Range: Operates efficiently in temperatures ranging from -25 °C to +50 °C.
• Adjustable Red Markers: For meters with quadrant scales, enhancing visibility and precision.
• AC/DC Compatibility: Models available for both AC and DC measurements.

Measured Parameters

The IQ 72 can measure a variety of critical parameters, including:

• Current
• Voltage
• Frequency
• Power (active or reactive)
• Power factor
• Maximum demand (current)
• Synchronization (pointer synchroscope, twin voltmeter, or twin frequency meter)

Available at Shansen Enterprises

Located in Coimbatore, Shansen Enterprises is your authorized channel partner for Secure Brand Meters. Serving customers all over India, we are committed to providing high-quality, reliable meters with 100% customer satisfaction.
