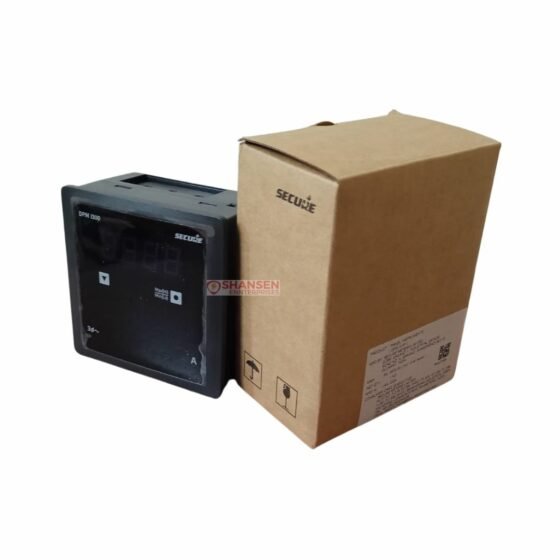

SECURE_Brand_DPM_1310_Digital_Panel_Meter_leftside_closed_box
SECURE_Brand_DPM_1310_Digital_Panel_Meter_complete_set
SECURE_Brand_DPM_1310_Digital_Panel_Meter_boxed
SECURE_Brand_DPM_1310_Digital_Panel_Meter_Backside-view-with_box

SECURE Brand DPM 1310 Digital Panel Meter

₹0.00

Introducing the SECURE Brand DPM 1310 Digital Panel Meter

Easy Installation and Operation

The SECURE Brand DPM 1310 Digital Panel Meter is designed with user convenience in mind. It offers a straightforward installation process, making it an ideal choice for both novice and experienced users. The unique pass-through concept for current termination ensures a hassle-free setup, without the need for lugs or wire cuts, thus reducing overall costs and eliminating the risk of CT wire damage.

High Accuracy and Reliable Measurements

This digital panel meter provides accurate measurements for both AC and DC parameters, including voltage, current, frequency, power, power factor, and energy. Thanks to its true RMS measurement capability for AC parameters, you can count on precise readings every time. Whether you’re working in industrial or commercial settings, the DPM 1310 ensures that your power monitoring needs are met with utmost reliability.

Versatile Applications

The DPM 1310 is perfect for a variety of panel applications, making it a versatile tool for:

  • HV and MV Switchgear Panels
  • Power Control Centre (PCC) Panels
  • Motor Control Centre (MCC) Panels
  • LV Distribution Panels

Its field configurability allows for easy adaptation to different applications, making it a common product across various setups.

User-Friendly Features

The DPM 1310 is packed with features designed for ease of use:

  • Clear Display: Whether it’s an LED or LCD, the display is easy to read, even from a distance.
  • Touch-Sense Keys: Navigate through settings and access information with ease using touch-sense keys.
  • User Configurable Alerts: Set alert thresholds for various parameters to ensure timely action.
  • Wide-Range Auxiliary Input: Suitable for various installation scenarios, accommodating both AC and DC power supplies.

Compact and Durable Design

The compact size of the DPM 1310 allows for optimal use of panel space, making it a great fit for any setup. It also boasts a high level of protection, ensuring durability and longevity in demanding environments. With features like password-protected setup mode and field programmability for CT/PT commissioning, this meter offers both security and flexibility.

Monitor and Control with Confidence

Keep track of minimum and maximum values, monitor current and power demand, and enjoy the peace of mind that comes with a product designed to minimize installation risks, such as screw head damage or wire loosening.

Available at Shansen Enterprises

For all your SECURE Brand meters, including the DPM 1310, look no further than Shansen Enterprises in Coimbatore. As an authorized channel partner, we are renowned for our quality and trustworthiness. We proudly serve customers across Coimbatore and all over India, ensuring you have access to the best in digital panel meters.

Experience the efficiency and reliability of the SECURE Brand DPM 1310 Digital Panel Meter. Reach out to Shansen Enterprises today!

Download Product Brochure

download

Category: Tags: , , , , , , , , , , , , , , , , , , ,

Description

SPECIFICATIONS

Electrical

Single-phase

Three-phase

LED

LCD

LED

LCD

Connection type

1 Phase 2 Wire (AC applications)

1 Phase 2 Wire / 3 Phase 3 Wire /

3 Phase 4 Wire

Voltmeter

Measuring voltage range

20 V to 500 V

Nominal voltage range

57.5 V to 240 V (phase to neutral) | 100 V to 415 V (phase to phase)

Over voltage

150% Un continous

Ammeter

Measuring current range

50 mA to 6 A

Nominal current range (In)

1 A or 5 A

Overload

150% In continuous

Short time over current

120 A for 1 sec

Active power

Measuring voltage range: 5 V to 500 V Voltage (Un): 57.5 V to 240 V (phase to neutral), 100 V to 415 V ( phase to phase)

Measuring voltage range: 20 V to 500 V Voltage (Un): 57.5 V to 240 V (phase to neutral), 100 V to 415 V ( phase to phase)

Measuring current range: 50 mA to 6 A, Current (In): 1 A or 5 A

Reactive power

–

As for active power

Power factor

–

0.1 lag – Unity – 0.1 lead (for In and Un)

Frequency range

45 to 65 Hz

DC Voltmeter

1 to 250 Vdc

Tolerance: +20% of Vdc

DC Ammeter

Configurable external shunt value:

-150 mV … 0 … +150 mV

Tolerance: +20% for shunt input

Auxiliary supply range

40 to 300 V AC / DC

Accuracy class

Voltage, current

±0.5% FS

Frequency

±0.1 Hz

Active power

±0.5% FS (at unity PF)

Reactive power

–

±0.5% FS

Power factor

–

±0.005

Energy

–

Class 1.0

(acc. to IEC 62053-21)

–

DC Voltmeter

±0.2% FS

–

–

DC Ammeter

±0.2% FS

–

–

Temperature coefficient

Voltage, current: 0.05% / ºC

Burden

Voltage circuit

Current circuit

1 A:

Auxiliary supply

Auxiliary supply (with -RS485)

–

–

variant only)

–
