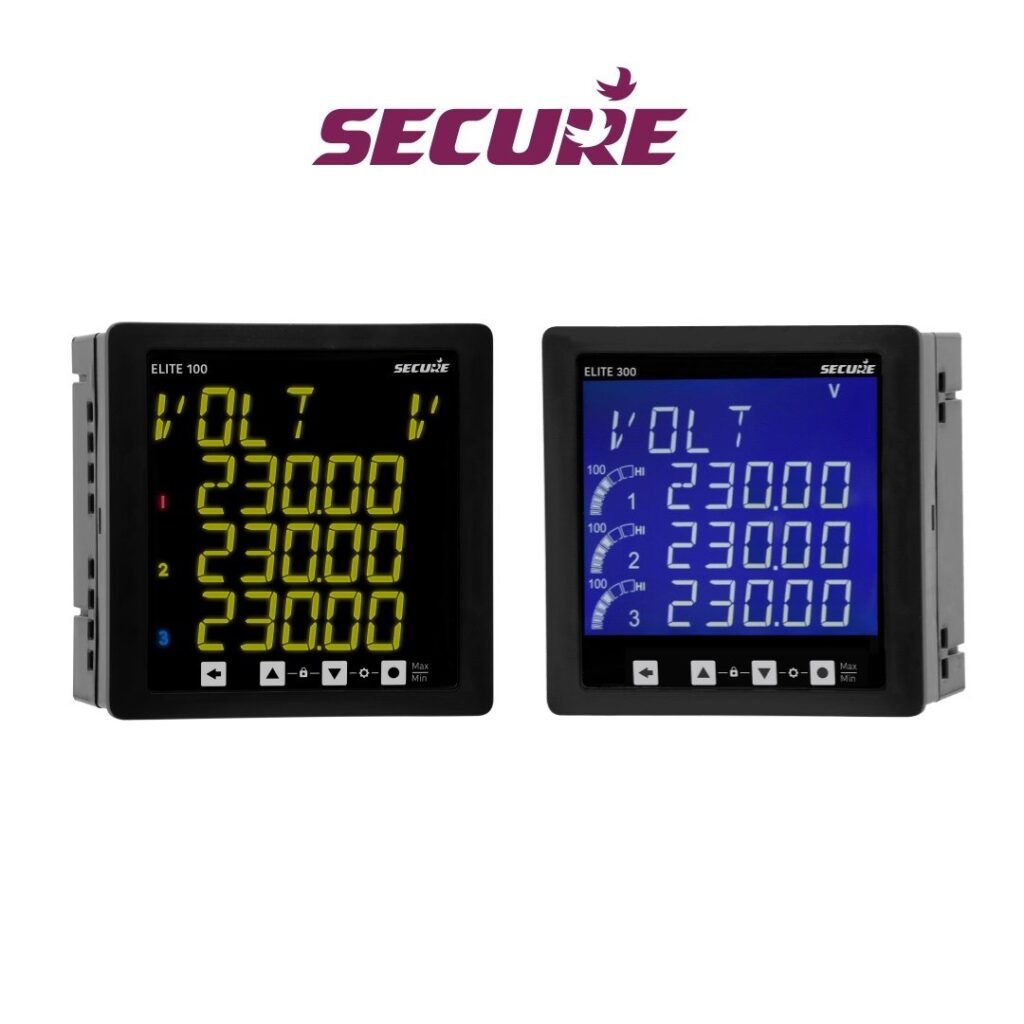

SECURE Brand Elite 100 and 300 Multi-function meters


The SECURE Brand Elite series is a range of high-performance multi-line, three-phase digital panel meters designed for industrial and commercial applications. These multi-function meters offer reliable and accurate true-RMS measurement of essential electrical parameters such as voltage, current, power, and frequency. Available in two models—Elite 100 with an LED display and Elite 300 with an LCD display—the series ensures seamless integration and user-friendly operation.

Key Features

  • Display Options: Four-line alphanumeric LED (Elite 100) or LCD (Elite 300) display with seven digits for energy and five digits for instantaneous parameters.
  • Accurate Measurement: Ensures reliable and precise true-RMS metering.
  • User-Configurable Alerts: Set thresholds for various parameters to receive timely alerts.
  • Unique Pass-Through Mechanism: Innovative current termination with minimal burden.
  • Wide-Range Power Supply: Compatible with AC/DC auxiliary power supply.
  • High Protection Level: Robust design with high protection degree.
  • THD Measurement: Monitors voltage and current harmonics up to 31 harmonics.
  • Current and Power Demand Monitoring: Keeps track of current and power demands.
  • Flexible Output Options: Choose between RS-485, pulse output, or alarm output.
  • True RMS Metering: Provides accurate measurements regardless of waveform distortions.
  • Secure Setup: Password-protected setup mode for enhanced security.
  • Versatile Wiring Configuration: On-site setup for 3P 3W or 3P 4W wiring configurations.
  • Auto Unit Scaling: Automatic scaling for voltage, current, power, and energy.
  • Scroll-Lock Feature: Facilitates easy display navigation.
  • Configurable Modbus Registers: Simplifies system integration for Modbus variants.


  • Commercial and Industrial Sub-Metering: Ideal for monitoring and managing energy usage in commercial and industrial settings.
  • Energy Management Systems (EMS): Perfect for integrating into energy management systems for optimized energy use.
  • Building Management and Monitoring Systems (BMS): Enhances building management with detailed monitoring and control.
  • High and Medium Voltage Switchgear Panels: Suitable for use in various switchgear panel configurations.
  • Power Control Centre (PCC) Panels: Essential for managing power distribution in PCC panels.
  • Motor Control Centre (MCC) Panels: Reliable for monitoring and controlling motors in MCC panels.
  • LV Distribution Panels: Effective for low voltage distribution panel applications.
  • Control and Relay Panels: Integral for automation and monitoring in control and relay panels.


  • Comprehensive Monitoring: Consolidates multiple electrical parameters in a single device.
  • Ease of Installation: Quick and easy installation with the unique pass-through concept for current termination.
  • Versatility: Single product adaptable to various panel applications through field configuration.
  • Wide Auxiliary Input Range: Suitable for diverse installation scenarios.
  • Critical Alerts: On-display alerts for monitoring critical parameters.
  • User-Friendly Interface: Touch-sense keys for effortless display access and configuration.
  • System Integration: Optional Modbus communication for seamless system integration.


The SECURE Brand Elite 100 and 300 Multi-Function Meters are available at Shansen Enterprises, Coimbatore, the authorized dealers and channel partners of the SECURE Brand Meters range. Ensure optimal energy management and monitoring for your industrial and commercial needs with the trusted reliability of SECURE Brand’s Elite series.

Download Product Information




Connection type Common product for 1P2W / 3P3W / 3P4W applications
Measuring voltage range 20 V to 500 V
Nominal voltage range (U,) 57.5 V to 240 V (phase to neutral).100 V to 415 V (phase to phase)
Over voltage 150% of U„ continuous
Measuring current range 50 mA to 6A
Nominal current range (I,) 1 A or 5 A
Overload 150% of I, continuous
Frequency range 45 to 65 Hz
Power factor 01 lag – Unity – 0.1 lead (for I, and U,)
Auxiliary power supply range 40 to 300 V AC / DC
Short- time over current 120 A for 1 sec
Temperature coefficient Voltage, current: 0.05% / °C
Bezel size 96 x 96 x 55 mm (70.8 mm with parking terminals)
Panel cut-out 92 x 92 mm
Tolerance +0.5mm
Weight Approx 320 grams
Enclosure Flame Retardant Polycarbonate (as per UL 94 VO)
Voltage/auxiliary Combicon connectors: up to 2.5 mm’ cable
Current Pass-through CT connection: up to 2.5 mm’ cable
Parking terminal for CT terminations (optional) U-type / ring-type terminations: maximum up to 2.5 mm’ cable
Digital output / RS.-485 / alarm output Combicon connectors: up to 2.5 mm’ cable
Number of lines 4 lines
Number of digits 7 digits for energy parameters, 5 digits for instantaneous parameters
Energy resolution Up to 0.01 resolution
