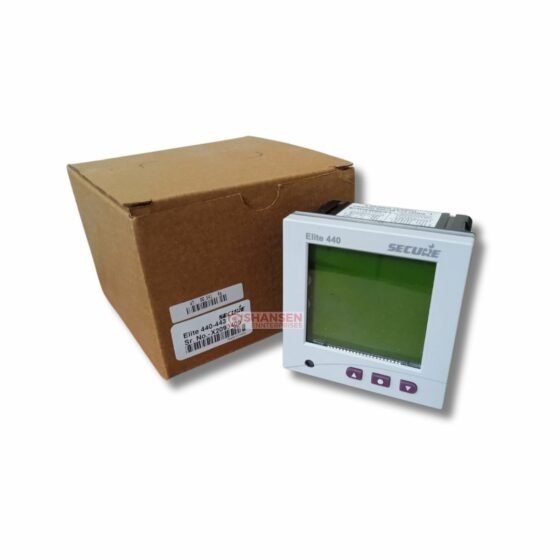

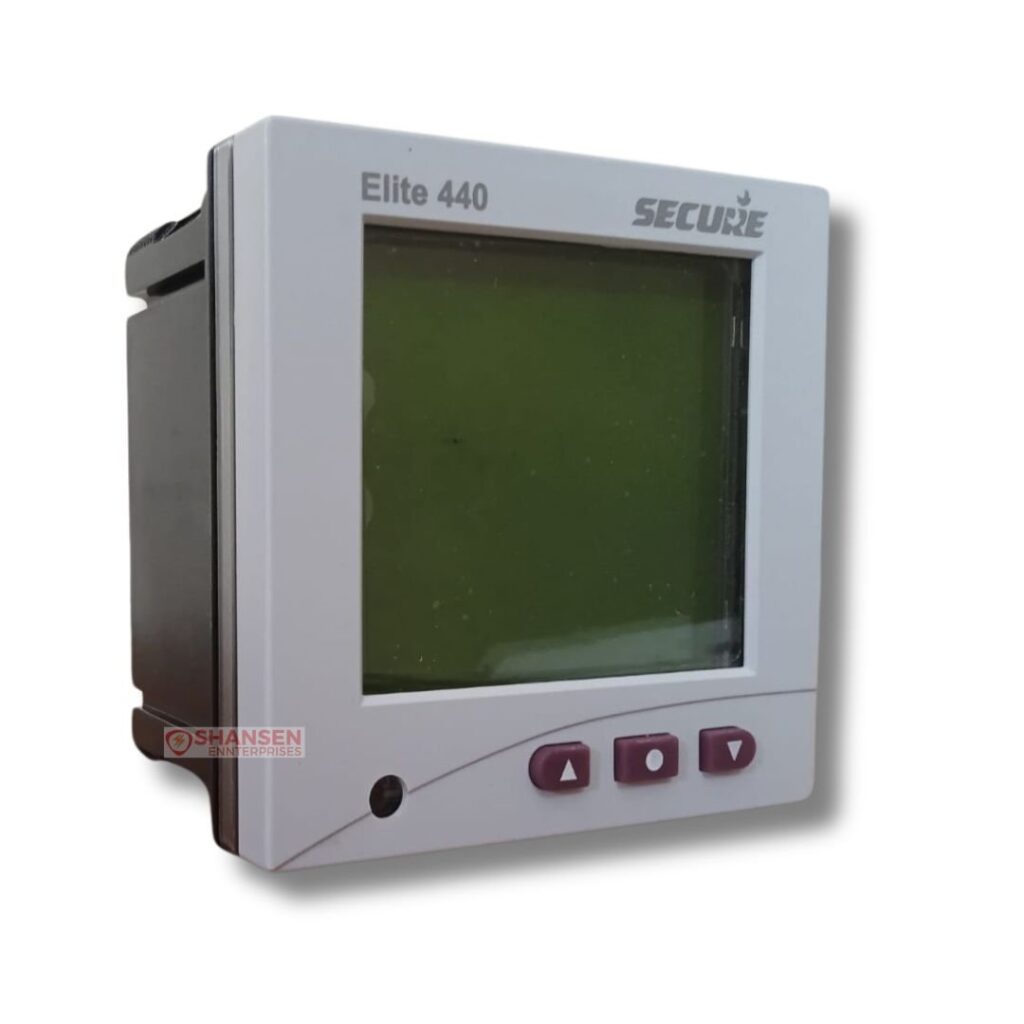

Secure Brand Elite 440 Multi-line Multi-Function Panel Instrument

Elite 440 Multi-function Panel Meter: Precision, Versatility, and Seamless Integration

Overview

The Elite 440 is a state-of-the-art multi-line, three-phase digital panel meter designed to deliver precise and dependable measurements of various electrical parameters including voltage, current, power, and frequency. Engineered for both industrial and commercial applications, the Elite 440 features a large, multi-line backlit LCD display capable of showcasing four parameters simultaneously. With its high accuracy and extensive configurability, this panel meter is an ideal choice for diverse energy monitoring and management needs.

Key Features

• Large Display: The Elite 440 boasts a large four-line, seven-digit display (9.7 H x 5 W mm) with quadrant identification and a bar graph for real-time power-level indication.
• High Accuracy: With accuracy classes of 0.2s, 0.5s, and 1.0, this meter ensures precise measurement, crucial for both industrial and commercial settings.
• Average THD Measurement: Capable of measuring total harmonic distortion (THD) for voltage, current, and power up to the 31st harmonic, ensuring comprehensive power quality analysis.
• Flexible Measurement Selection: Supports both star and delta configurations, along with 3P 4W or 3P 3W setups.
• Modbus Communication: Built-in Modbus communication via RS-485 port or Ethernet facilitates easy integration with energy monitoring systems.
• True RMS Metering: Provides true root-mean-square (RMS) metering for accurate and reliable readings.
• Calibration LED: Features an LED for on-site accuracy testing, ensuring consistent performance.
• Configurable Current Range: Supports a wide and configurable current range (1-2A and 5-10A) to accommodate various applications.
• Auxiliary Power Supply: Suitable for both high-voltage and low-voltage installations, thanks to its wide-range auxiliary power supply.
• Maximum Demand Recording: Records maximum demand, aiding in efficient energy management.
• Midnight Snapshot: Captures values for selected energy registers at midnight, enhancing daily monitoring.
• User-Friendly Interface: Scroll-lock and ‘Favourites Page’ display support for easy access to preferred parameters.
• Expansion Modules: Enhances system integration with add-on modules for analogue outputs, pulse inputs/outputs, and Ethernet connectivity.
• Password Protection: Ensures secure setup and configuration with password protection.

Applications

The Elite 440 is versatile and suitable for a wide range of applications, including:

• Commercial and Industrial Sub-metering: Perfect for sub-metering in commercial and industrial environments, aiding in detailed energy consumption analysis.
• Energy Management Systems (EMS): Integrates seamlessly with EMS for comprehensive energy monitoring and management.
• Building Management Systems (BMS): Ideal for integration with BMS, ensuring efficient building energy management.
• Switchgear Panels: Suitable for high, medium, and low-voltage switchgear panels, enhancing electrical system monitoring.
• Control and Relay Panels: Enhances functionality in control and relay panels.
• Power Control Centres (PCC): Optimizes monitoring and control in PCC panels.
• Motor Control Centres (MCC): Provides accurate metering for MCC panels.
• Plant Automation: Integrates smoothly with plant automation and monitoring systems such as SCADA and DAS.

Benefits

• Seamless Integration: Easy interface with external devices through built-in Modbus (RS-485/Ethernet) communication.
• Hassle-free Installation: Detachable connectors simplify installation and maintenance.
• Diagnostic Assistance: On-display diagnostics support for easy troubleshooting and maintenance.
• Versatile Connectivity: Suitable for both star and delta connections, as well as low and high-voltage applications.
• Cost-effective Monitoring: Provides an economical solution for online energy monitoring.
• Field Configurability: Easily configurable CT/PT primary and secondary values using intuitive push buttons.

The Elite 440 multi-function panel meter stands out with its high accuracy, configurability, and ease of integration, making it an indispensable tool for modern energy management and monitoring solutions.
