Many customers frequently ask about the ABB Brand CA4-22E 4-Pole Front Mounted Auxiliary Contact Block. To assist buyers like you, we’ve outlined the key details to help you make a well-informed purchase decision. Keep reading to understand the advantages.

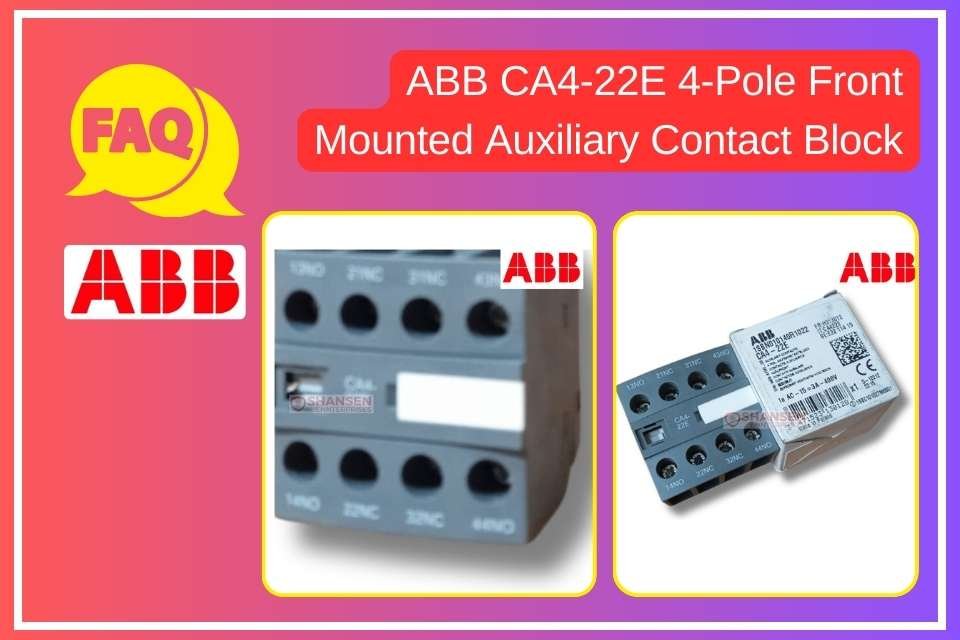

FAQ: ABB CA4-22E Auxiliary Contact Block
The ABB CA4-22E is a 4-pole, front-mounted auxiliary contact block designed to work with ABB contactors. It provides additional contacts (both normally open and normally closed) to enhance control and connectivity in industrial applications. It is designed for easy installation and dependable performance in standard industrial environments.
Key features include a 4-pole configuration, 2 normally open (N.O.) and 2 normally closed (N.C.) instantaneous contacts, front mounting with screw terminals, durability for industrial environments, and compatibility with various ABB AF series contactors.
The CA4-22E is designed to be compatible with several ABB AF series contactors, including the 3-pole AF26(Z)(B)..96-30-00, AF40..96-30-11, and the 4-pole AF09(Z)(B)..80-40-00 models. This ensures easy integration into existing ABB setups. The full list of compatible contactors include: AF09, AF09Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC16, AFC26, AFC30, AFC38, AF09B, AF09ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B.
The CA4-22E has a rated operational voltage of 690V for the auxiliary circuit, a rated frequency of 50/60 Hz, a conventional free-air thermal current (Ith) of 16A, and various rated operational currents for AC-15 and DC-13 applications depending on the voltage. It also has a rated insulation voltage of 690V (IEC) or 600V (UL/CSA), and a rated impulse withstand voltage of 6 kV.
The ABB CA4-22E can be purchased from Shansen Enterprises, an authorized ABB channel partner located in Coimbatore, India. They offer a range of ABB products and serve customers across India. You can contact them for a quote via WhatsApp.
The CA4-22E utilizes screw terminals for easy and secure connections. It is also IP20 rated for terminal protection and suitable for various wire sizes.
The ABB CA4-22E complies with IEC/EN 60947-5-1, UL 60947-5-1, and CSA C22.2 No. 60947-5-1-14 standards.
The recommended wire stripping length for the auxiliary circuit is 10 mm.
Shansen Enterprises advertises the ABB CA4-22E auxiliary contact block, highlighting its compatibility with ABB contactors. The block features a 4-pole design with two normally open and two normally closed contacts. It’s designed for front mounting with screw terminals and meets industrial standards for durability. The product page provides technical specifications and lists compatible ABB contactor series. Shansen Enterprises, an ABB channel partner in Coimbatore, India, also offers other ABB electrical products, along with products from Eaton Bussmann, Exide, Lisha, and other brands. They supply a range of electrical components, including contactors, relays, circuit breakers, switches, fuses, and related accessories.
