We know that choosing the right Manual Motor Starter can be overwhelming. Whether you’re curious about its technical specifications or how it performs in different applications, we’ve got you covered. To simplify your decision-making process, we’ve compiled all the crucial details, including its standout features, specifications, and benefits about ABB MS116-32 Manual Motor Starter.
FAQ: ABB MS116-32 Manual Motor Starter
The ABB MS116-32 is a compact manual motor starter designed to protect motors in both three-phase and single-phase applications. It offers protection against overloads, short circuits, and phase failures, eliminating the need for separate fuses and simplifying motor control. It’s commonly used in industrial and commercial settings.
Key features include: a rated service short-circuit breaking capacity (Ics) of 10 kA at 400 VAC, Trip Class 10A protection, a built-in disconnect function, temperature compensation for stable operation in varying environments, a rotary handle with a clear switch position indicator, and accessory options like auxiliary contacts.
“Trip Class 10A” refers to the time it takes for the motor starter to trip (disconnect power) in the event of an overload. Class 10A indicates a specific time-current characteristic designed to provide optimal motor protection without nuisance tripping. This is crucial for preventing motor damage from overcurrent conditions.
The rated service short-circuit breaking capacity (Ics) is 10 kA at 230 V AC and 400 V AC, 3 kA at 440 V AC and 500 V AC, and 2 kA at 690 V AC. The rated ultimate short-circuit breaking capacity (Icu) is 16 kA at 230 V AC and 400 V AC, 15 kA at 440 V AC, 10 kA at 500 V AC, and 3 kA at 690 V AC. These values represent the motor starter’s ability to safely interrupt fault currents at those voltages.
The ABB MS116-32 can be enhanced with accessories such as auxiliary contacts, signaling contacts, and shunt trips. These accessories expand the starter’s functionality by providing additional control and monitoring capabilities.
The ABB MS116-32 has an electrical durability of 50,000 cycles and a mechanical durability of 100,000 cycles. This indicates the number of operational cycles the device can reliably perform under normal conditions, reflecting its robust construction.
The ABB MS116-32 can be purchased from Shansen Enterprises in Coimbatore, India, who ship throughout India. The rated operational current (Ie) is 32 A.
Yes, the ABB MS116-32 is suitable for both three-phase and single-phase motor applications. The rated operational power AC-3 (Pe) for a three-phase, 400V application is 15 kW.

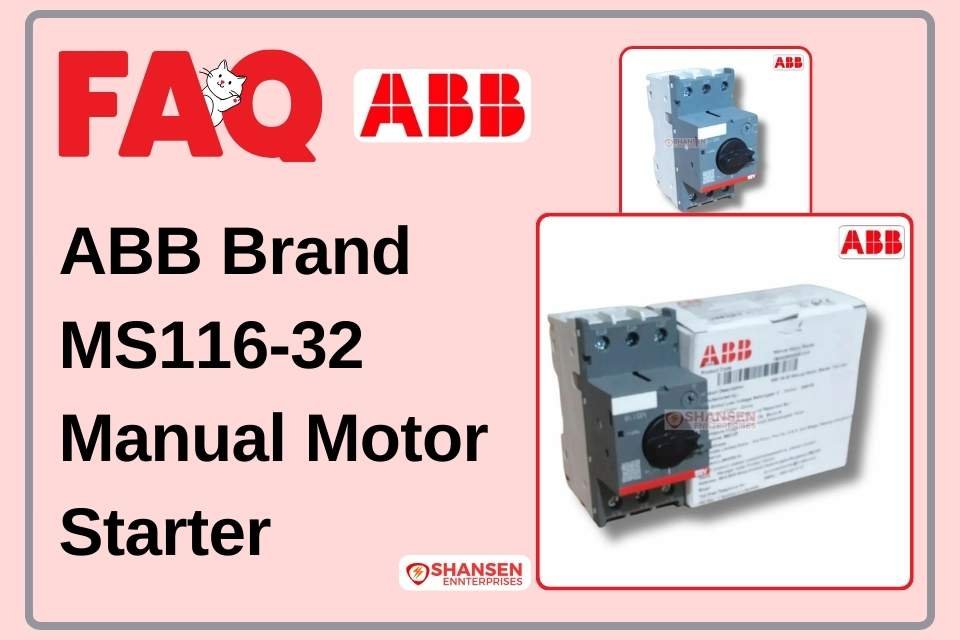

ABB MS116-32 Manual Motor Starter
Shansen Enterprises advertises the ABB MS116-32 Manual Motor Starter, highlighting its compact design and reliable protection for motors in single and three-phase applications. The motor starter offers overload, short circuit, and phase failure protection, eliminating the need for additional fuses and ensuring cost-effective operation. Key features include short-circuit breaking capacity, trip class 10A, built-in disconnect function, and temperature compensation. The device is suitable for industrial and commercial settings, and accessories are available to enhance functionality. Shansen Enterprises, located in Coimbatore, India, is presented as a trusted supplier of ABB electrical products.
