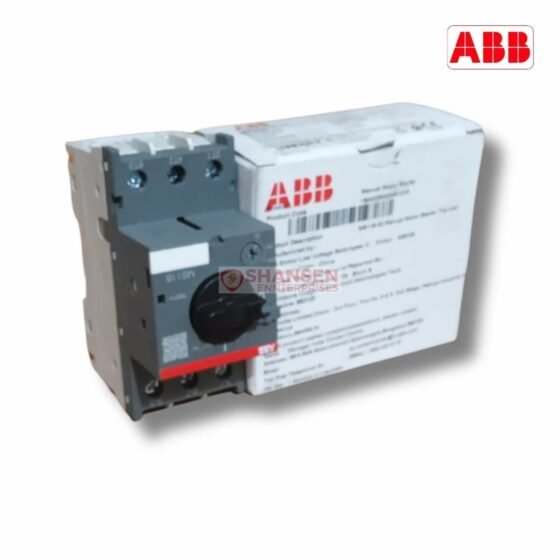

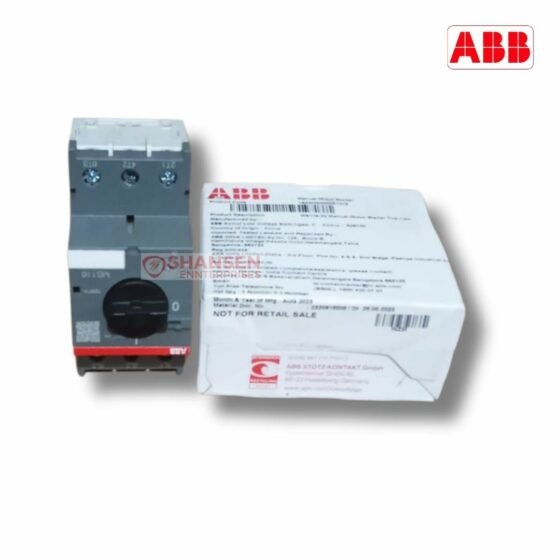

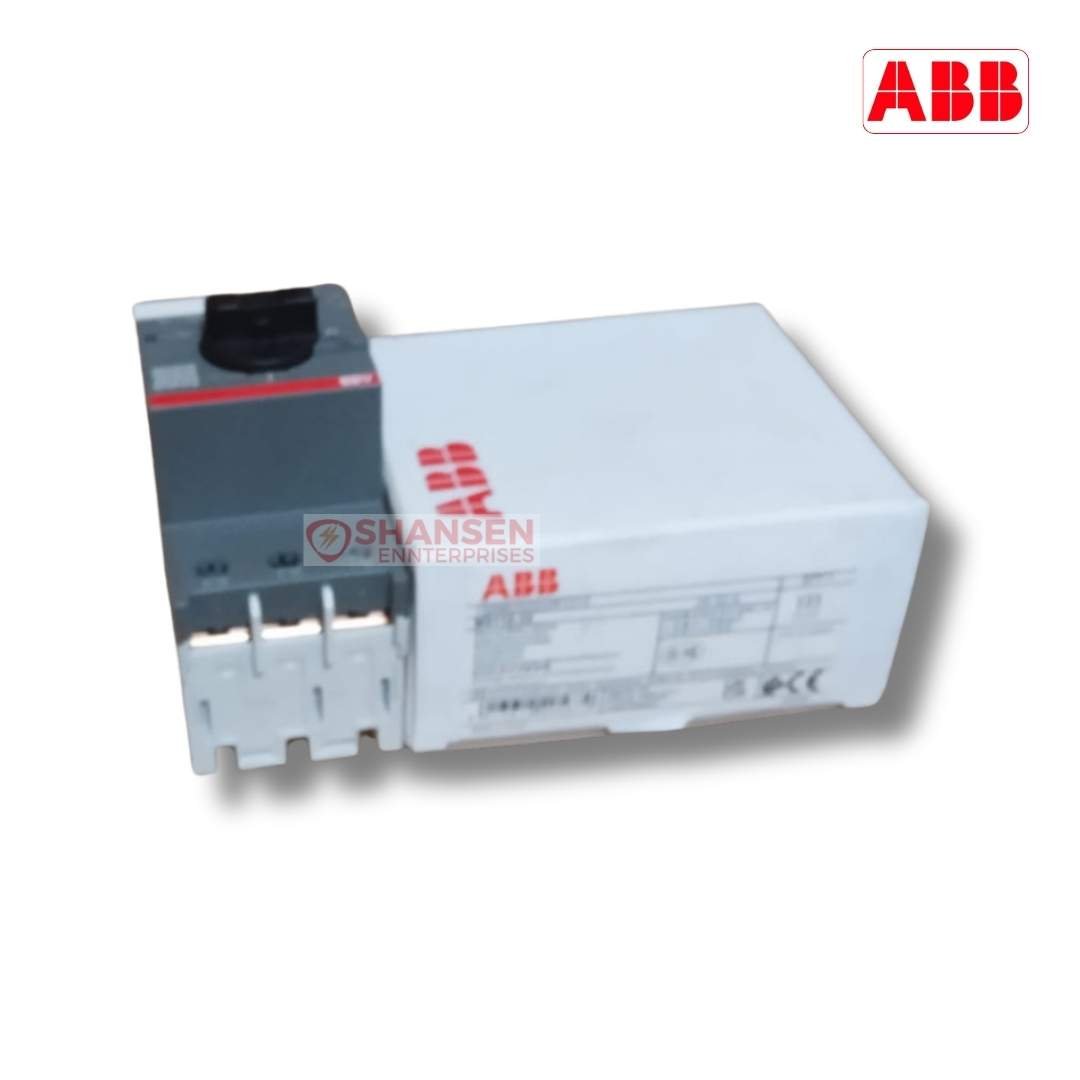

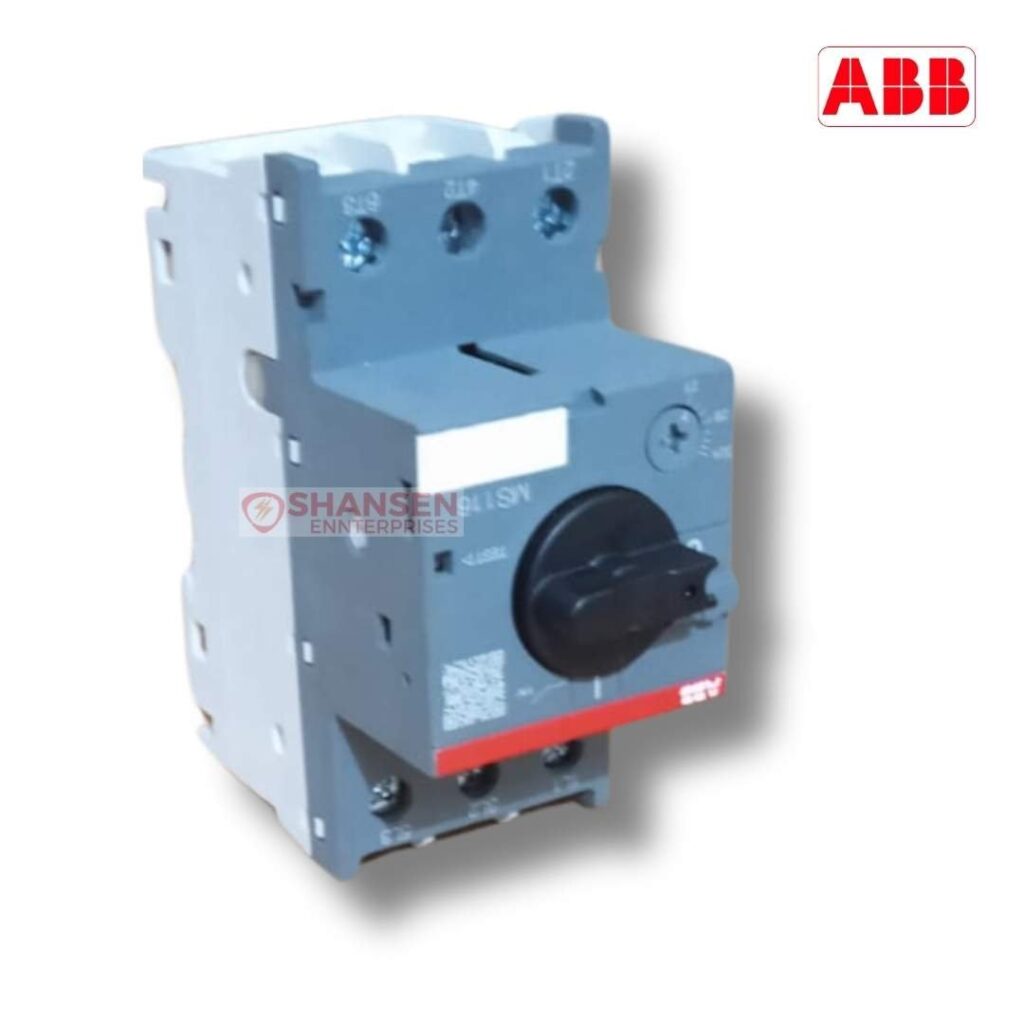

Description
Technical Specification | Details |
---|---|
Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 10 kA (400 V AC) 10 kA (440 V AC) 3 kA (500 V AC) 3 kA (690 V AC) 2 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 16 kA (400 V AC) 16 kA (440 V AC) 15 kA (500 V AC) 10 kA (690 V AC) 3 kA |
Rated Instantaneous Short-Circuit Current Setting (Ii) | 480 A |
Setting Range | 25 … 32 A |
Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 15 kW |
Rated Operational Voltage | Main Circuit 690 V AC |
Rated Operational Current (Ie) | 32 A |
Rated Frequency (f) | Main Circuit 50 Hz Main Circuit 60 Hz |
Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
Rated Insulation Voltage (Ui) | 690 V |
Power Loss | 1.9 … 3.1 W per pole |
Number of Poles | 3P |
Degree of Protection | Housing IP20 Main Circuit Terminals IP10 |
Pollution Degree | 3 |
Electrical Durability | 50000 cycles |
Mechanical Durability | 100000 cycles |
Terminal Type | Screw Terminals |
Standards | IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1 |
