Many customers ask about the ABB B6-30-01-01 Mini Contactor. To streamline your purchase, we’ve compiled essential details on its specifications, features, and benefits to help you make an informed decision.
Frequently Asked Questions about the ABB B6-30-01-01 Mini Contactor

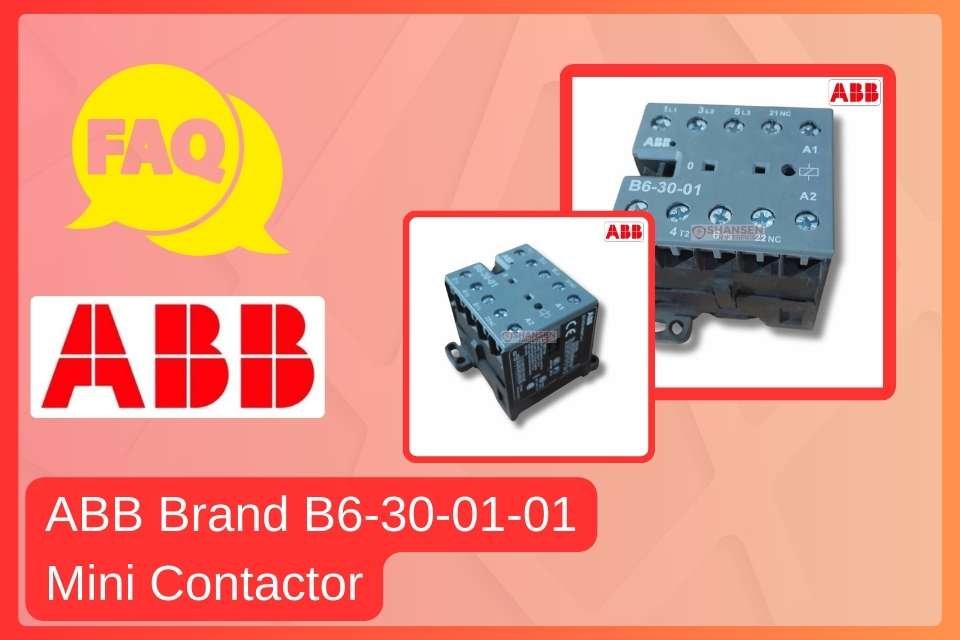

The ABB B6-30-01-01 Mini Contactor is a compact and robust 3-pole contactor designed for switching power in various applications. It is suitable for managing single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1). This makes it ideal for controlling motors, lighting, heating, and other electrical loads. It is used in residential, commercial, and industrial settings.
Key features of this mini contactor include a compact design for space efficiency, silent coil operation suitable for noise-sensitive environments, versatile mounting options (DIN rail or wall mounting), and a visual status indicator to display the contactor’s operational state. It has screw terminals for secure connections and includes one auxiliary contact.
This mini contactor is designed for a variety of settings, including:
Residential Buildings: For controlling control signals and low-power applications.
Commercial Buildings: For load switching in space-constrained installations.
Industrial Settings: For efficient and quiet load control under demanding operational conditions.
Key specifications include:
3 poles with 3 normally open (NO) main contacts and 1 normally closed (NC) auxiliary contact.
Rated operational voltage: 690 V AC for main and auxiliary circuits, 250 V DC for the auxiliary circuit, and 220 V DC for the main circuit
Rated operational current (AC-1): 20 A up to 40°C (220/240V, 380/440V) , 16 A at 55°C, and 6 A at 690 V
Rated Operational power (AC-3): 2.2 kW at 230 V, 4 kW at 400 V and 500V and 3 kW at 690V
Rated control circuit voltage: 24 V AC
It has a rated impulse withstand voltage of 6 kV for both the main and auxiliary circuits and is rated for insulation at 690 V (600V per UL/CSA).
Various AC and DC rated currents for different applications, and can handle a short circuit current of 64 A for 10s at 40C.
It can be mounted on a DIN rail and the terminals are rated IP20
It has a mechanical durability of 10,000,000 cycles and can switch 600 times per hour for AC-3 and DC loads
The ABB B6-30-01-01 contactor can use flexible wire with or without ferrules and rigid wire. It has a connecting capacity for both the main and auxiliary circuits of 1-2.5mm² for flexible wire with or without ferrules and 1-4mm² for rigid wire. The same dimensions apply for the control circuit wiring. The stripping length for the wiring is 9mm for the main, auxiliary and control circuits.
What are the different electrical switching frequencies this contactor can handle? The maximum electrical switching frequencies for this contactor are:
300 cycles per hour for AC-1 applications.
600 cycles per hour for AC-15, AC-3, DC-1, DC-13, and DC-3 applications.
