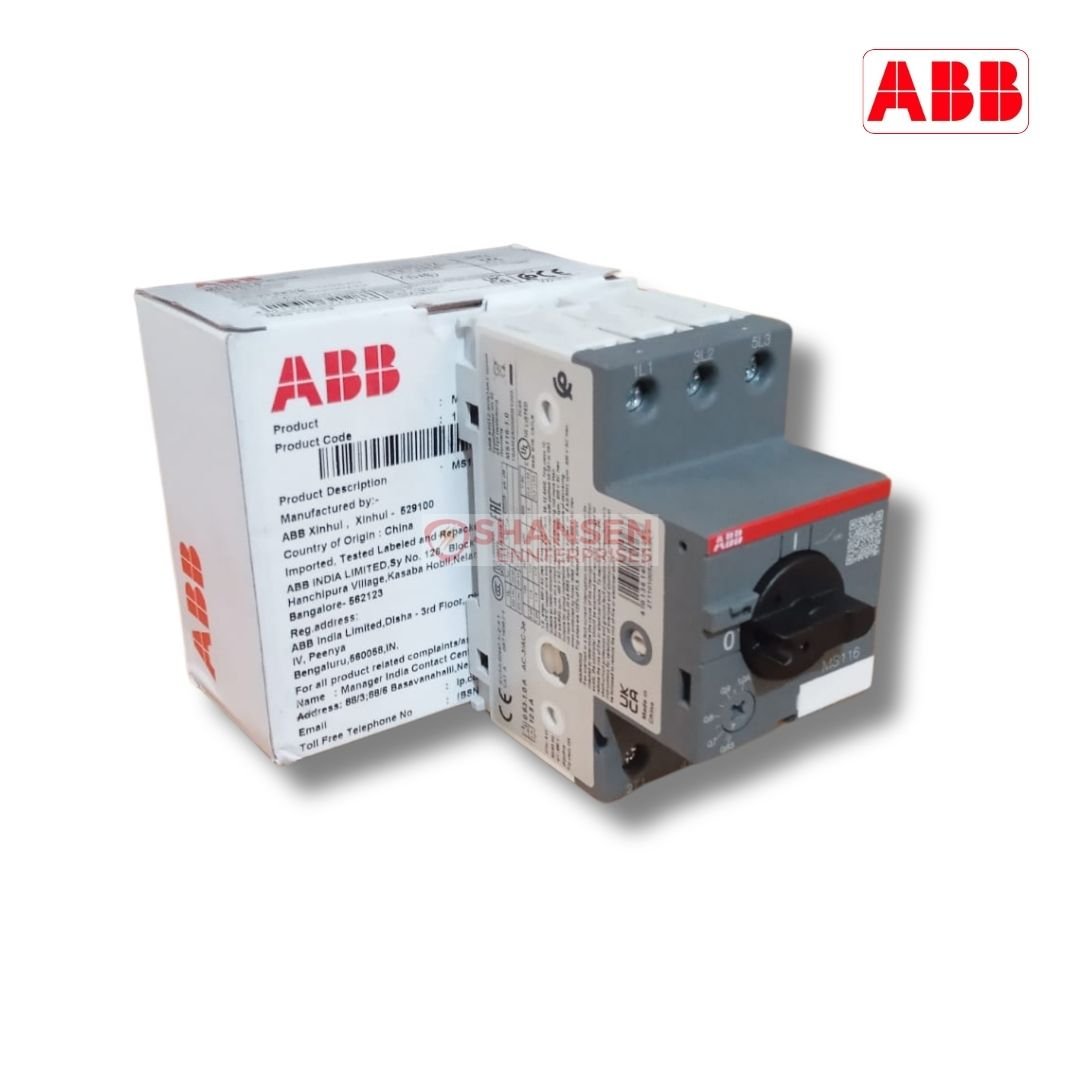

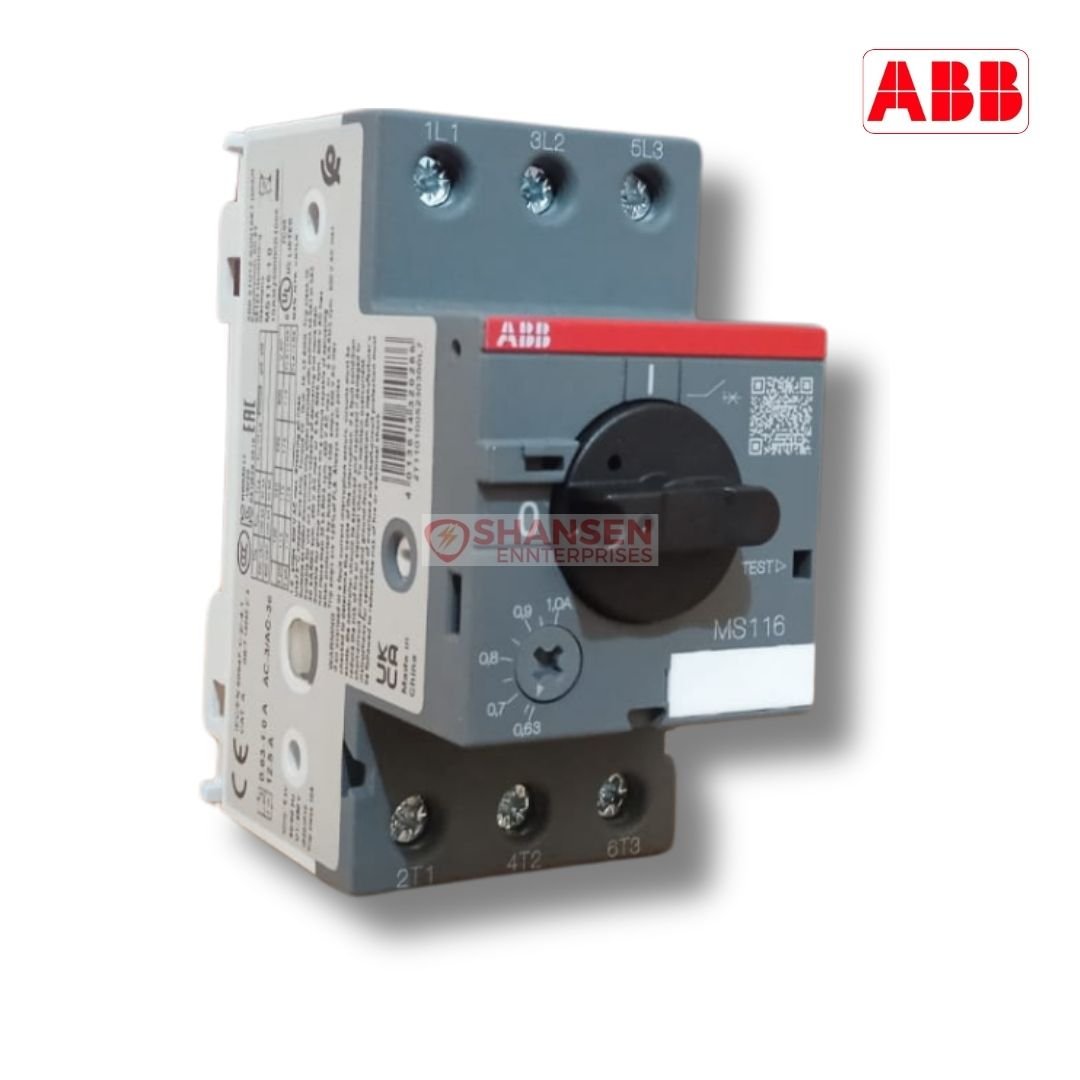

ABB Brand MS116-1.0 Manual Motor Starter (0.63 … 1.0 A)

0.00

Compact and Reliable Motor Protection

The ABB MS116-1.0 Manual Motor Starter is an efficient solution for manual motor control and protection in industrial and commercial applications. This compact device, just 45 mm wide, can handle a rated operational current of 1.0 A. It ensures seamless switching and reliable protection against short circuits, overloads, and phase failures, eliminating the need for additional fuses.

Key Features

  • High Short-Circuit Breaking Capacity: Rated service capacity of 50 kA at 400 VAC, ensuring durability.
  • Trip Class 10A: Fast response to overload conditions for effective motor protection.
  • Built-In Disconnect Function: Offers secure isolation during maintenance.
  • Rotary Handle with Clear Position Indicator: Makes operation intuitive and safe.
  • Temperature Compensation: Enhances performance in varying environmental conditions.
  • Trip-Free Mechanism: Guarantees tripping even if the handle is held in the ON position.
  • Accessory Options: Compatible with auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, and more.

Versatile Applications

Suitable for both three-phase and single-phase systems, the MS116-1.0 delivers outstanding protection and functionality across a variety of setups.

Where to Buy

Find the ABB MS116-1.0 Manual Motor Starter at Shansen Enterprises, your trusted Authorized Channel Partner of ABB Products in Coimbatore. Delivering across India, Shansen Enterprises ensures ready stock availability and 100% customer satisfaction.

👉 Get Your Quote Now! Tap the “Get Quote Via WhatsApp” button on this product page for a fast and easy purchase experience.

Description

Technical Specification Details
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 50 kA
(400 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(690 V AC) 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA
Rated Instantaneous Short-Circuit Current Setting (Ii) 12.5 A
Setting Range 0.63 … 1.0 A
Rated Operational Power AC-3 (Pe) (400 V) Three Phase 0.25 kW
Rated Operational Voltage Main Circuit 690 V AC
Rated Operational Current (Ie) 1 A
Rated Frequency (f) Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp) Main Circuit 6 kV
Power Loss 0.6 … 1.6 W per pole
Number of Poles 3P
Degree of Protection Housing IP20
Main Circuit Terminals IP10
Electrical Durability 100,000 cycles
Mechanical Durability 100,000 cycles
Mounting on DIN Rail TH35-15 (35 x 15 mm)
TH35-7.5 (35 x 7.5 mm)
Standards IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L

Additional information

Brand

ABB

Type

Manual motor starter

Product Net Width

45mm

Product Net Height

90mm

Product Net Depth / Length

85.6mm

Product Net Weight

0.225 kg

Country of origin

China
