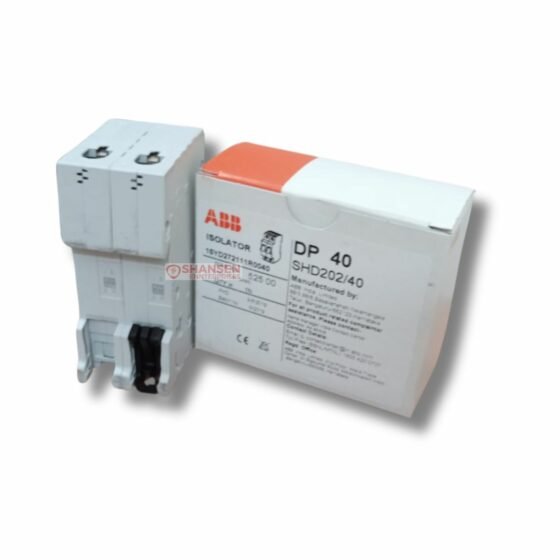

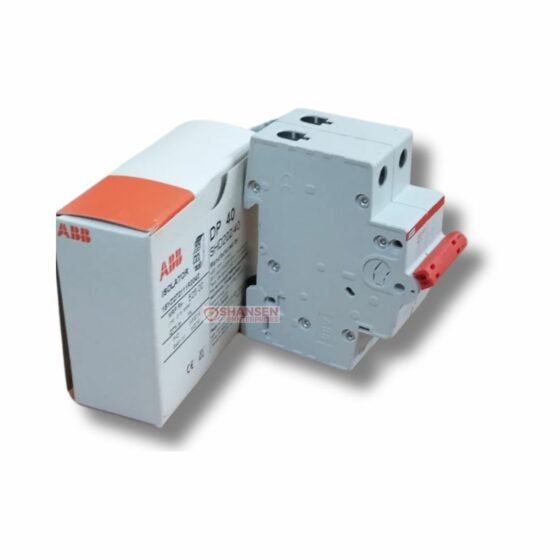

ABB Brand SHD202/40 Switch Disconnector

Power and Precision Combined

The ABB SHD202/40 Switch Disconnector is a reliable and efficient solution for safely managing your electrical circuits. This 2-pole, 40A switch disconnector is designed to meet the rigorous demands of both residential and industrial applications. With a robust rated voltage of 415V and operational capabilities up to 436V AC or 131V DC, this device ensures seamless performance across a range of environments.

Technical Excellence

• Rated Voltage (Ur): 415 V with a minimum of 12 V.
• Operational Voltage: Max 436 V AC / 131 V DC, Min 12 V AC.
• Impulse Withstand Voltage (Uimp): 4 kV at 2000m, 5 kV at sea level, with a peak of 6.2 kV.
• Rated Current (In): 40 A, ensuring consistent power distribution.
• Short-Circuit Current (Inc): Withstands up to 10 kA.
• Rated Frequency: 50 / 60 Hz, compatible with both AC and DC.
• Power Loss: Efficient with only 2.53 W loss per pole at rated conditions.
• Endurance: 10,000 electrical cycles, 20,000 mechanical cycles for long-lasting reliability.
• Overvoltage Category: III, offering high resistance to transient overvoltages.

Built for Versatility

• Actuator Type: Toggle, with intuitive I / O markings.
• Housing Material: Insulation Group I, in a durable RAL 7035 grey.
• Mounting Position: Flexible installation in any position.
• Terminal Connections: Screw terminals with cable clamp, supporting flexible (0.75 – 16 mm²), rigid (0.75 – 25 mm²), and stranded (0.75 – 25 mm²) cables.
• Utilization Categories: Ideal for switching resistive and inductive loads with frequent actuation, categorized as DC-21A and AC-22A.

Where to Buy

Available at Shansen Enterprises in Coimbatore, your trusted Authorized Channel Partner for ABB products. Serving customers across India, Shansen Enterprises provides ready stock and fast, reliable service. Get an easy quote through WhatsApp directly from this product page.
