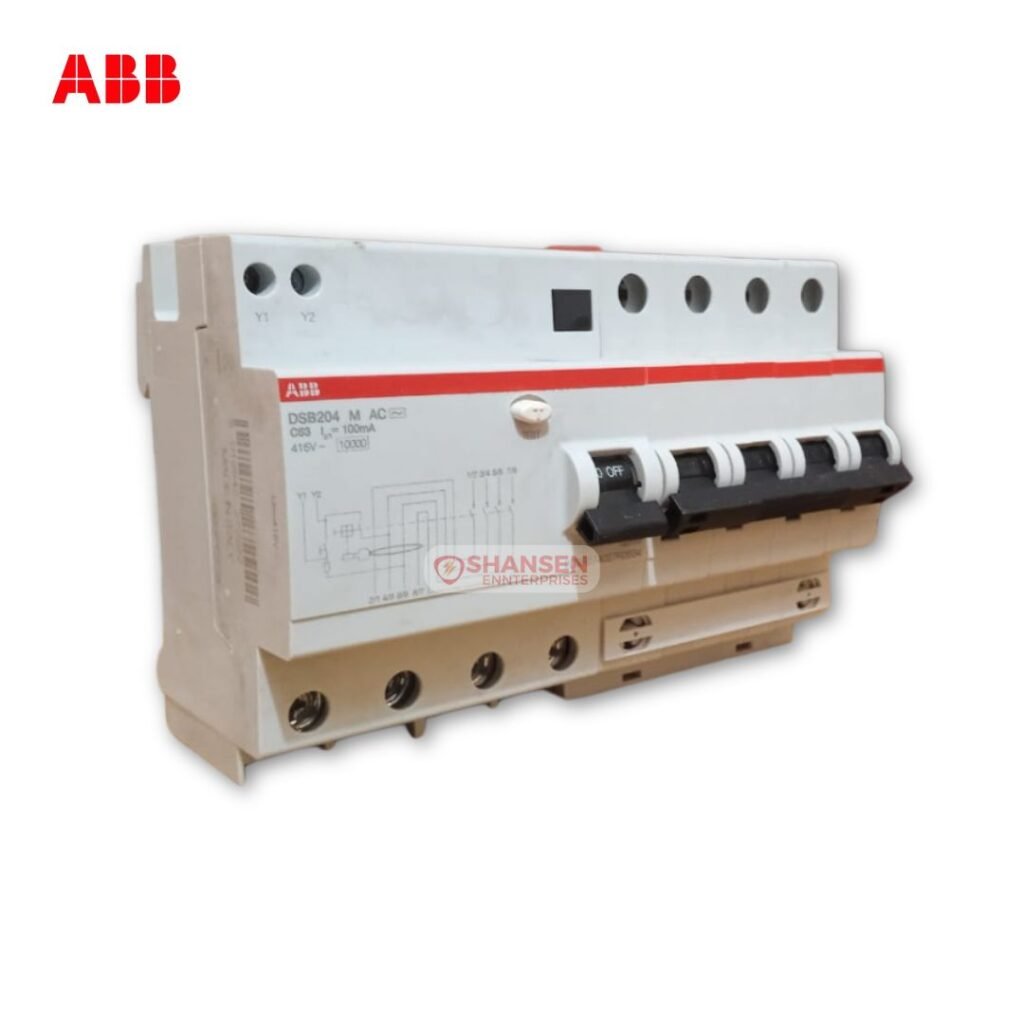

ABB DSB204M AC-C63 100mA RCCB with overcurrent protection – supplied by Shansen Enterprises, Authorized ABB Channel Partner

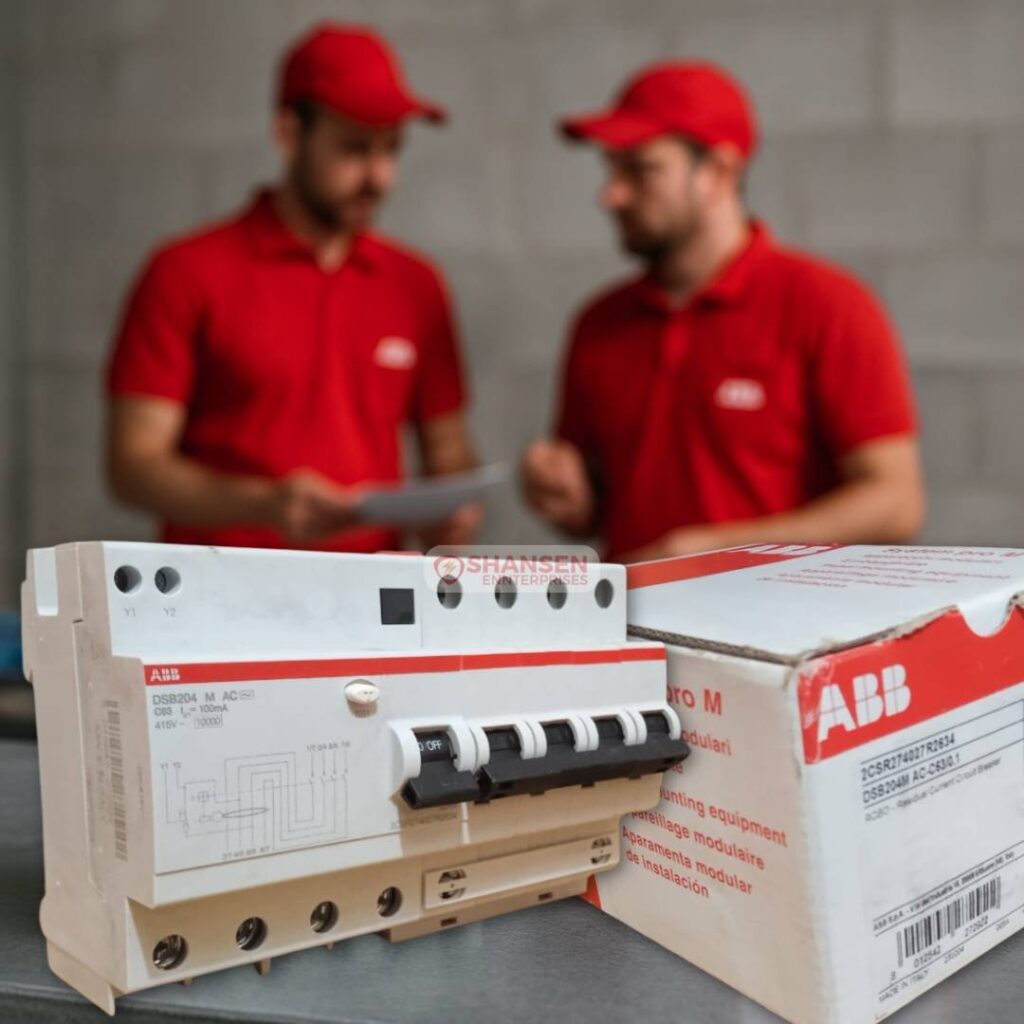

ABB DSB204M AC-C63/0.1 RCCB with box – 63A 100mA Residual Current Circuit Breaker by Shansen Enterprises, ABB Channel Partner

ABB DSB204M RCCB 63A 100mA in original open box packaging – Supplied by Shansen Enterprises, ABB Authorized Channel Partner

ABB DSB204M AC-C63 RCCB original box label close-up – Supplied by Shansen Enterprises, Authorized ABB Channel Partner

ABB DSB204M AC-C63/0.1 RCCB with Overcurrent Protection

Name: ABB DSB204M AC-C63/0.1 RCCB with Overcurrent Protection
Brand: ABB
SKU: 7426
Availability: InStock

₹0.00

ABB DSB204M AC-C63/0.1 RCCB with Overcurrent Protection – 63A, 100mA, 4-Pole

Looking for dependable protection in your electrical system? The ABB DSB204M AC-C63/0.1 Residual Current Circuit Breaker (RCCB) with overcurrent protection is engineered for safety and durability. With a rated current of 63A and 100mA sensitivity, this device combines the functions of an MCB and RCCB, making it ideal for residential, commercial, and light industrial installations. Made by ABB, a global leader in electrical technology, this unit guarantees consistent performance in high-demand environments.

Key Features at a Glance:

✅ Model: DSB204M AC-C63/0.1
✅ Product ID: 2CSR274027R2634
✅ Rated Current (In): 63 A
✅ Rated Residual Current: 100 mA
✅ Tripping Characteristic: C
✅ Rated Operational Voltage: 415 V AC
✅ Operational Voltage: 195–300 V (for 30 mA)
✅ Rated Insulation Voltage (Ui): 500 V AC
✅ Impulse Withstand Voltage (Uimp): 4 kV
✅ Overvoltage Category: III
✅ Short-Circuit Capacity: 10,000 A
✅ Frequency: 50 Hz
✅ Dimensions: 140 mm (W) x 93 mm (H) x 69 mm (D)

Why Choose This Product:

The ABB DSB204M AC-C63/0.1 offers a seamless blend of earth leakage and overcurrent protection in a single device, minimizing installation space and maximizing safety. It’s designed to trip reliably in the event of faults such as insulation failures or overloads. With ABB’s advanced engineering, you get peace of mind knowing your electrical network is safeguarded to global standards.

Ideal For:

Residential buildings
Commercial complexes
Small-scale industrial units
Data centers
Educational institutions

Request a Quote via WhatsApp!

Shansen Enterprises is an Authorized Channel Partner of ABB, trusted for 100% genuine products and exceptional customer service. Tap below to get a personalized quote on WhatsApp – fast, friendly, and reliable!

Description
Additional information

Description

Technical Specification	Details
Type of Residual Current	Type AC
Dielectric Test Voltage	2.5 kV
Rated Service Short-Circuit Breaking Capacity (Ics)	7.5 kA
Contact Position Indication	Red ON / Green OFF
Energy Limiting Class	3
Electrical Endurance	10,000 cycles
Mechanical Endurance	20,000 cycles
Number of Protected Poles	8
Number of Poles	4P
Operating Characteristic	Instantaneous
Tightening Torque	2.8 N·m
Accessory Type	ALL
Actuator Type	Insulation group II, Black RAL 9005, sealable in ON-OFF positions
Housing Type	Insulation group I – II, RAL 7035
Screw Terminal Type	Failsafe Bi-directional Cylinder-lift Terminal
Accessories Available	Yes
Number of Batteries	0
Connecting Capacity	Rigid 35 mm² / Flexible 25 mm²
Wire Stripping Length	12 mm

Additional information

Brand	ABB
Model	DSB204M AC-C63/0.1
Product ID	2CSR274027R2634
Rated Current	63 A
Rated Residual Current	100 mA
Tripping Characteristic	C
Rated Operational Voltage	415 V AC
Operational Voltage	195–300 V (for 30 mA)
Rated Insulation Voltage (Ui)	500 V AC
Rated Impulse Withstand Voltage	4 kV
Overvoltage Category	III
Short-Circuit Capacity	10,000 A
Frequency	50 Hz
Width	140 mm
Height	93 mm
Depth	69 mm
Input Voltage Type	AC
Country of Origin	Italy
