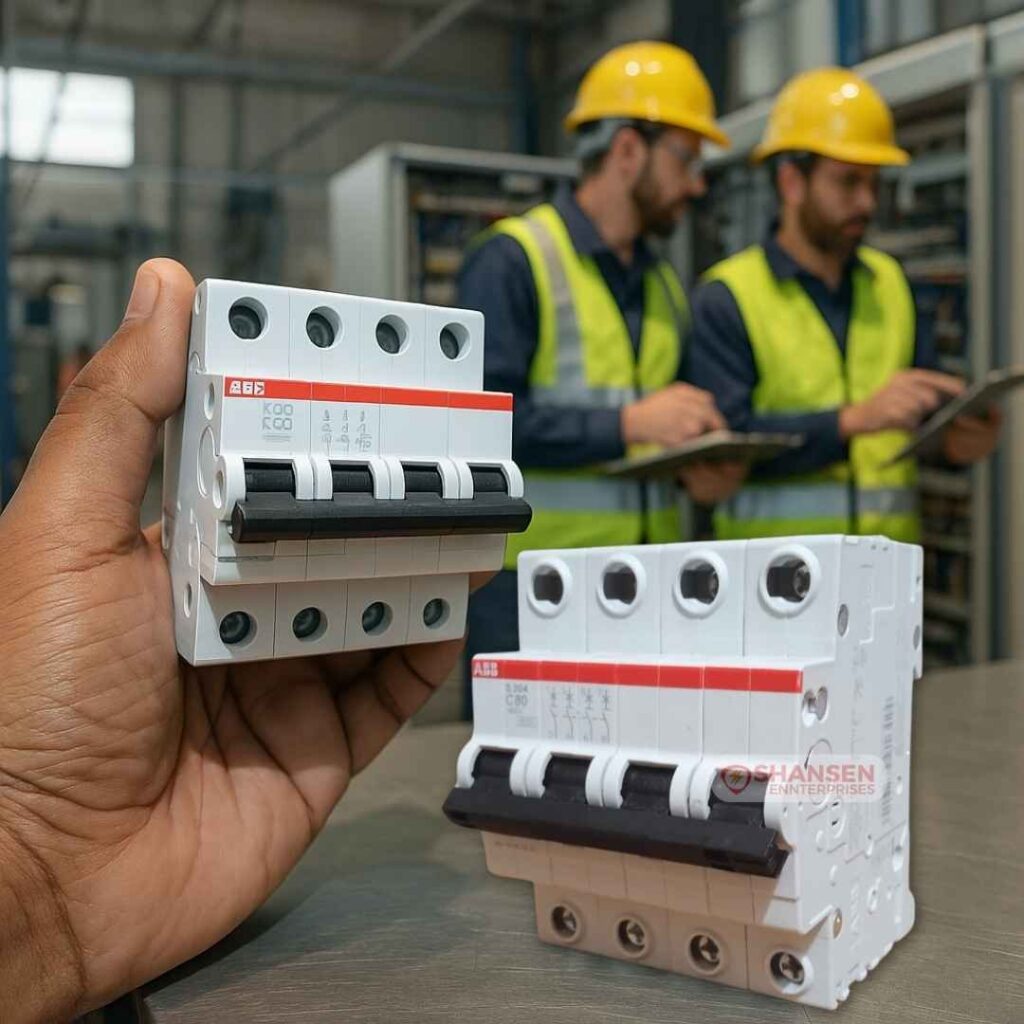

ABB S204-C80 Miniature Circuit Breaker | 80A, 4P, C Curve, 6kA | Product ID: 2CDS254001R0804
Protect your power system with the ABB S204-C80 Miniature Circuit Breaker, a premium 4-pole breaker from ABB’s S200 series. Designed to handle medium inrush currents and prevent overloads or short circuits, this C-curve MCB offers dependable safety and performance. Engineered for AC applications up to 440V, it’s ideal for both commercial and industrial settings. With a short-circuit capacity of 6kA and operational resilience in harsh environments, this breaker stands out for its durability and engineering precision.
✅ Model: S204-C80
✅ Product ID: 2CDS254001R0804
✅ Poles: 4P
✅ Rated Current: 80A
✅ Tripping Curve: C (ideal for standard commercial/industrial loads)
✅ Rated Voltage: 400V AC (IEC 60898-1 & 60947-2)
✅ Operational Voltage Range: 12V AC – 440V AC
✅ Short Circuit Capacity: 6kA (AC/DC)
✅ Conditional Short Circuit Current (Inc): 20kA at 230/400V
✅ Rated Frequency: 50/60 Hz
✅ Overvoltage Category: III
✅ Ambient Temp Range: -25°C to +55°C (operation), -40°C to +70°C (storage)
✅ Degree of Protection: IP20 (IP40 with enclosure)
✅ Impulse Withstand Voltage: up to 6.2kV
✅ Power Loss: 8.1W per pole
✅ Compact Size: 70 mm width, 88 mm height, 69 mm depth
✅ Weight: 0.56 kg
The ABB S204-C80 MCB delivers high-performance circuit protection in a compact, modular design. Its C-curve characteristic makes it ideal for standard loads with occasional inrush current, ensuring protection without nuisance tripping. Built to meet both IEC 60898-1 and IEC 60947-2 standards, it’s robust enough for professional installations, offering high reliability even in demanding conditions. With an impressive conditional short-circuit rating of 20kA, it's well-suited for high-stress environments.
Electrical Panels in Industrial Plants
Commercial Building Infrastructure
Power Distribution Boards
HVAC Systems
OEM Machinery
Data Centers
Infrastructure Projects
As an Authorized Channel Partner of ABB, Shansen Enterprises guarantees 100% genuine products and complete customer satisfaction. Message us now on WhatsApp to get your best quote, technical support, and fast delivery options.
Send us a message on WhatsApp or email to get pricing and availability. We respond within 30 minutes.
| Specification | Details |
|---|---|
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 20 kA (230 V AC), 6 kA (400 V AC), 6 kA (400 V) |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA (400 V AC) |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Number of Protected Poles | 4 |
| Number of Poles | 4P |
| Tightening Torque | 3 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 16/16 mm² Conductor 2.5 ... 50 mm² Flexible 4 ... 35 mm² Rigid 2.5 ... 50 mm² Stranded 2.5 ... 50 mm² |
| Installation Size | Acc. to DIN 43880 - 1 |
| Terminal Type | Screw Terminals |
