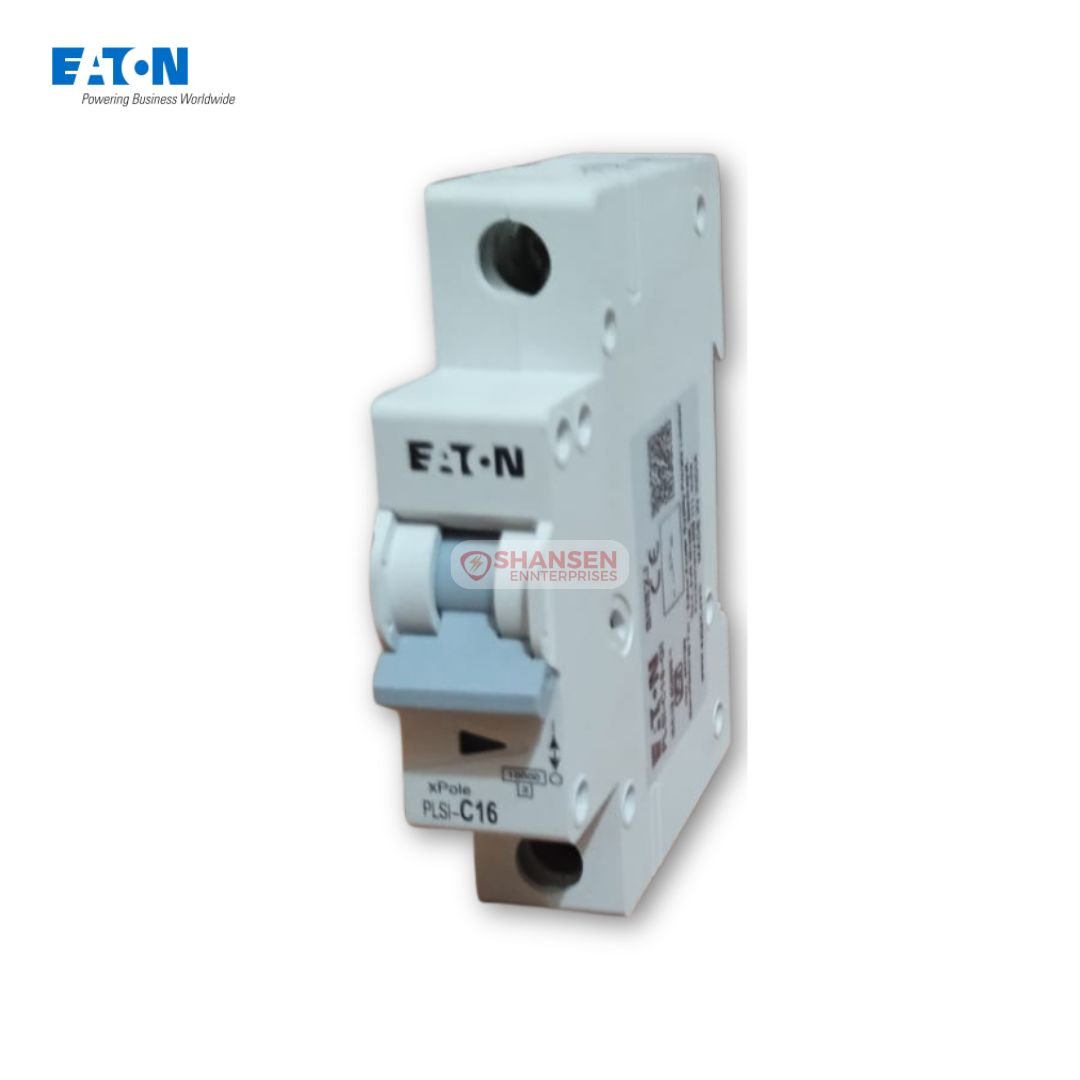

Eaton PLSI-C16 Miniature Circuit Breaker

Discover the Eaton PLSI-C16 GI (Part No. EIN-810142), a “Made for India” single-pole miniature circuit breaker designed to safeguard your residential and light-commercial electrical panels. Rated at 16 A with a C-curve characteristic, it delivers up to 10 kA short-circuit interruption at 240/415 VAC. Built to IS/IEC 60898-1 and EN/IEC 60898-1 standards, it features a quick-break mechanism, true contact position indicator, energy-limiting Class 3 rating, and anti-weld silver-alloy contacts with 13 De-ion plate arc-chutes. With robust mechanical and electrical endurance, IP20 finger-proof terminals, and tool-free DIN-rail mounting, it’s your go-to choice for reliable, cost-effective protection.

Key Features at a Glance

• 16 A rated current, Type C magnetic trip (5–10 × In)

• 10 kA breaking capacity at 240/415 VAC

• Quick-break mechanism for ultra-fast fault clearance

• True contact position indicator (red/green)

• Energy-limiting Class 3 for minimal let-through energy

• Anti-weld silver-alloy contacts + 13 De-ion plate arc-chutes

• Trip-free design prevents manual override under fault

• Bi-connect terminals (line/load) for dual-mode wiring

• 2-position DIN-rail clamp, no tools required

• IP20 finger-proof terminals for enhanced safety

• ISI & CE certified to IS/IEC 60898-1 & EN/IEC 60898-1

Why Choose This Product
Eaton’s PLSI-C16 GI merges high-performance protection with cost-efficiency. Its robust 10 kA interruption capacity and precision C-curve trip ensure both overload and short-circuit faults are cleared swiftly, safeguarding downstream equipment. The quick-break mechanism and anti-weld contacts extend service life, while IP20 terminals and tool-free mounts simplify installation and maintenance. Rigorously tested for 10 000 mechanical and 4 000 electrical cycles across – 5 °C to 50 °C, it thrives in India’s varied climates and provides lasting reliability.

Ideal For

• Residential buildings & apartments

• Small offices & commercial spaces

• Retail shops & boutiques

• Light-industrial control panels

• Agricultural pump and irrigation systems

As an authorized ABB channel partner, Shansen Enterprises offers you genuine Eaton PLSI series breakers with 100% customer satisfaction guaranteed. For a competitive quote, message us directly on WhatsApp.

FAQs

1. What does “C-curve” mean?
   Type C indicates the breaker’s magnetic trip activates at 5–10 times its rated current (16 A), ideal for moderate inrush loads like motors.

2. Can I install this breaker outdoors?
   No; it’s IP20 rated, designed for indoor panels. For outdoor use, a weatherproof enclosure is required.

3. Is a datasheet available?
   Yes, please request the Eaton PLSI-C16 GI datasheet via WhatsApp, and we’ll send it right away.
