Description
| General Specifications | Details |
|---|---|

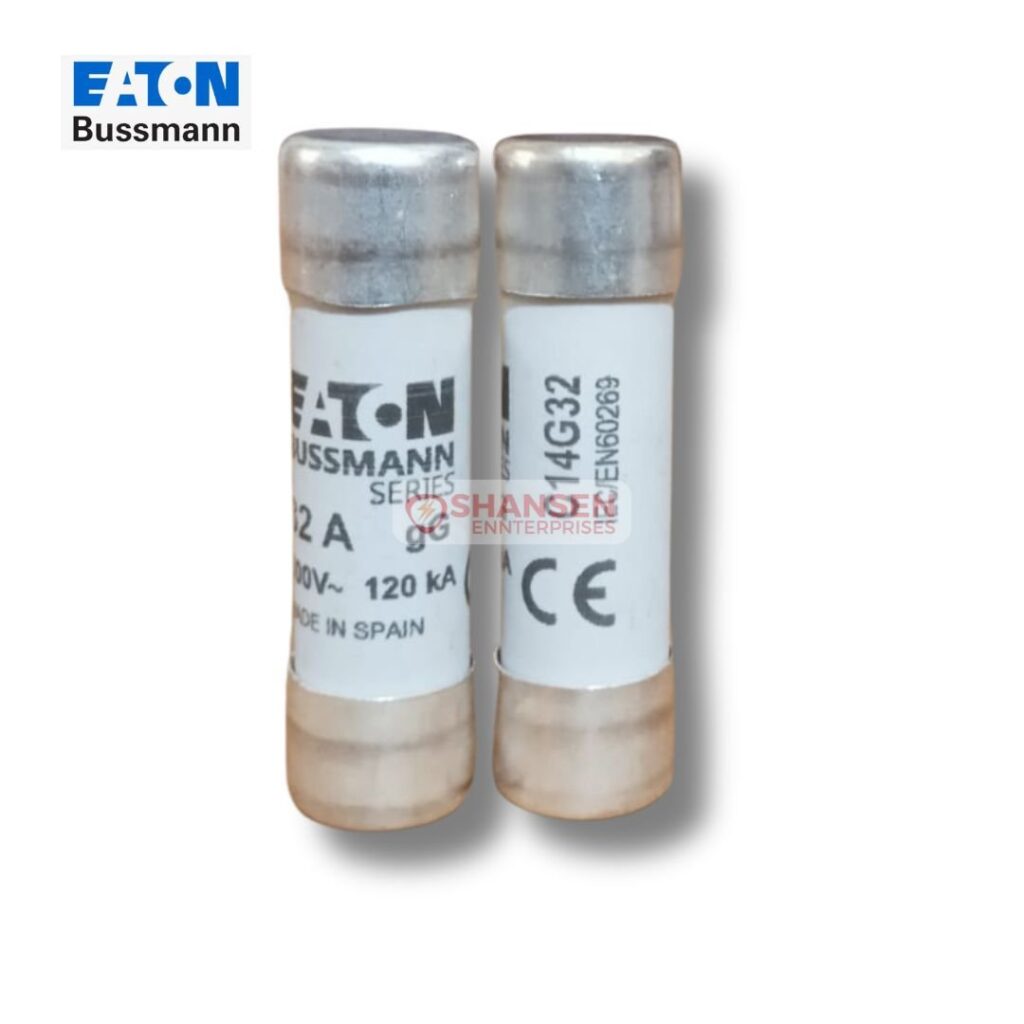

| Product Name | Eaton Bussmann series low voltage cylindrical fuse |
| Catalog Number | C14G32 |
| EAN | 5027590494014 |
| UPC | 051712754408 |
| Product Length/Depth | 51 mm |
| Product Height | 14.3 mm |
| Product Width | 14.3 mm |
| Product Weight | 20.3 g |
| Compliances | CE Marked, GoST-R, RoHS Compliant |
| Certifications | IEC 60269 |
| Product Specifications | Details |
| Type | Fuse |
| Application | For industrial applications, for general-purpose use |
| Amperage Rating | 32 A |
| Fuse Size | 14 x 51 mm |
| Current Type | AC |
| Breaking Capacity | 120 kA |
| Frequency Rating – Max | 62 Hz |
| Frequency Rating – Min | 45 Hz |
| Rated Voltage AC | 500 V |
| Class | Class C gL/gG |
| Fuse Type | C14G |
| Utilization Category | gG (cable protection/equipment protection) |
| Fuse Indicator | Other |
| Watt Losses | 3.5 W |
| Connection | Ferrule end x ferrule end |
| Construction Size | 14 mm x 51 mm |
| Fuse Shape | Cylindrical |
| Voltage Type | AC |
| Suitable For | CH14 Modular Fuse Holder |
| Material | Ceramic |
| Mounting Method | 14 x 51 mm CH Modular Fuse Holder |
| Release Characteristic | Other |
| Quantity | 10 |
| Voltage Rating | 500 V |
