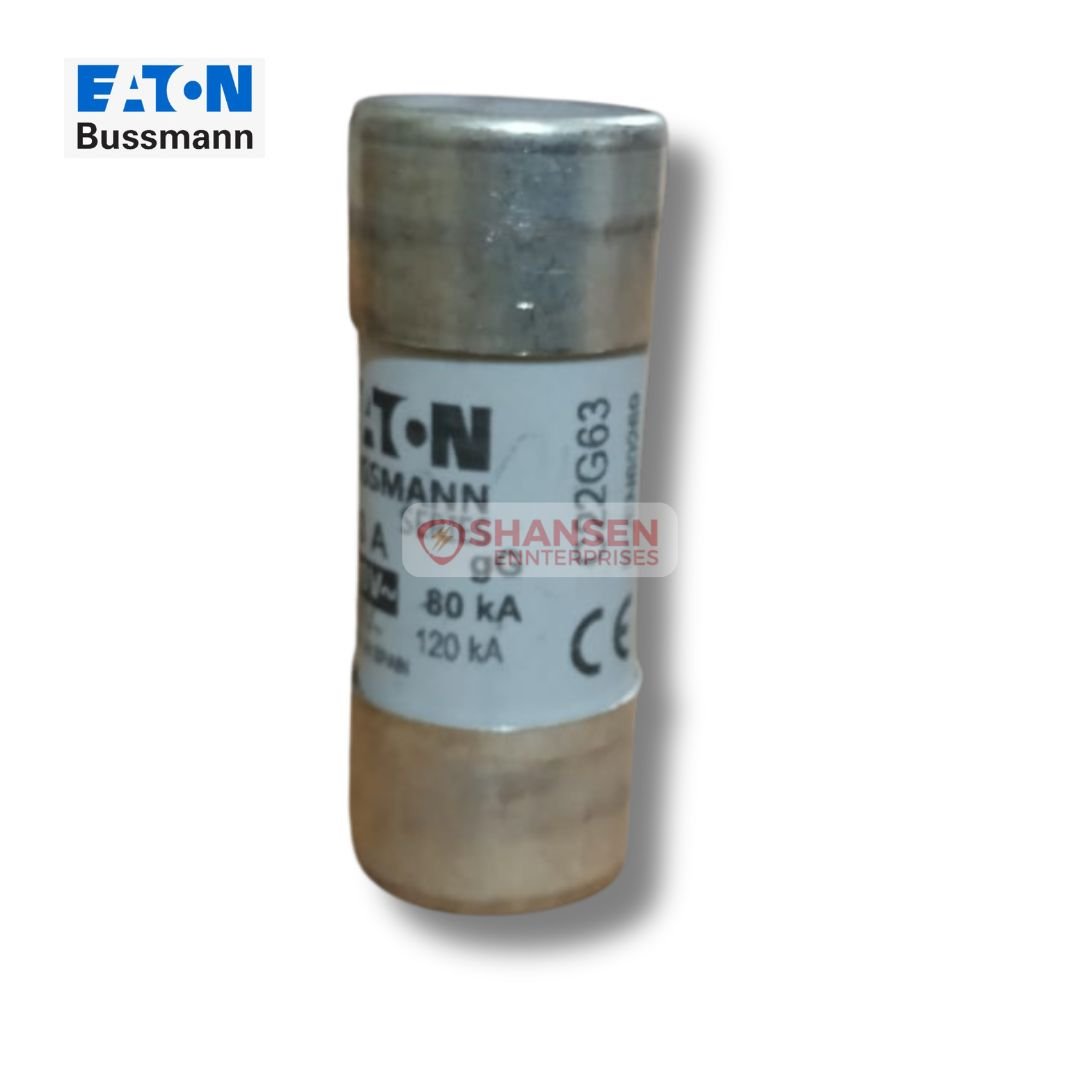

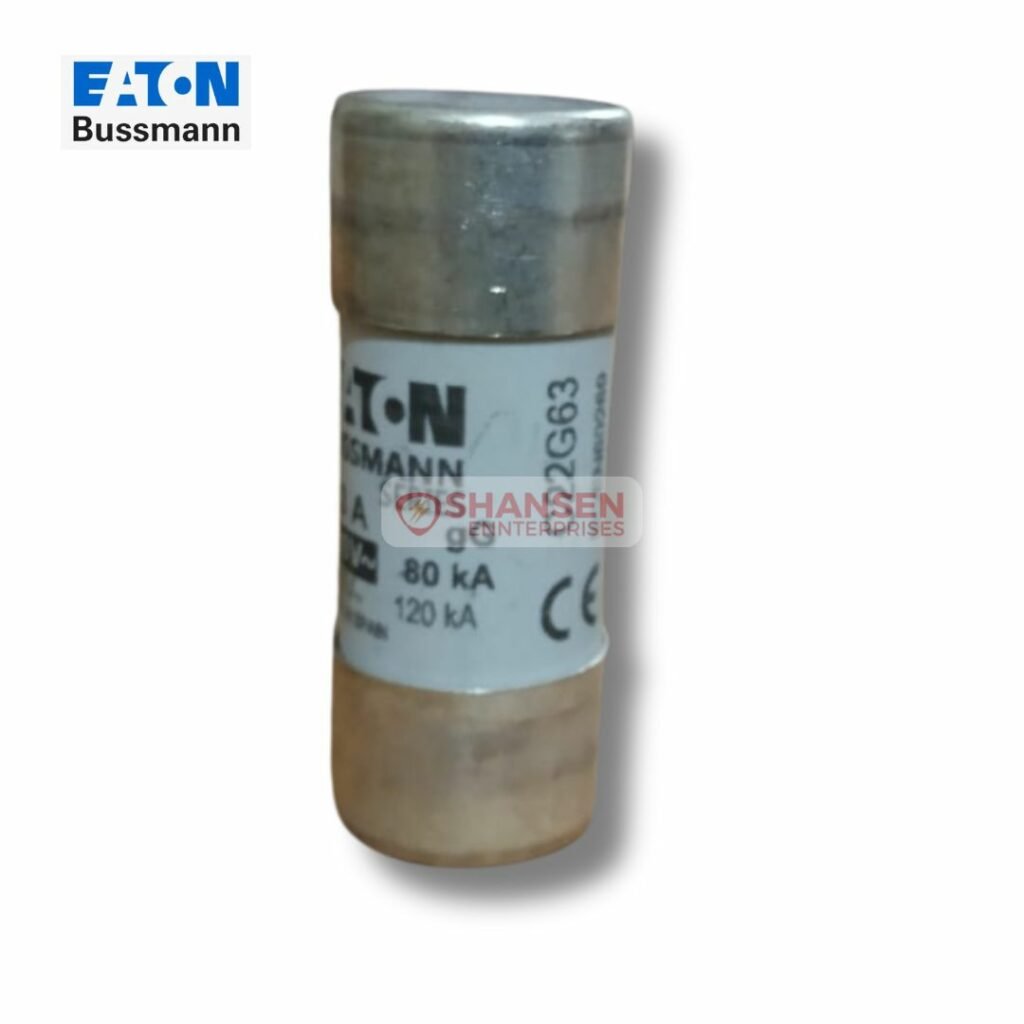

Eaton Bussmann Series Low Voltage Cylindrical Fuse C22G63

0.00

Powerful Performance for Your Electrical Needs

The Eaton Bussmann Series Low Voltage Cylindrical Fuse C22G63 is a reliable solution for protecting electrical systems. Designed with a compact 22 x 58 mm cylindrical build, this fuse is rated at 690 Volts AC with a current capacity of 63 Amps. It features a high breaking capacity of 80 kA to ensure safety during overloads or short circuits. Classified as gG/gL, this fuse delivers universal protection for industrial and domestic circuits, making it a versatile choice.

Key Features

  • High Voltage Rating: Operates efficiently at up to 690V AC.
  • Robust Capacity: Supports up to 63 Amps with an 80 kA breaking capacity.
  • Class gG/gL Protection: Provides full-range protection for circuits.
  • Compatibility: Ideal for use with the CH22 Modular Fuse Holder.
  • No Indicator: Clean design for simple installations.

Where to Buy?

Look no further than Shansen Enterprises in Coimbatore, your trusted Authorized Channel Partner of Eaton Bussmann fuses. They cater to customers across Tamil Nadu (including Madurai, Chennai, Salem, Erode) and other states like Kerala, Telangana, Karnataka, Maharashtra, Gujarat, and West Bengal. With ready stock and efficient delivery methods, your orders are dispatched within 48 hours, ensuring a seamless buying experience.

How to Order?
Click the “Get Quote via WhatsApp” button on the product page and receive a quick response with pricing details.

Description

General Specifications Details
Product Name Eaton Bussmann series low voltage cylindrical fuse
Catalog Number C22G63
UPC 051712754491
EAN 5027590495523
Model Code CYLINDRICAL FUSE 22 x 58 63A GG 690V AC
Product Length/Depth 58 mm
Product Height 22.2 mm
Product Width 22.2 mm
Product Weight 54.8 g
Compliances CE Marked, GoST-R, RoHS Compliant
Certifications IEC 60269
Product Specifications Details
Type Fuse
Application For industrial applications, for general purpose use
Amperage Rating 63 A
Fuse Size 22 x 58 mm
Current Type AC
Breaking Capacity 80 kA
Frequency Rating (Max) 62 Hz
Frequency Rating (Min) 45 Hz
Rated Voltage AC 690 V
Class Class C gL/gG
Fuse Type C22G
Utilization Category gG (Cable Protection/Equipment Protection)
Fuse Indicator Other
Watt Losses 6.9 W
Connection Ferrule End x Ferrule End
Construction Size 22 mm x 58 mm
Fuse Shape Cylindrical
Voltage Type AC
Suitable For CH22 Modular Fuse Holder
Material Ceramic
Mounting Method 22 x 58 mm CH Modular Fuse Holder
Release Characteristic Other

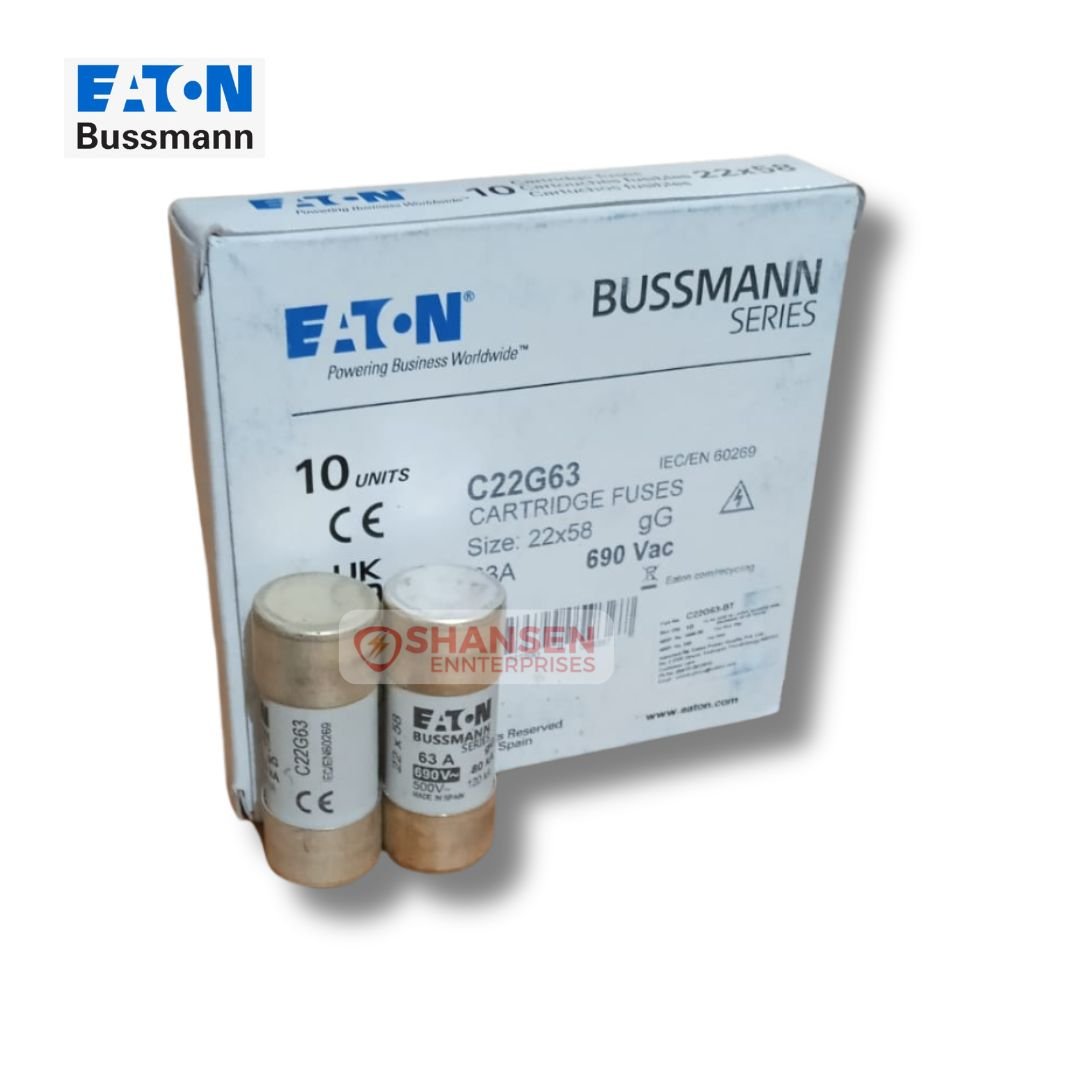

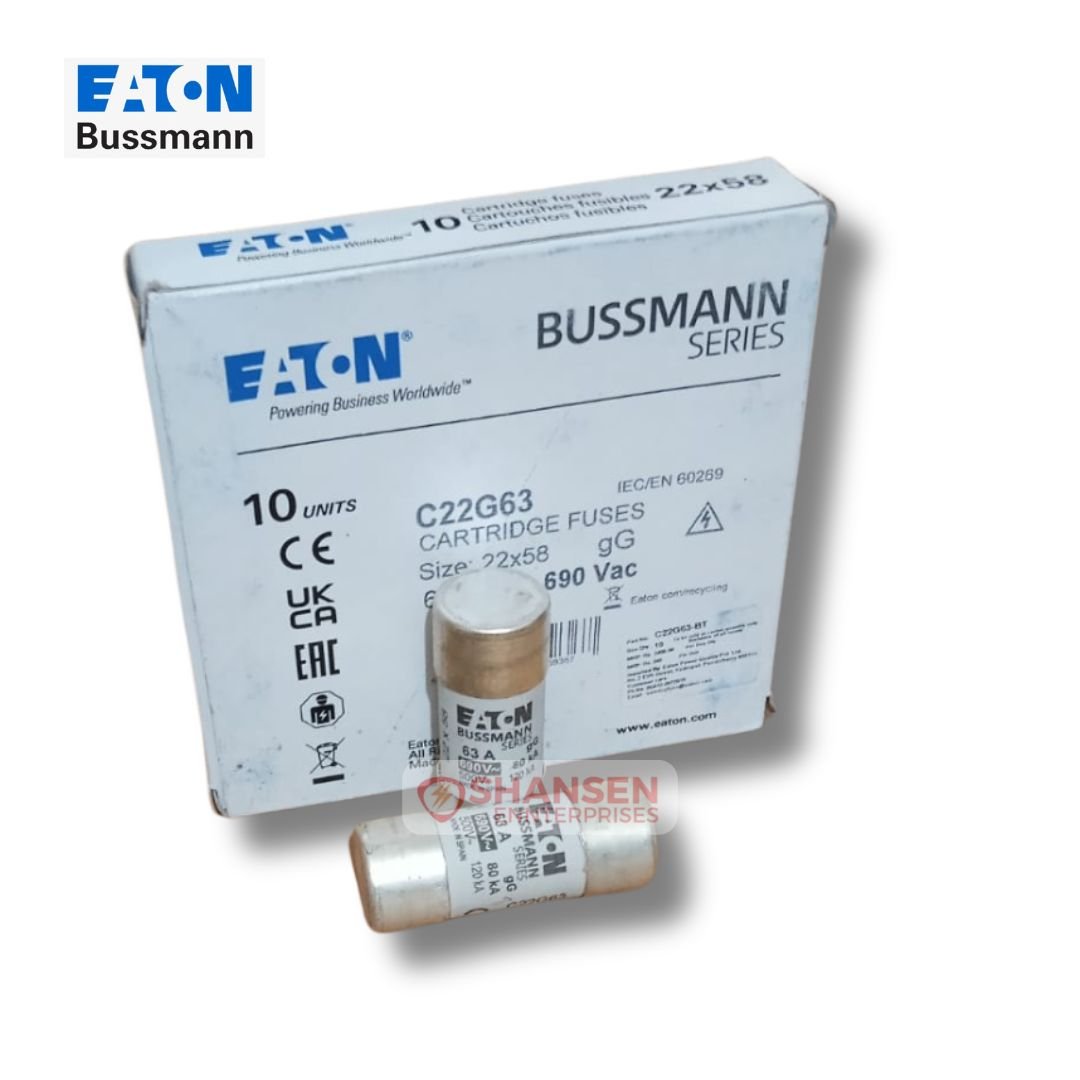

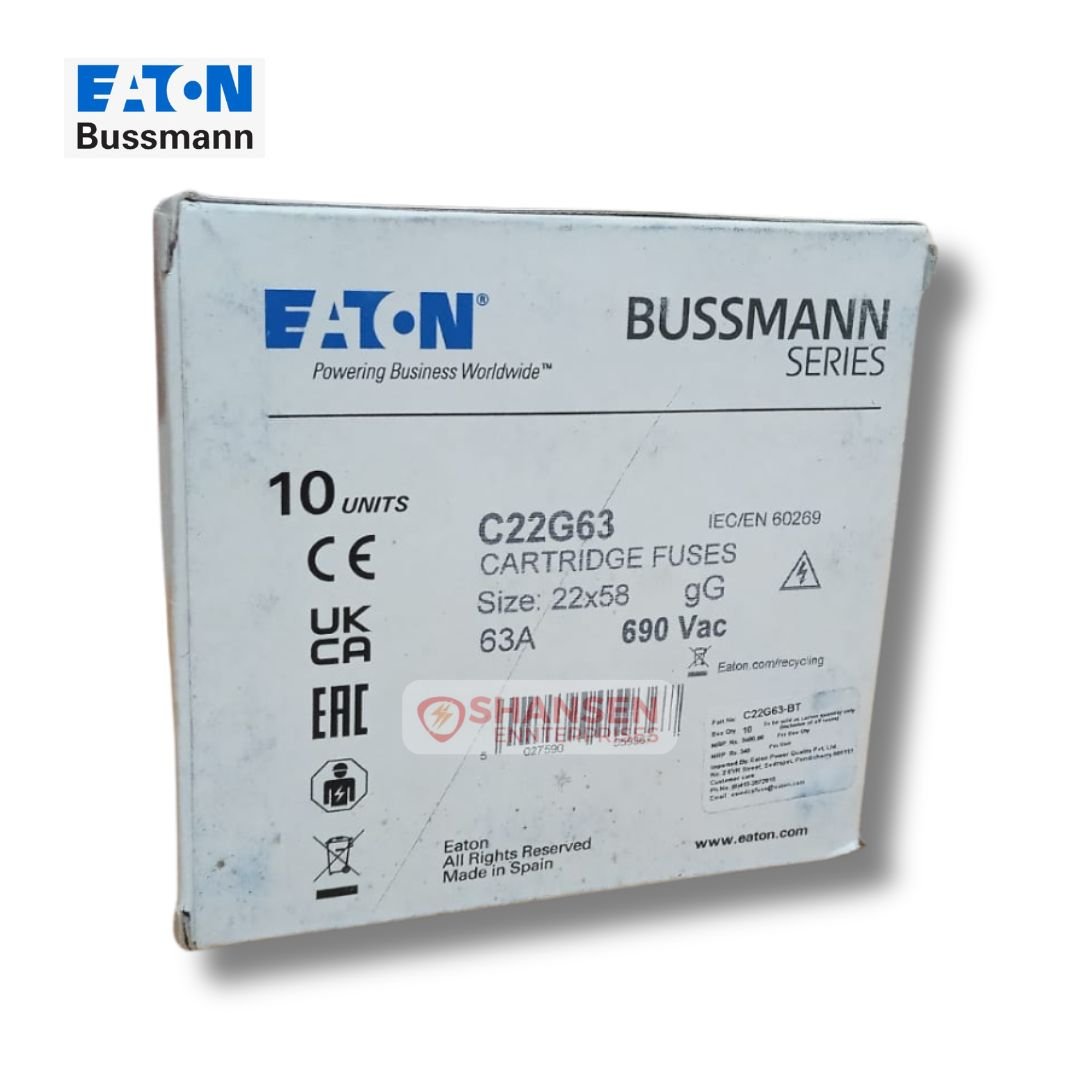

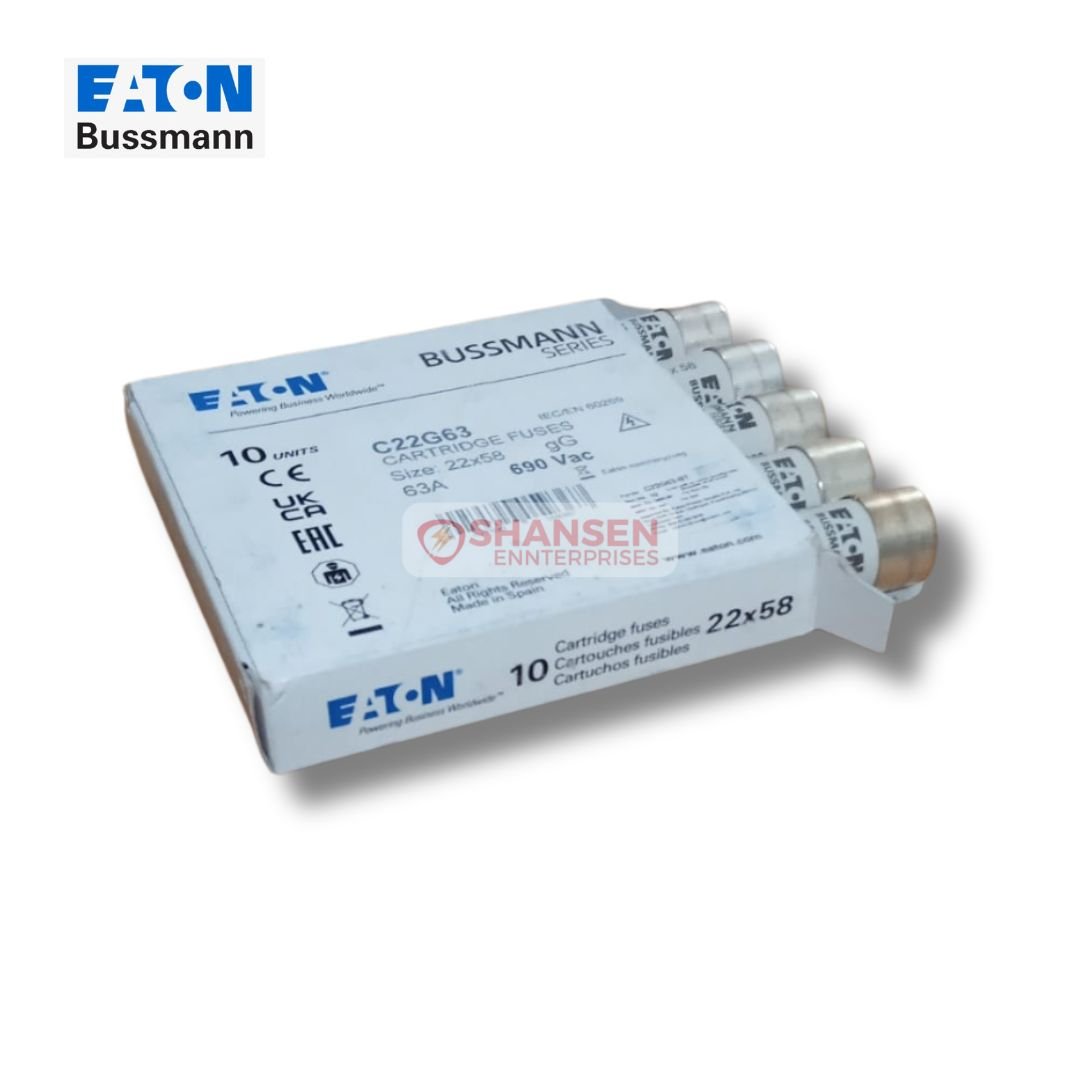

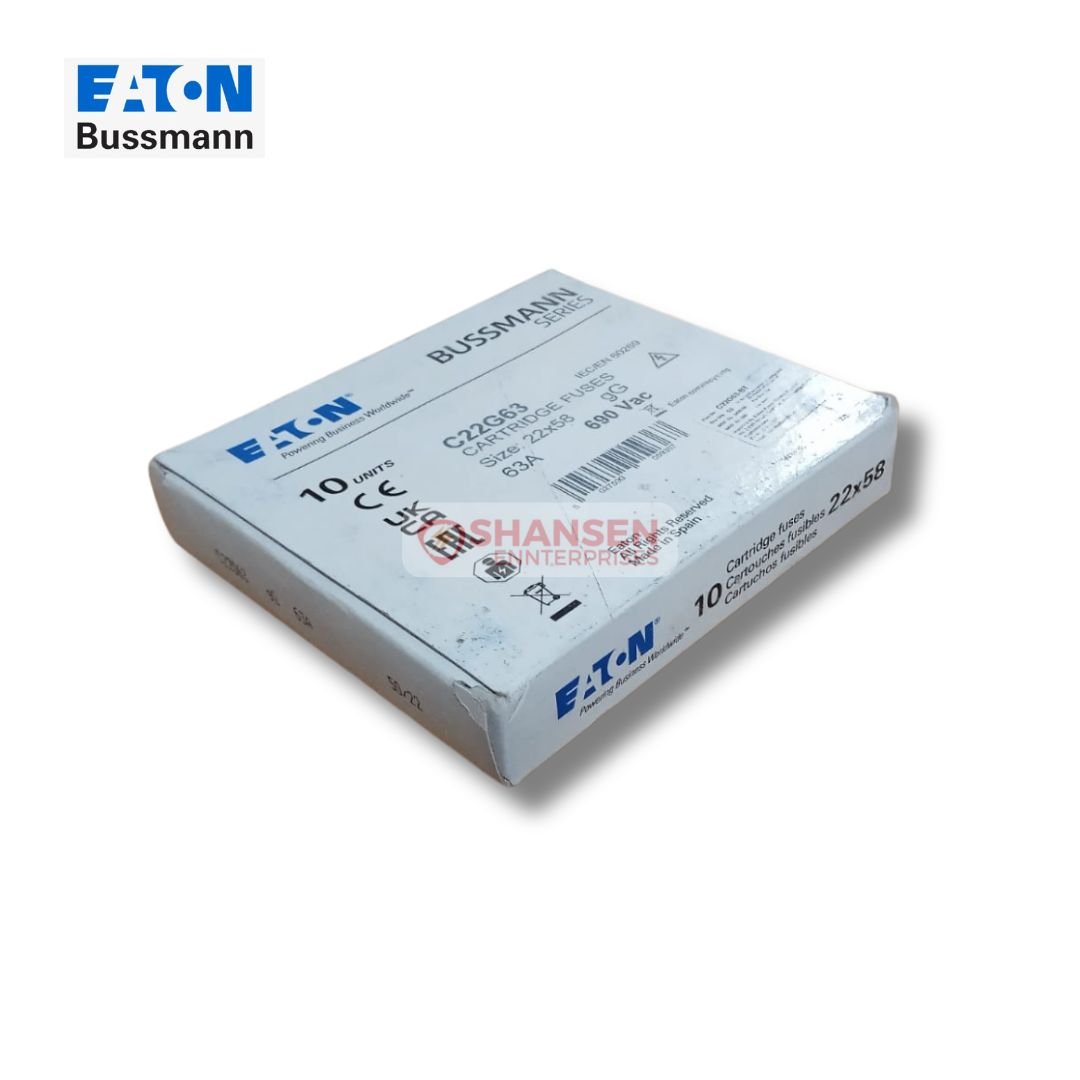

Quantity 10
Voltage Rating 690 V
