Description
General Specifications | |
---|---|

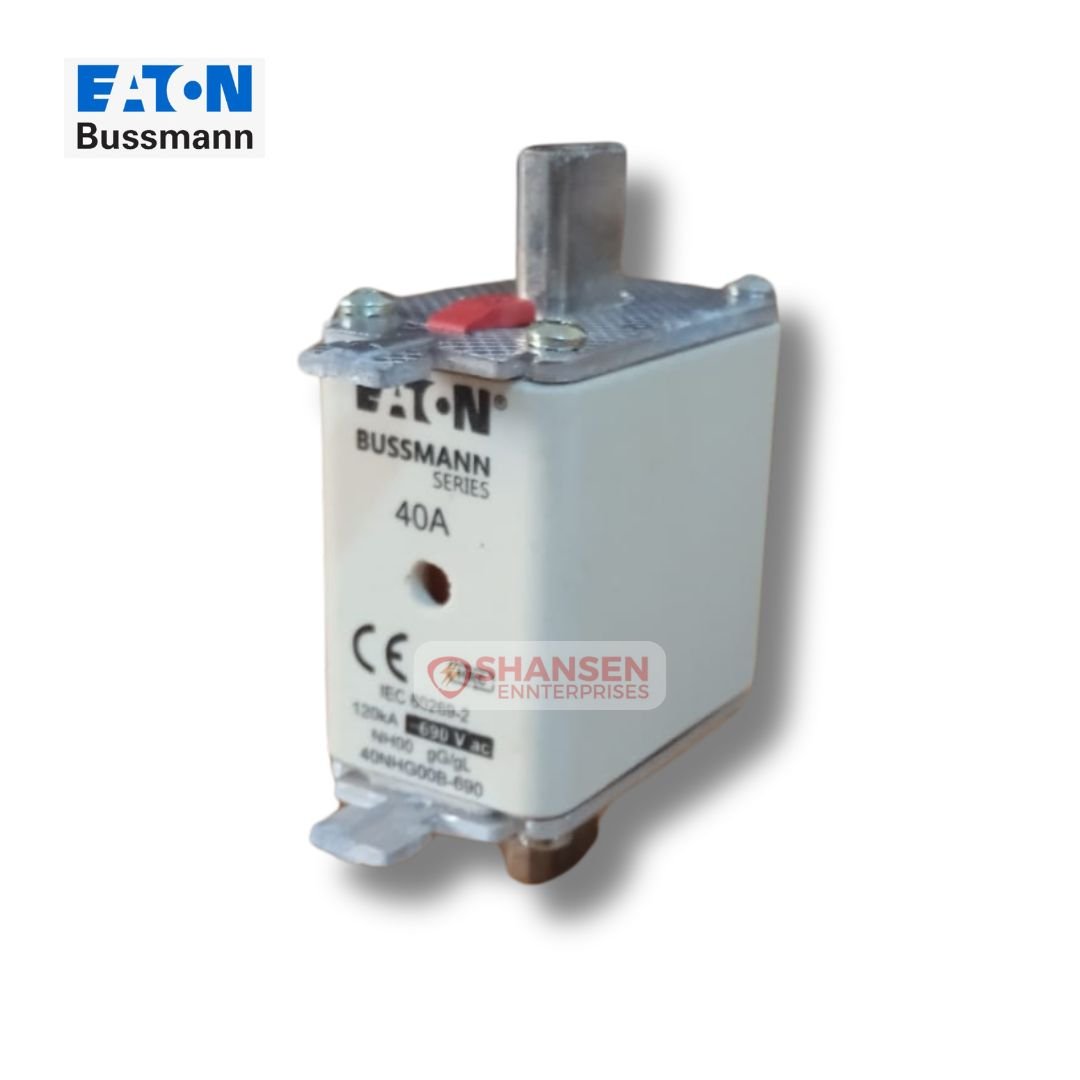

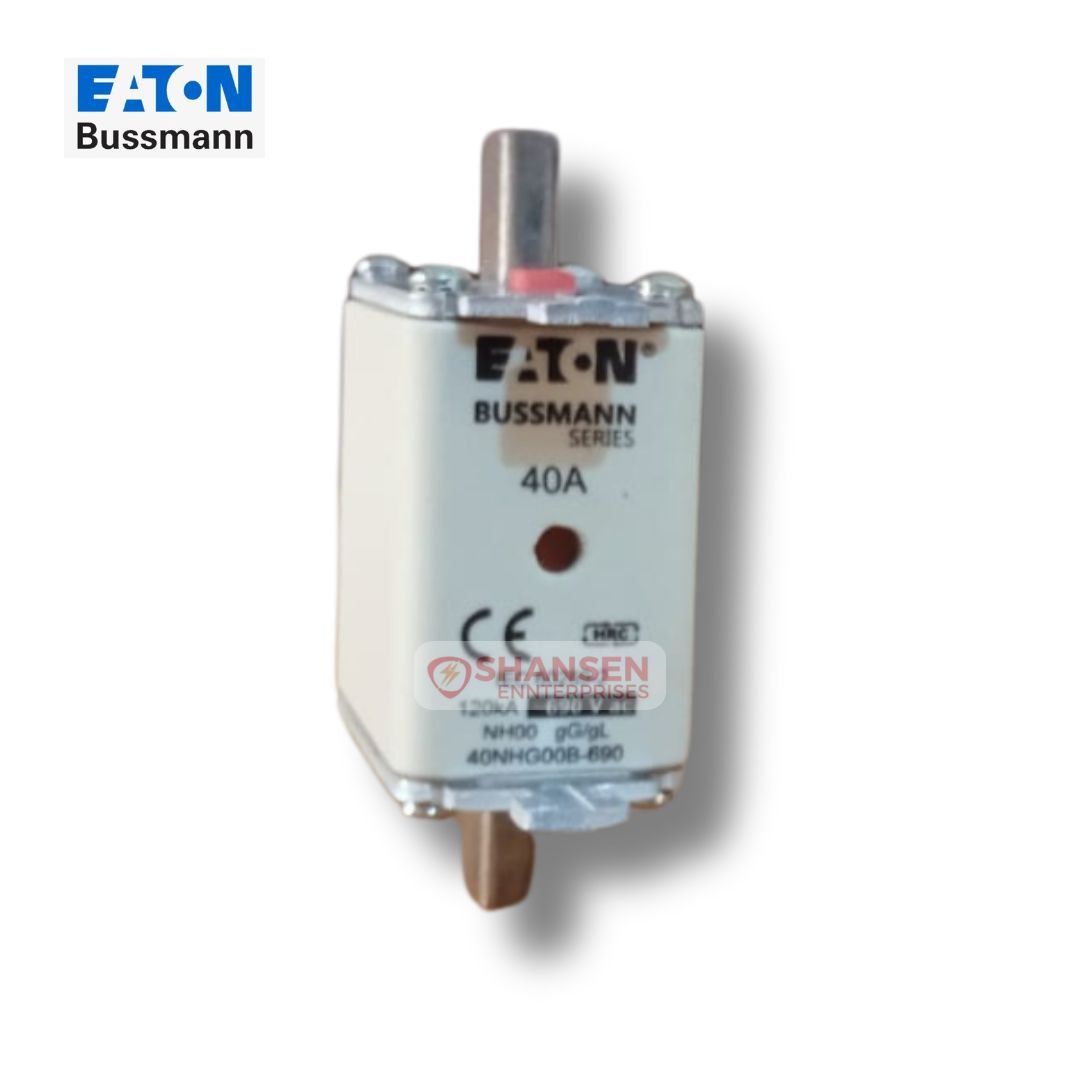

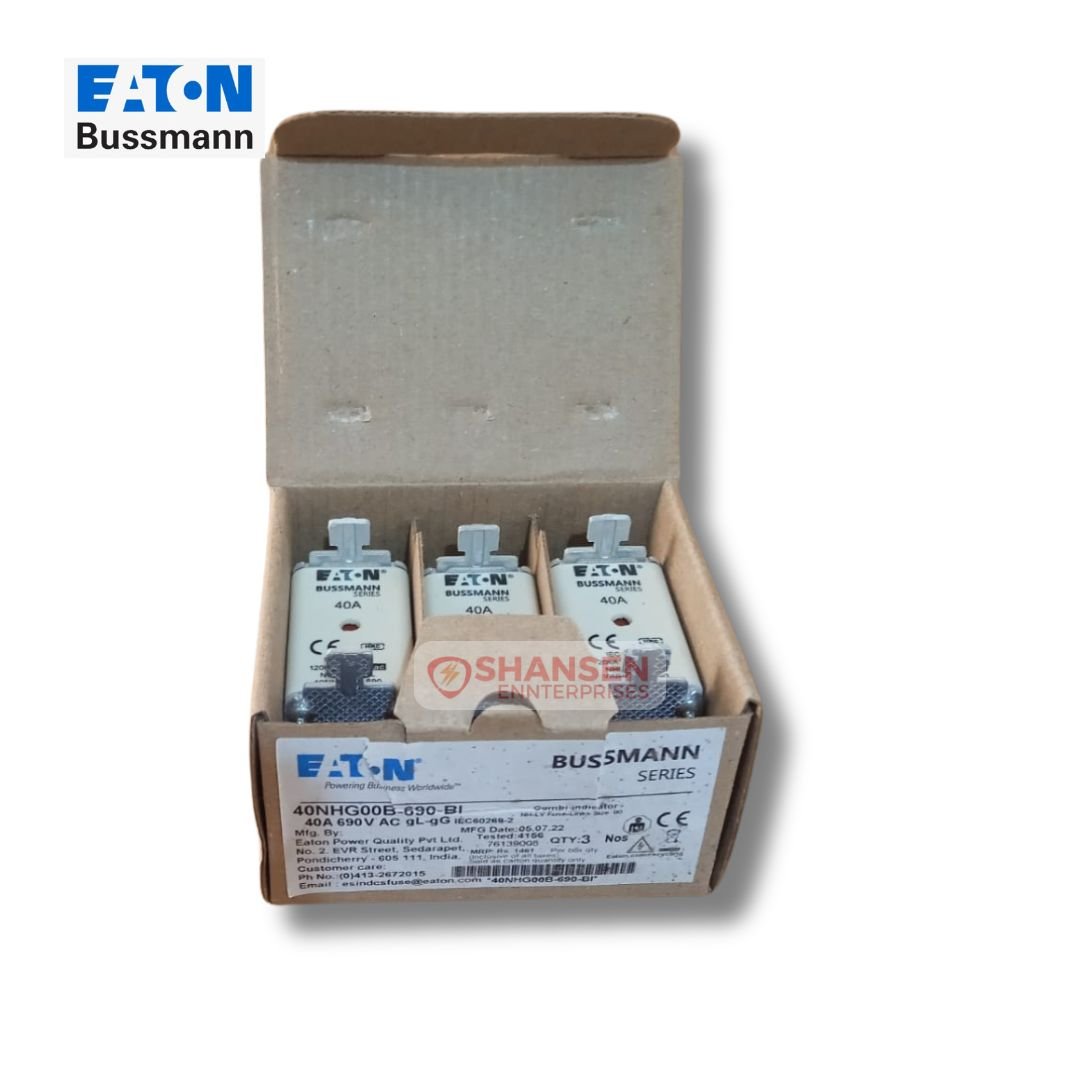

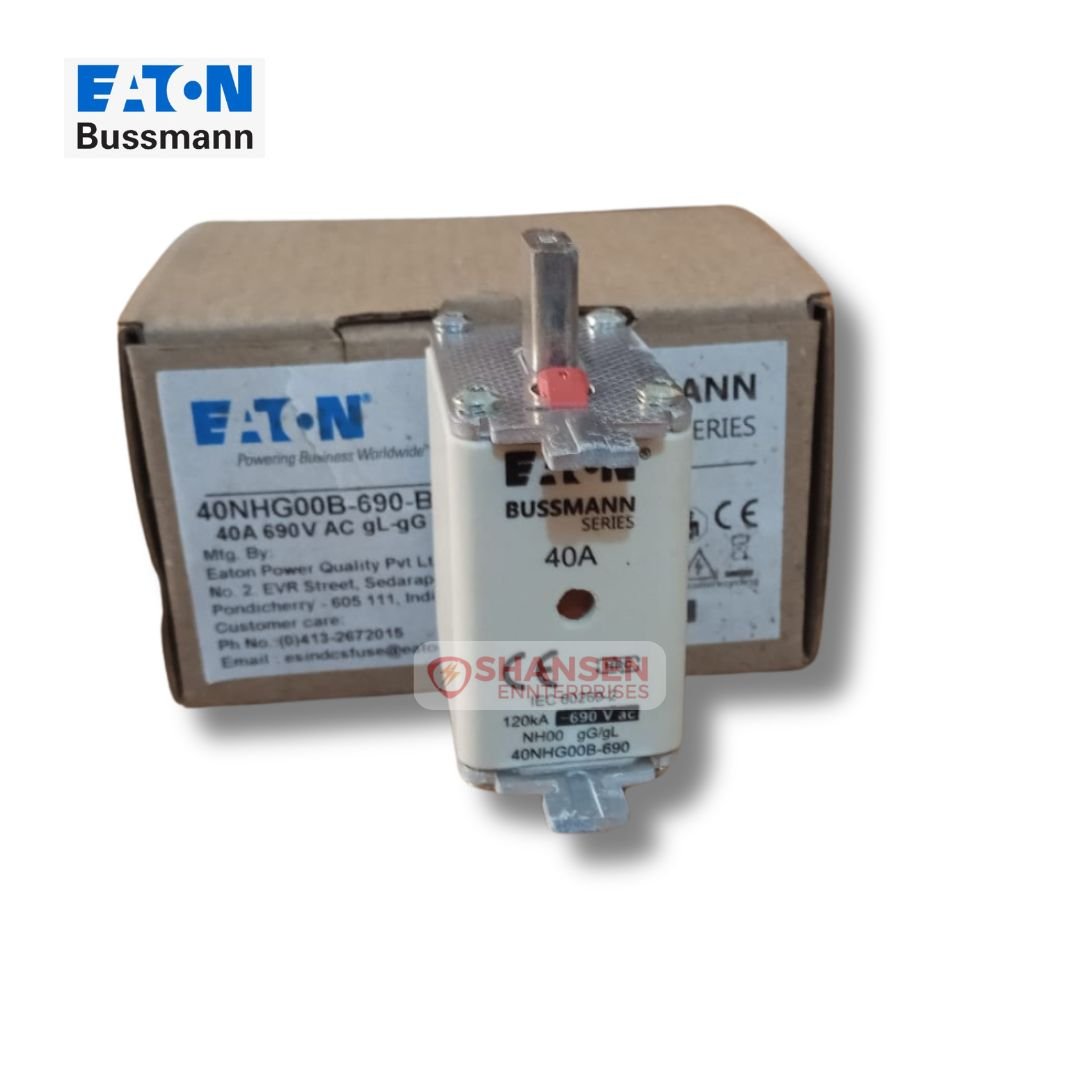

Product Name | Eaton Bussmann series low voltage NH Fuse |
Catalog Number | 40NHG000B-690 |
UPC | 051712193092 |
EAN | 5027590480277 |
Product Length/Depth | 79 mm |
Product Height | 51 mm |
Product Width | 21 mm |
Product Weight | 151.3333333 g |
Compliances | RoHS Compliant, CE Marked |
Certifications | IEC 60269-1, IEC 60269-2, DIN 43620 |
Electrical Data | |
Amperage Rating | 40 A |
Voltage Rating | 690 V |
Voltage Type | AC |
Breaking Capacity | 120 kA |
Class | Class gG/gL |
Frequency Rating – Min | 45 Hz |
Frequency Rating – Max | 62 Hz |
Product Specification | |
Fuse Size | NH000 |
Insulated Metal Gripping Lugs (IMGL) | No |
Accessories | |
Suitable For | Microswitch 170H0236, EBF Vertical Fuse Rail, EBV Vertical Fuse Switch-Disconnectors, EBH Size 000 Horizontal Fuse Switch-Disconnectors |
