Eaton Bussmann Series Photovoltaic Fuse PV-15A10F

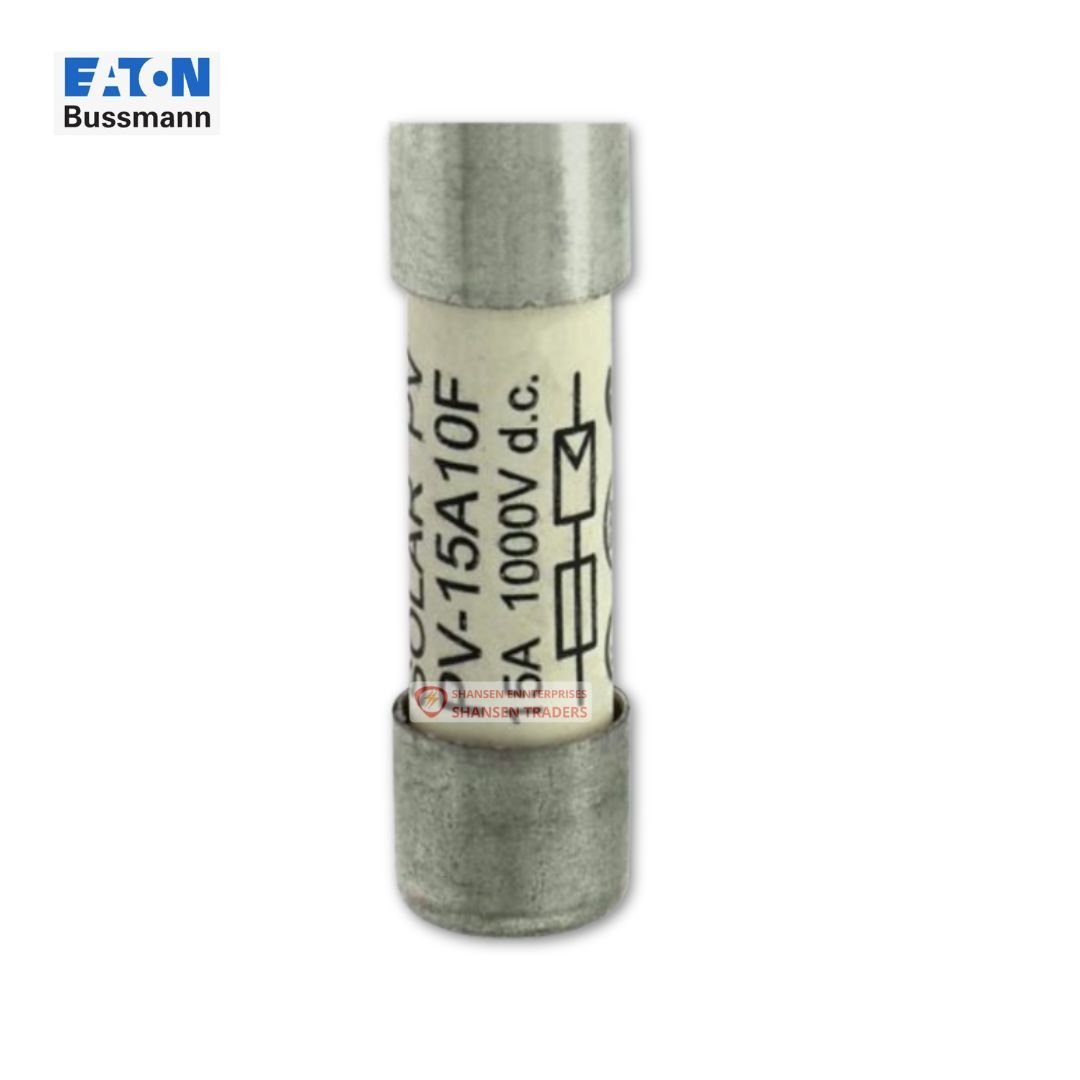

Eaton Bussmann Series PV-15A10F Photovoltaic Fuse – 15A, 1000V DC

The Eaton Bussmann Series PV-15A10F photovoltaic fuse is engineered for safe and reliable circuit protection in solar PV applications. Designed to IEC 60269-6 Type A standards, this 10x38 mm fuse provides a compact yet robust solution for safeguarding photovoltaic strings, combiner boxes, inverters, and wire harnesses. With a high interrupt rating of 50 kAIC at 1000 VDC and Class gPV performance, it ensures stable protection against overcurrent conditions in demanding solar environments. Its ferrule-to-ferrule design and compatibility with Eaton’s CHPV modular fuse holders and HPV-DV inline holders make installation easy and secure. Lightweight, RoHS compliant, and certified to IEC, CSA, UL, and CCC standards, this fuse guarantees dependable operation in renewable energy systems.

Key Features at a Glance

• Brand: Eaton Bussmann Series

• Model: PV-15A10F

• Current Rating: 15 A

• Voltage Rating: 1000 VDC

• Interrupt Rating: 50 kAIC

• Fuse Class: gPV (Photovoltaic protection)

• Fuse Size: 10 x 38 mm

• Non-indicating fuse, ferrule end x ferrule end

• Pre-arc I²t: 22 | Watt losses: 1.7 W

• Compliances: RoHS, CE Marked

• Certifications: IEC Rated, CSA Certified, UL Listed (2579, 61010-1 File E185559), CCC Marked

• Dimensions: L 38 mm x H 10 mm x W 10 mm | Weight: 10 g

• Compatible Holders: CHPV Modular fuse holder, HPV-DV Inline holder

Why Choose This Product

The Eaton Bussmann PV-15A10F offers trusted reliability for protecting solar PV circuits, ensuring uninterrupted performance and safety in photovoltaic systems. Its robust construction, high breaking capacity, and compliance with multiple global standards make it a preferred choice for solar EPCs, installers, and maintenance professionals. Backed by Eaton’s global reputation and Shansen Enterprises, an authorized channel partner, this fuse delivers long-term peace of mind for solar power generation.

Ideal For

• Solar combiner boxes

• Inverters in PV installations

• PV wire harnesses

• Photovoltaic string protection

• Renewable energy projects requiring IEC & UL certified fuses

WhatsApp Quote

We are proud Channel Partners of ABB, Eaton Bussmann, and SECURE Meters, delivering 100% customer satisfaction and reliable after-sales support. Get fast delivery all over India and competitive quotes directly via WhatsApp.

FAQs

Q1: What applications are best suited for the Eaton PV-15A10F fuse?
A1: It is ideal for photovoltaic strings, combiner boxes, inverters, and PV wire harnesses.

Q2: Which fuse holders are compatible with this fuse?
A2: It fits Eaton’s CHPV Modular fuse holder and HPV-DV Inline holder.

Q3: Is this fuse certified for use in India?
A3: Yes, it carries multiple international certifications (IEC, UL, CSA, CCC) and is RoHS/CE compliant, making it fully suitable for Indian installations.
