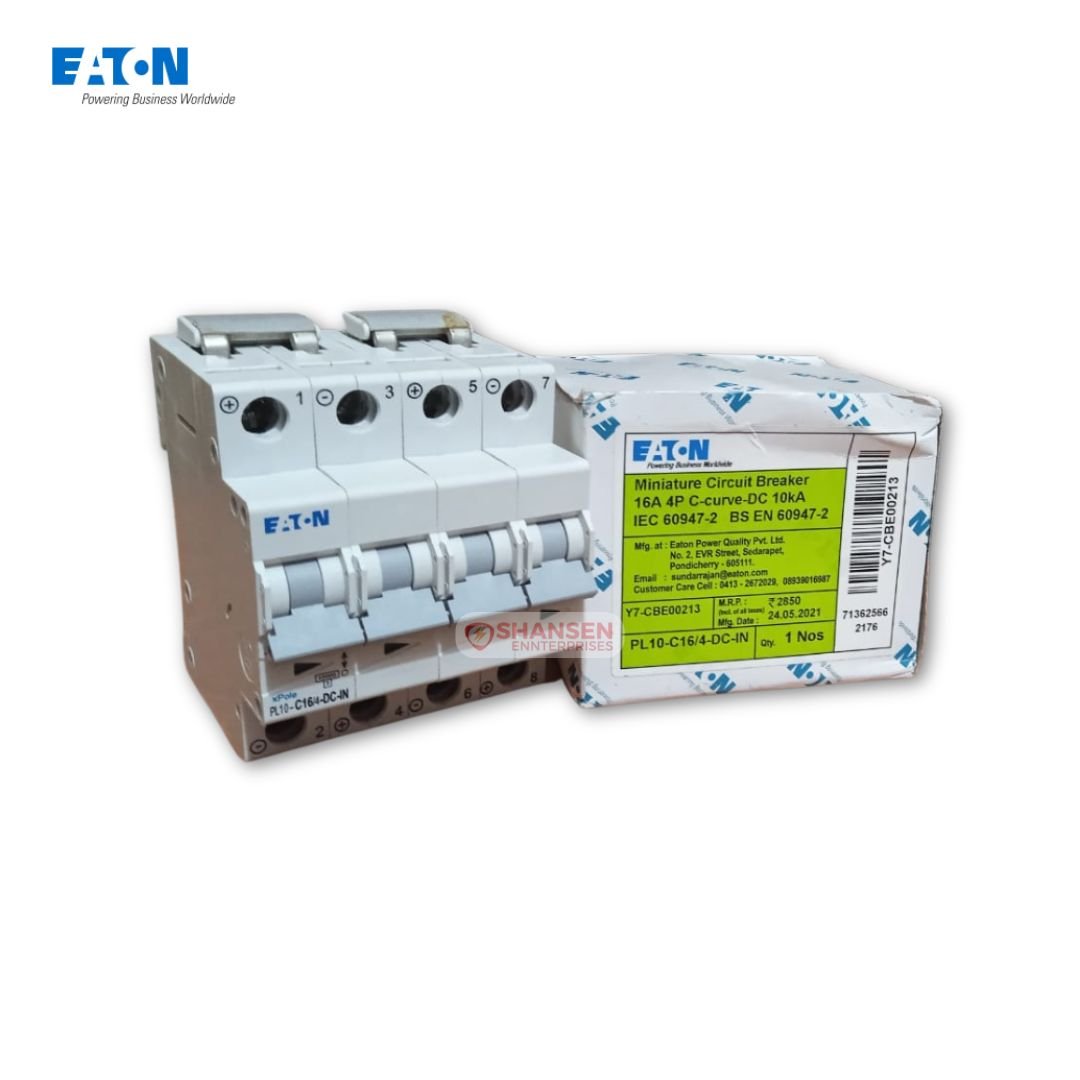

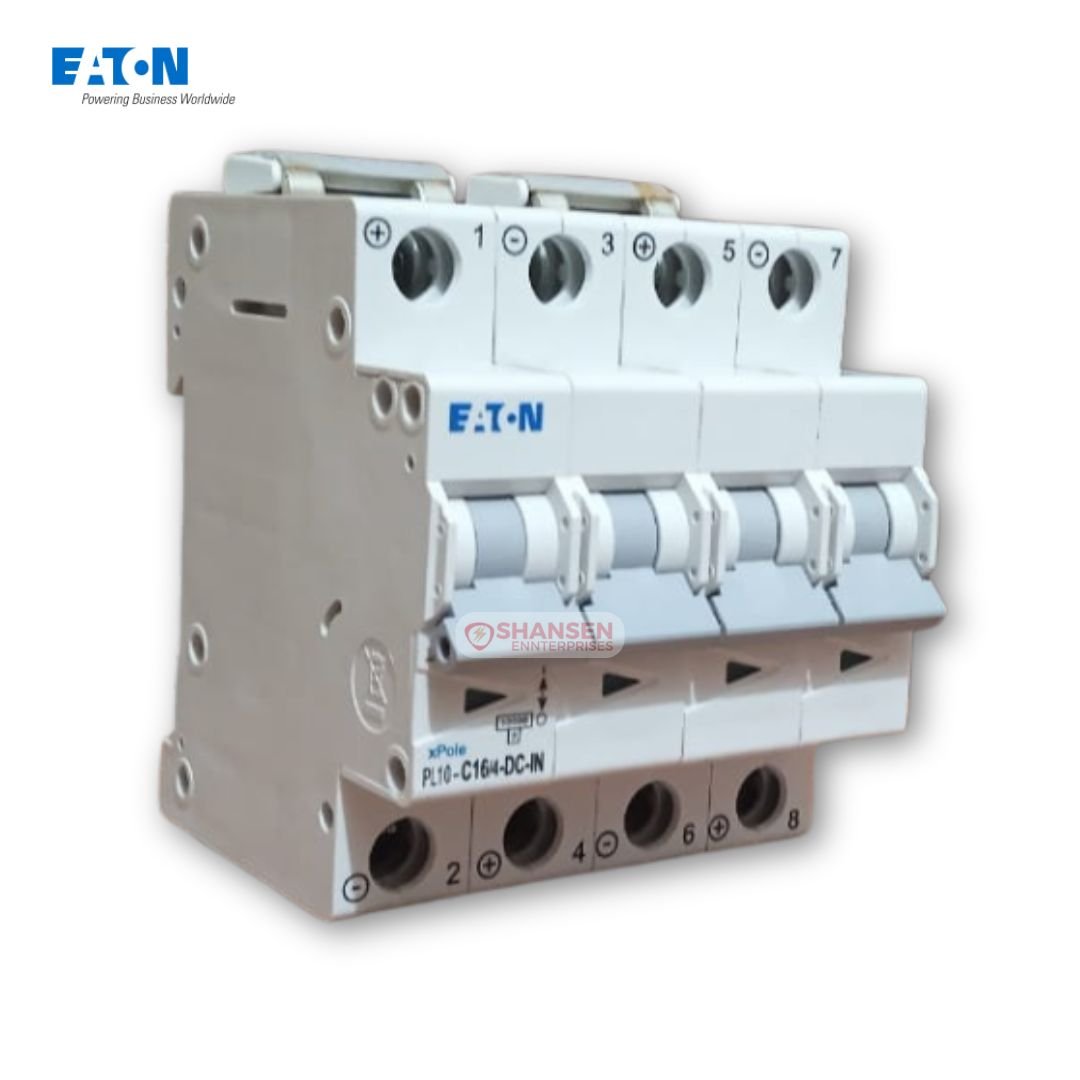

Eaton Miniature Circuit Breaker PL10-DC-IN

High-Performance Eaton PL10-DC-IN MCB for Reliable DC Protection

The Eaton PL10-DC-IN Miniature Circuit Breaker is engineered for high-efficiency DC protection in demanding applications. With a robust breaking capacity of 10 kA and rated for up to 1000 V DC, this compact MCB offers superior safety and flexibility. The clear red-green contact indicator and 3-position DIN rail clip simplify installation and maintenance, making it an ideal choice for modern electrical systems.

Key Features at a Glance

• DC-specific MCB with high-performance tripping

• Contact position indicator (red - green)

• Secure terminal connection guide

• 3-position DIN rail clip for easy installation/removal

• Wide current range: 16A, 25A, 32A, 40A, 50A

• Tripping characteristic: C curve

• Rated voltage: up to 1000 V DC

• Breaking capacity: 10 kA (IEC/EN 60947-2 compliant)

• Modular design with retrofit accessories available

Ideal For

• Solar Power Installations

• Industrial DC Systems

• Battery Energy Storage Solutions

• EV Charging Infrastructure

• Control Panels and Switchboards

FAQs

1. Is the Eaton PL10-DC-IN suitable for solar applications?
   Yes, it supports up to 1000 V DC, ideal for solar and renewable systems.

2. Can I retrofit accessories later?
   Absolutely, it supports a wide range of installable accessories.

3. What tripping characteristic does it follow?
   It has a Type C tripping curve suitable for general DC protection.
