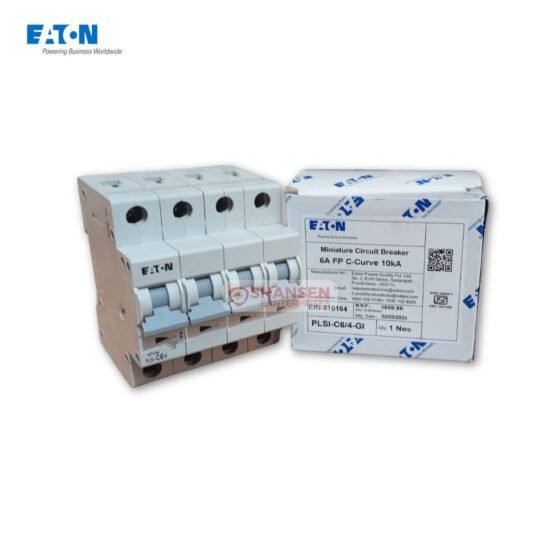

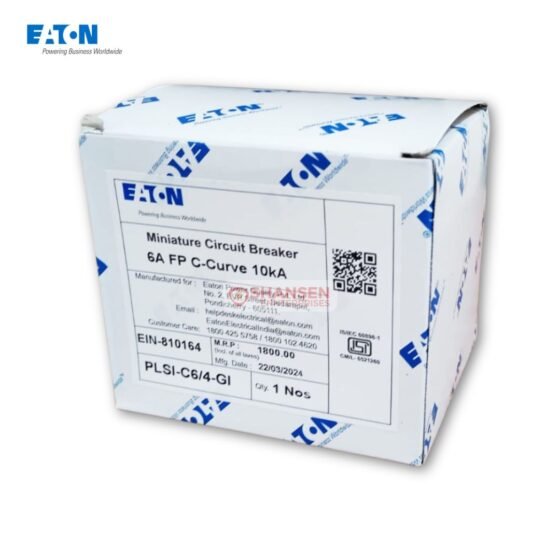

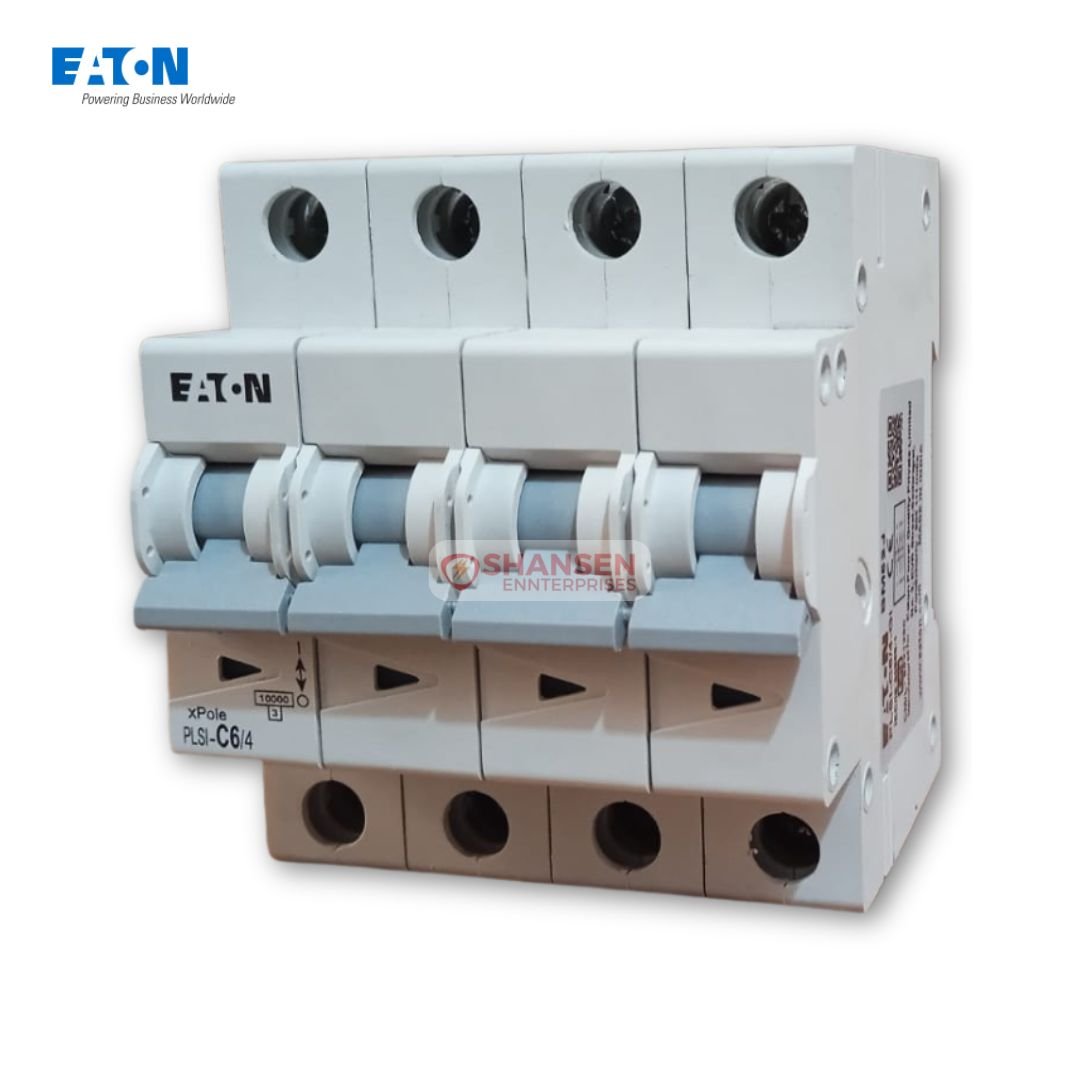

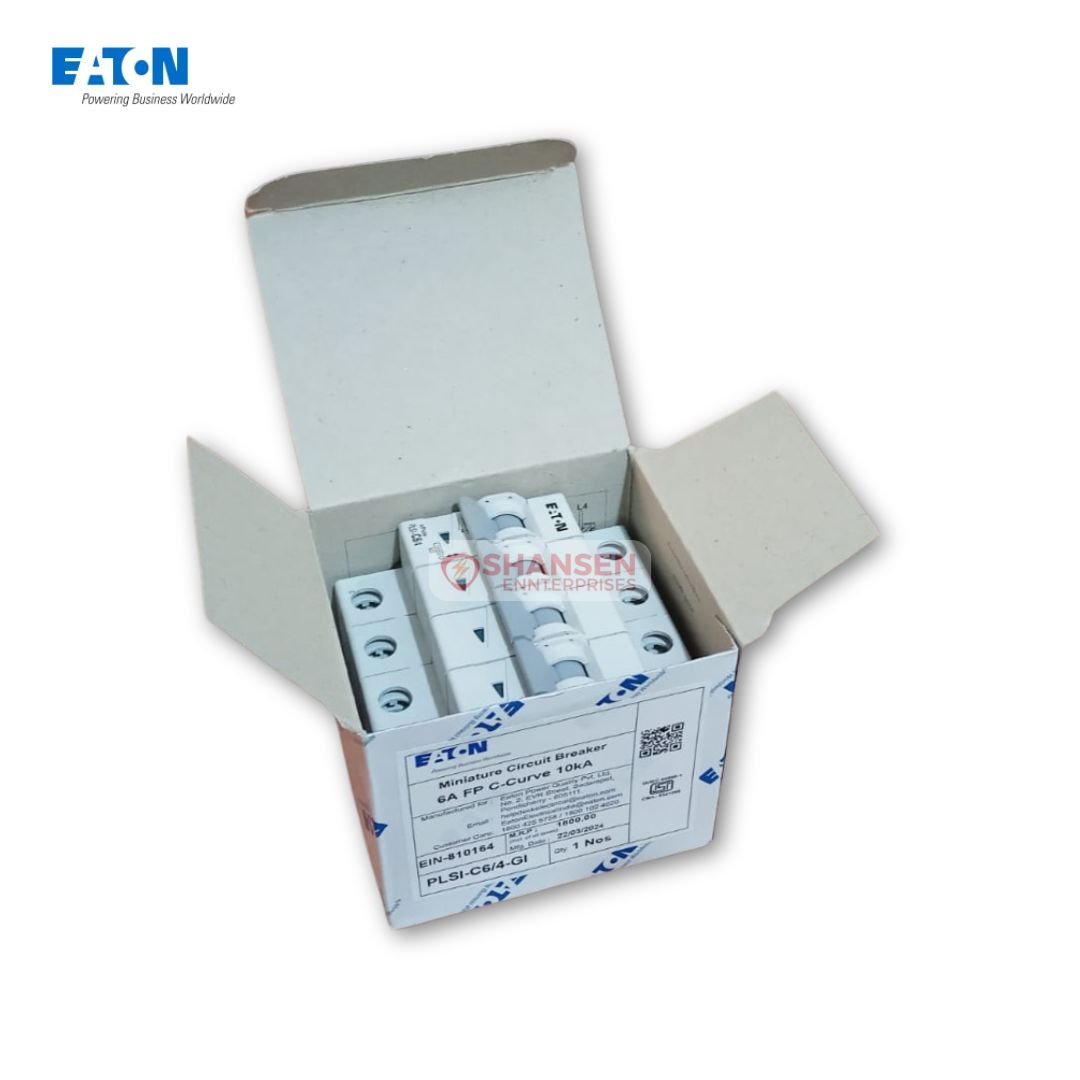

Eaton PLSI‑C6/4‑GI 4-Pole, 6A, 10kA MCB (C-Curve)

Key Features at a Glance

• Rated Current: 6 A

• Trip Curve: C-Curve (trips at 5–10× In)

• Poles: 4-Pole (FP)

• Breaking Capacity: 10 kA at 240/415 V AC

• Certifications: ISI & CE marked

• Energy Limiting: Class 3

• Quick Break Mechanism: Fast fault clearing

• True Contact Position Indicator: Red = ON, Green = OFF

• Trip-Free Mechanism: Can’t override when tripped

• Material: Fire-retardant engineering plastics

• Arc Protection: Silver alloy contacts + 13 de-ion plate arc-chutes

• Installation: DIN-rail clamp, bi-connect terminals, screw M5 (2 N·m torque)

Why Choose This Product

The Eaton PLSI‑C6/4‑GI stands out with its combination of precision engineering and installer-friendly design. Built with India’s demanding power conditions in mind, it ensures dependable safety from overloads and short circuits while keeping panel installation straightforward. The true contact indicator, high-grade internal components, and compact form factor make it a practical and reliable addition to any setup.

Ideal For

• Residential Main Switchboards

• Light Commercial Panels (shops, offices, kitchens)

• Motor & Inverter Circuits

• Electrical System Upgrades & Renovations
