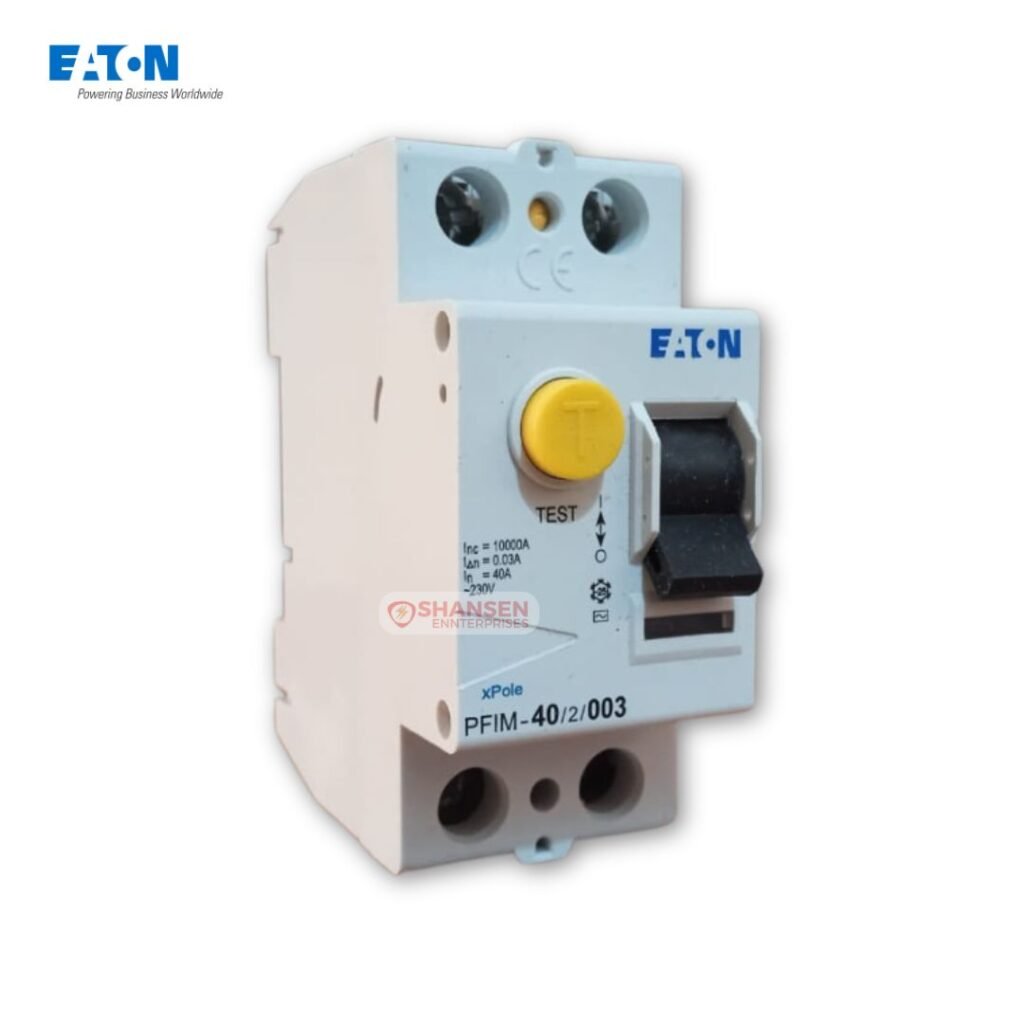

Eaton PFIM-40/2/003 Residual Current Circuit Breaker

Eaton PFIM-40/2/003 RCCB – Reliable Residual Current Protection | Model 235394

Protect your electrical systems with the Eaton Moeller xPole PFIM-40/2/003 RCCB, designed for high-reliability residual current protection. This 2-pole RCCB offers 40A current rating and 30mA sensitivity, making it ideal for a variety of residential, commercial, and industrial safety applications. Built with a compact form factor and compliant with IEC/EN 61008 standards, this device is part of the trusted xPole – PFIM series, ensuring consistent performance and long service life.

Key Features at a Glance:

• Brand: Eaton (Moeller xPole Series – PFIM)

• Model: PFIM-40/2/003 (Cat No. 235394)

• Rated Current: 40 A

• Poles: 2-Pole

• Residual Current Sensitivity: 30 mA

• Voltage Rating: 230V AC

• Compliances: RoHS conform

• Standards: IEC/EN 61008

• Type AC RCCB: Detects sinusoidal AC residual currents

• Compact Dimensions: 76 mm (L) x 35 mm (W) x 80 mm (H)

• Weight: 0.19 kg

• Mounting: DIN rail compatible

Why Choose This Product:

The Eaton PFIM-40/2/003 RCCB offers exceptional protection against electric shock and fire hazards by quickly disconnecting power during fault conditions. Engineered with precision and backed by the trusted Eaton Moeller quality, this RCCB ensures peace of mind in any electrical installation. With robust compliance standards, it’s a go-to solution for both retrofit and new projects requiring type AC protection.

Ideal For:

• Residential Electrical Panels

• Commercial Buildings

• Industrial Control Cabinets

• Data Centers

• Hospitals & Laboratories

• Renewable Energy Installations

Get a Quote on WhatsApp

As an Authorized Channel Partner of ABB and Eaton products, Shansen Enterprises guarantees 100% original products and a track record of customer satisfaction.

FAQs:

Q1: What is the difference between Type AC and Type A RCCBs?
A: Type AC detects only sinusoidal AC currents, while Type A detects both AC and pulsating DC residual currents.

Q2: Can this RCCB be used for residential applications?
A: Yes, it’s ideal for homes, ensuring safety from electric shocks and faults.

Q3: Is the product compliant with international standards?
A: Yes, it complies with IEC/EN 61008 and is RoHS conformant.
