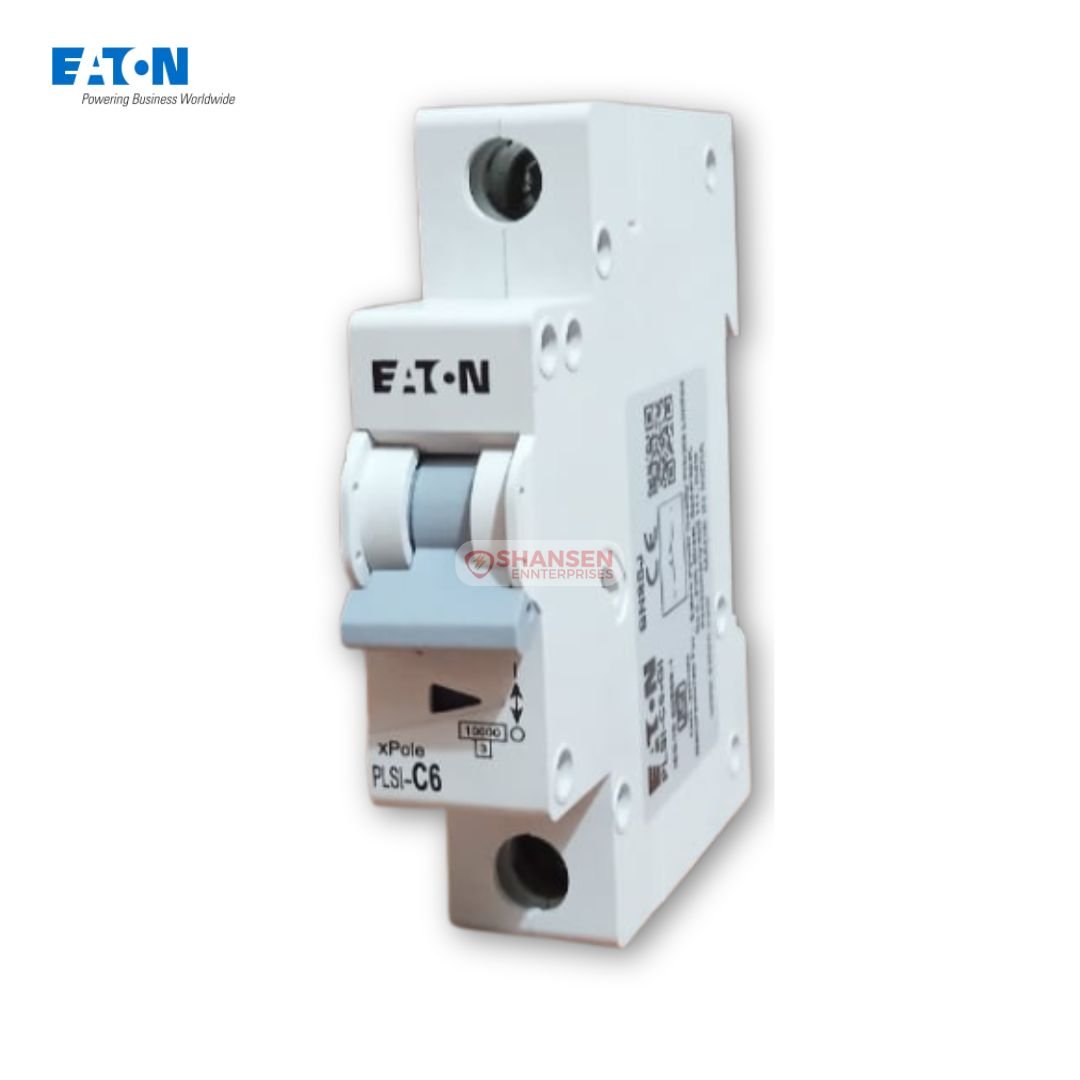

Eaton PLSI-C6-GI 6A C-Curve Miniature Circuit Breaker

Key Features at a Glance

• Current Rating: 6 Amps

• Trip Curve: C-Curve (5–10× In magnetic trip)

• Breaking Capacity: 10kA (Icn), 7.5kA (Ics)

• Voltage Rating: 240/415V AC

• Mounting: Standard 35 mm DIN-rail

• Terminal Capacity: 16 mm² (flex), 25 mm² (rigid)

• Endurance: 10,000 mechanical / 4,000 electrical cycles

• Protection: IP20 enclosure, Trip-free design

• Compliance: IS/IEC 60898‑1 & EN/IEC 60898‑1

• Operating Temp: –5 °C to +40 °C

Why Choose This Product

The Eaton PLSI‑C6‑GI combines compact design with high performance. It delivers swift and accurate protection for household and commercial circuits, ensuring minimal downtime and reduced risk of electrical fires. Built to meet both Indian and international safety standards, it also features a visible contact position indicator and a robust, finger-safe housing for added peace of mind.

Ideal For

• Residential buildings

• Office spaces

• Retail outlets

• Light industrial setups

• Panel builders & electrical contractors
