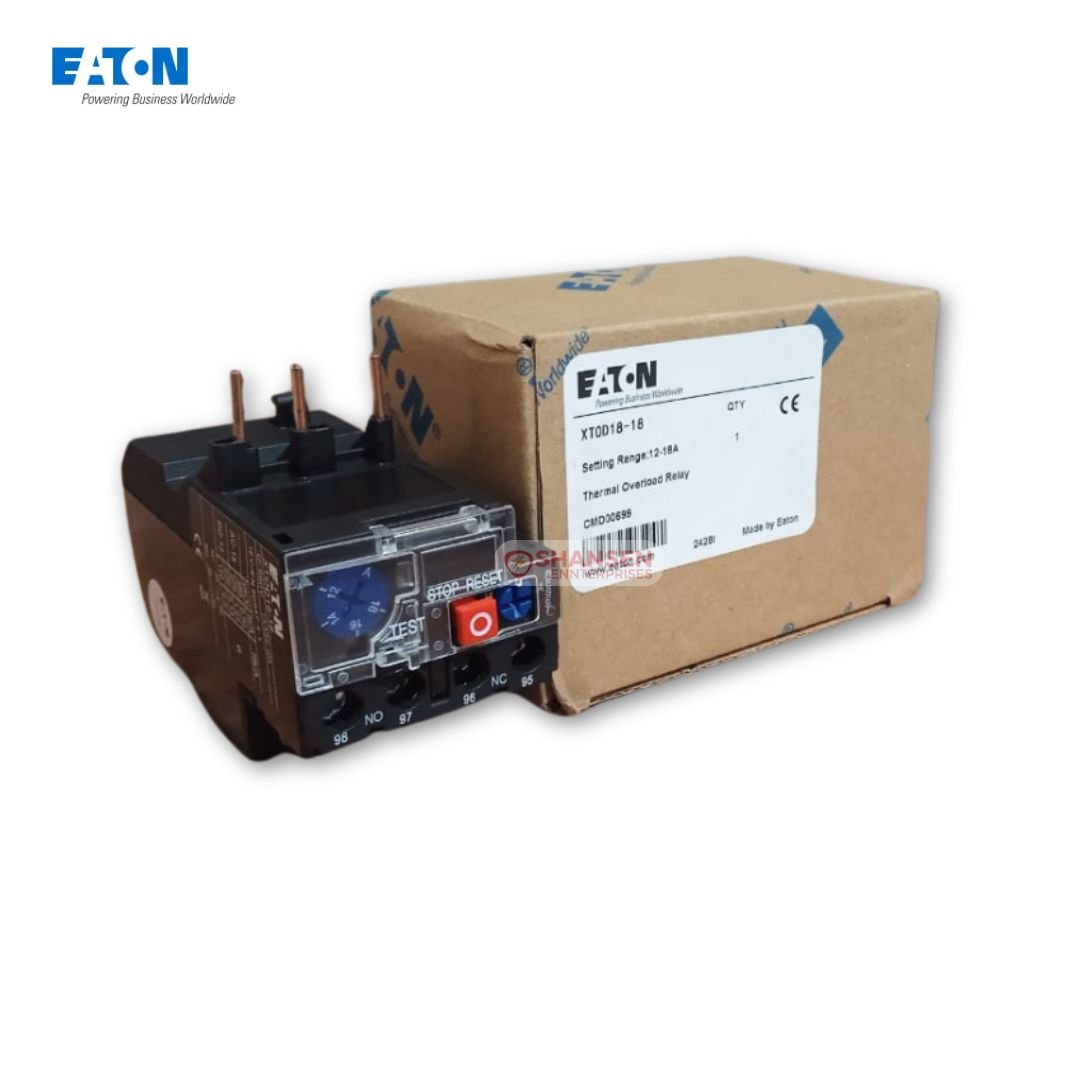

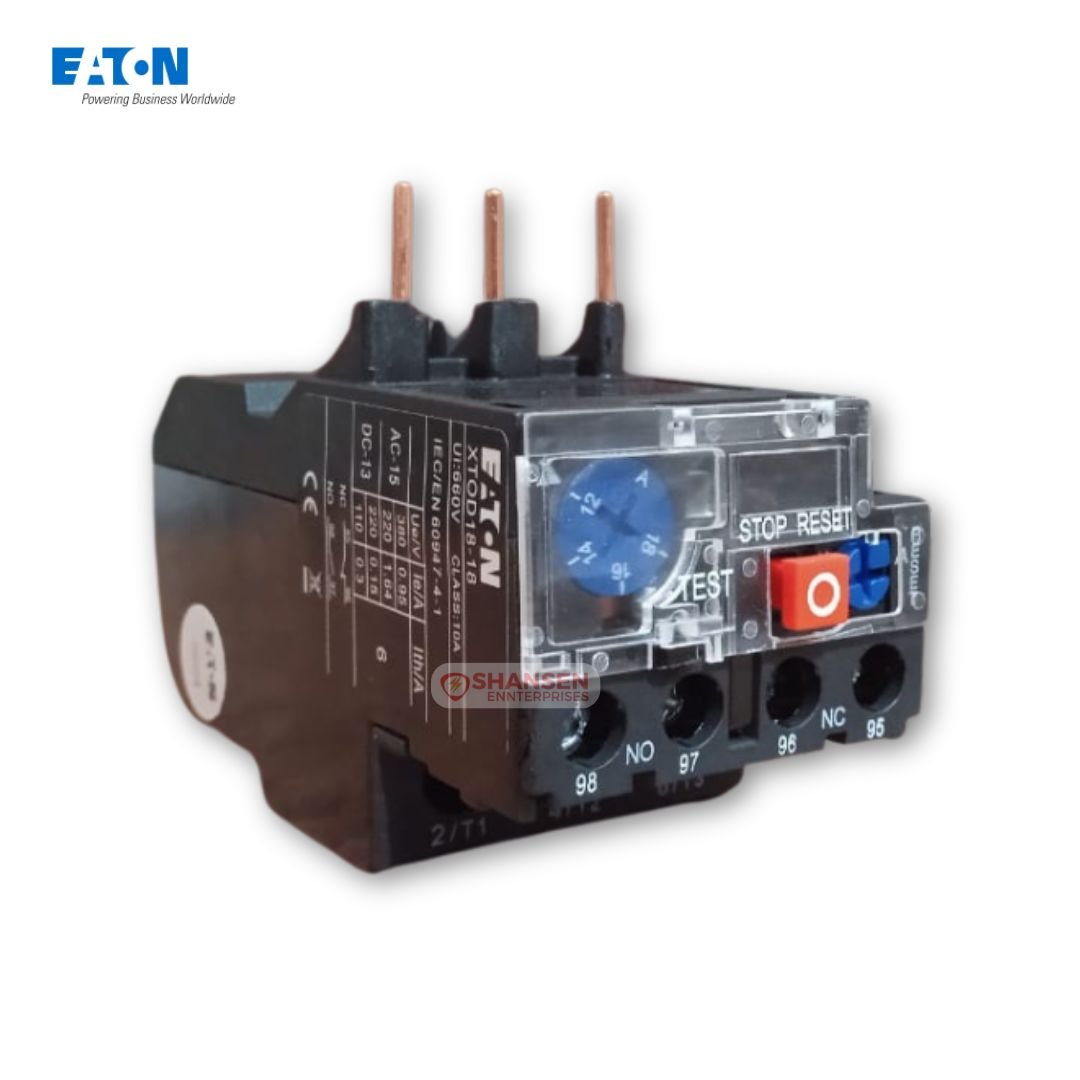

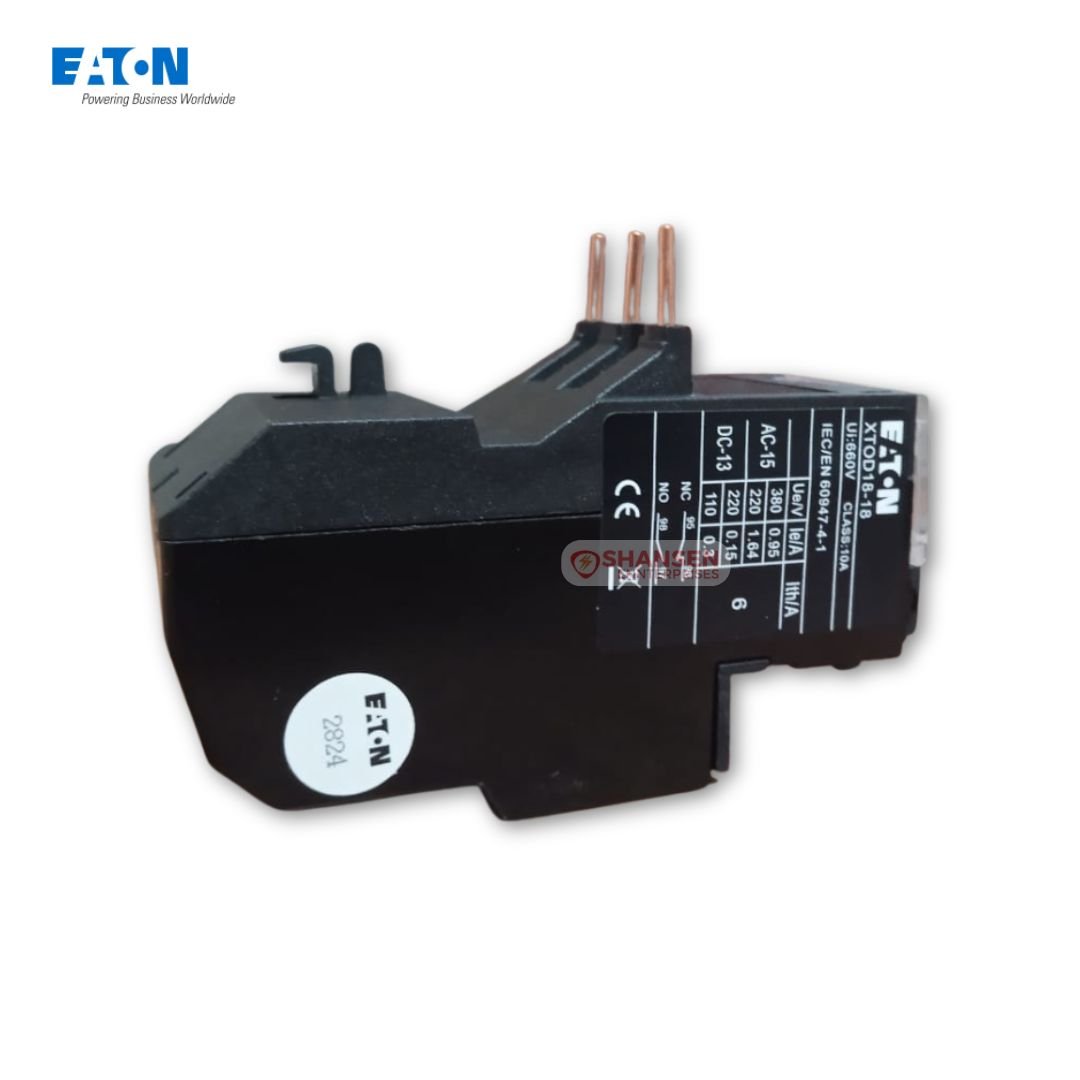

Eaton XTOD18-18 Thermal Overload Relay

Eaton XTOD18-18 Thermal Overload Relay – Reliable Motor Protection for Your Industrial Needs

Looking for a compact, efficient, and standards-compliant thermal overload relay? The Eaton XTOD18-18 is a bimetal thermal relay designed to protect your motors against overloads and phase failures. It seamlessly mounts onto Eaton XTCD contactors, ensuring a secure and easy setup. With an adjustable current range of 12–18 A, this unit is ideal for a variety of light to medium-duty industrial applications.

Key Features at a Glance

• Adjustable current range: 12–18 A

• Built-in phase-failure sensitivity

• Manual/auto reset and test/trip pushbutton

• Contact configuration: 1 NO + 1 NC

• Direct mounting on XTCD6–38 contactors

• Standards: IEC/EN 60947‑4‑1, CE, GB/T 14048.4, CCC

• Voltage Ratings: 660 VAC (Ui & Ue), 8 kV Uimp

• Operating temp: –25 °C to +60 °C

• Compact and lightweight: 0.15 kg

Why Choose This Product
The Eaton XTOD18-18 Thermal Overload Relay offers precise motor protection with adjustable current settings and robust fault handling capabilities. It’s built to meet international standards and is perfectly compatible with Eaton’s XTCD contactor series. Whether you’re upgrading existing setups or deploying new motor starters, this relay ensures dependable protection and longevity for your equipment.

Ideal For

• HVAC systems

• Packaging machinery

• Conveyors and belt systems

• Pumps and compressors

• General manufacturing and automation panels

Request a Quote on WhatsApp!
As an Authorized Channel Partner of Eaton, Shansen Enterprises ensures 100% authentic products, top-tier service, and customer satisfaction. Reach out now via WhatsApp to get a quote and expert guidance tailored to your project.

FAQs

1. Can this relay be mounted directly onto XTCD25-11?
   Yes, the XTOD18-18 is designed for direct mounting on XTCD6–38 series, including XTCD25-11.

2. Does it support automatic reset?
   Yes, it includes both manual and auto reset features.

3. What type of motors is this relay best for?
   It’s ideal for three-phase motors in light to medium industrial environments.
