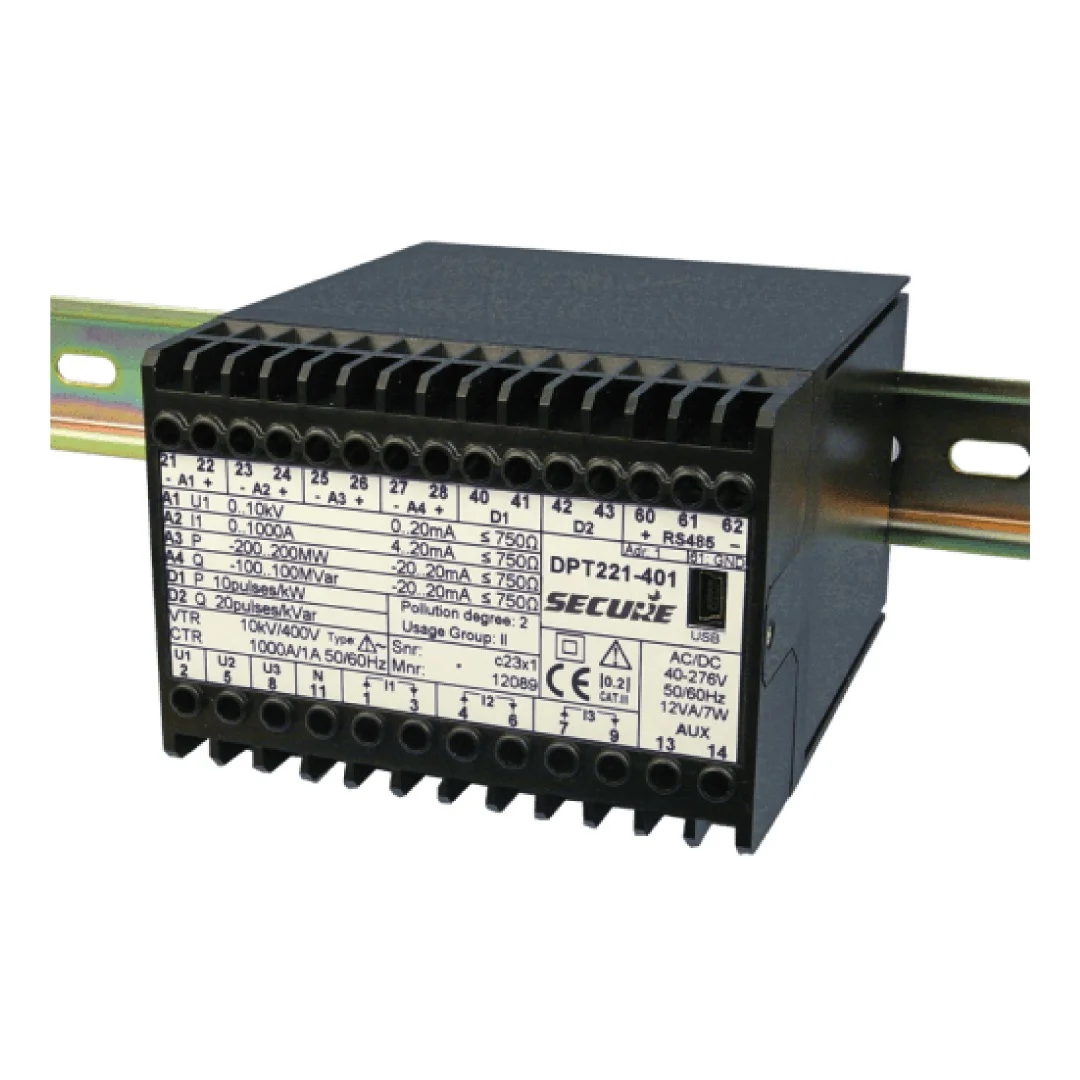

SECURE Brand DPT Digital Programmable Transducer


The SECURE Brand DPT Digital Programmable Transducer represents the cutting edge of precision in measuring electrical parameters. Designed for versatility and accuracy, this device is essential for anyone seeking reliable data for their instrumentation and control systems. Whether you are managing a complex SCADA system or setting up a transmission panel, the DPT offers seamless integration and superior performance.

Key Features

  • Fully Programmable Inputs & Outputs: Tailor the DPT to your specific needs with configurable inputs and outputs, providing flexibility for various applications.
  • High Accuracy: Choose between accuracy classes 0.5 and 0.2, ensuring precise measurements and dependable data.
  • True RMS Measurement: Delivers accurate readings even for complex waveforms, making it ideal for environments with varying loads.
  • Multiple Outputs: Up to four analogue outputs and two digital outputs allow for diverse interfacing options with control systems.
  • Modbus Communication: Utilize the optional Modbus functionality via RS-485 port for seamless data integration and remote monitoring.
  • DIN-Rail Mounting: Designed for easy installation with DIN-rail mounting, making it a perfect fit for control panels.
  • USB Mini Port for Local Programming: Simplifies local programming and configuration using the USB Mini port.
  • Security Features: Includes open detection for meter cover and terminal cover, enhancing security and reliability.


  • Instrumentation Panels: Ideal for providing accurate measurements and data for instrumentation panels in various industrial settings.
  • Control Systems: Enhances the efficiency and reliability of control systems with precise data outputs.
  • Electrical Distribution Panels: Ensures accurate monitoring and control of electrical distribution systems.
  • Transmission Systems and Generators: Suitable for integrating into transmission systems and generators, offering robust data for system management.
  • SCADA Systems: Perfect for SCADA systems, providing reliable data transmission and integration capabilities.


  • Versatility: Covers a wide range of common electrical parameters, making it a one-stop solution for various measurement needs.
  • User-Friendly Configuration: The ConfigView software allows for easy setup and configuration, enabling quick adjustments and parameter assignments.
  • Rapid Response Time: Provides fast and accurate data, improving the responsiveness of your control systems.
  • THD Measurement: Capable of measuring Total Harmonic Distortion, adding an extra layer of data analysis for your systems.
  • Convenience for Distributors/OEMs: Suitable for stocking at Distributor/OEMs end, ensuring availability and support.
  • Guidance and Support: Available through Authorized Channel Partner – Shansen Enterprises, Coimbatore, with expert guidance for optimal use.

Compliance and Standards

  • IEC 60688: Meets international standards for measuring electrical parameters, ensuring reliability and safety.
  • Voltage, Current, and Auxiliary Supply Support: Compatible with a wide range of voltage, current, and auxiliary supplies, adding to its adaptability in various settings.

Download Brochure




General measurement
Accuracy Class 0.2, Class 0.5 (Frequency ± 0.01 Hz, Power Factor ± 0.1°)
Mains frequency 50 or 60 Hz (45-65 Hz)
Measurement True root-mean squared (RMS)
Voltage Circuit
Nominal measuring voltage (UN) 3 x 100-693 V (three-wire system)
3 x 57.7/100 V to 3 x 400/693 V (four-wire system)
Measuring range 0% – 120% UN
Burden ≤V/400k
Maximum overload voltage 1.2 x UN continuously
1.5 x UN for 10 s with up to 10 repetitions at 10 s intervals
2 x UN for 1 s with to 10 repetitions at 10 s intervals
Starting voltage 0.25 V
Current Circuit
Nominal measuring voltage (IN) 1-5 A
Measuring range 0% – 200% IN
Burden ≤Ix0.01
Maximum overload current 2 x IN continuously
20 x IN for 1 s with up to 10 repetitions at 100 s intervals
40 x IN for 1 s with to 5 repetitions at 300 s intervals/td>
Starting current 4 mA
Auxiliary Supply
Voltage range e 40-276 V AC or DC (AC frequency 45-65 Hz
Maximum burde n < 12 VA / 7
