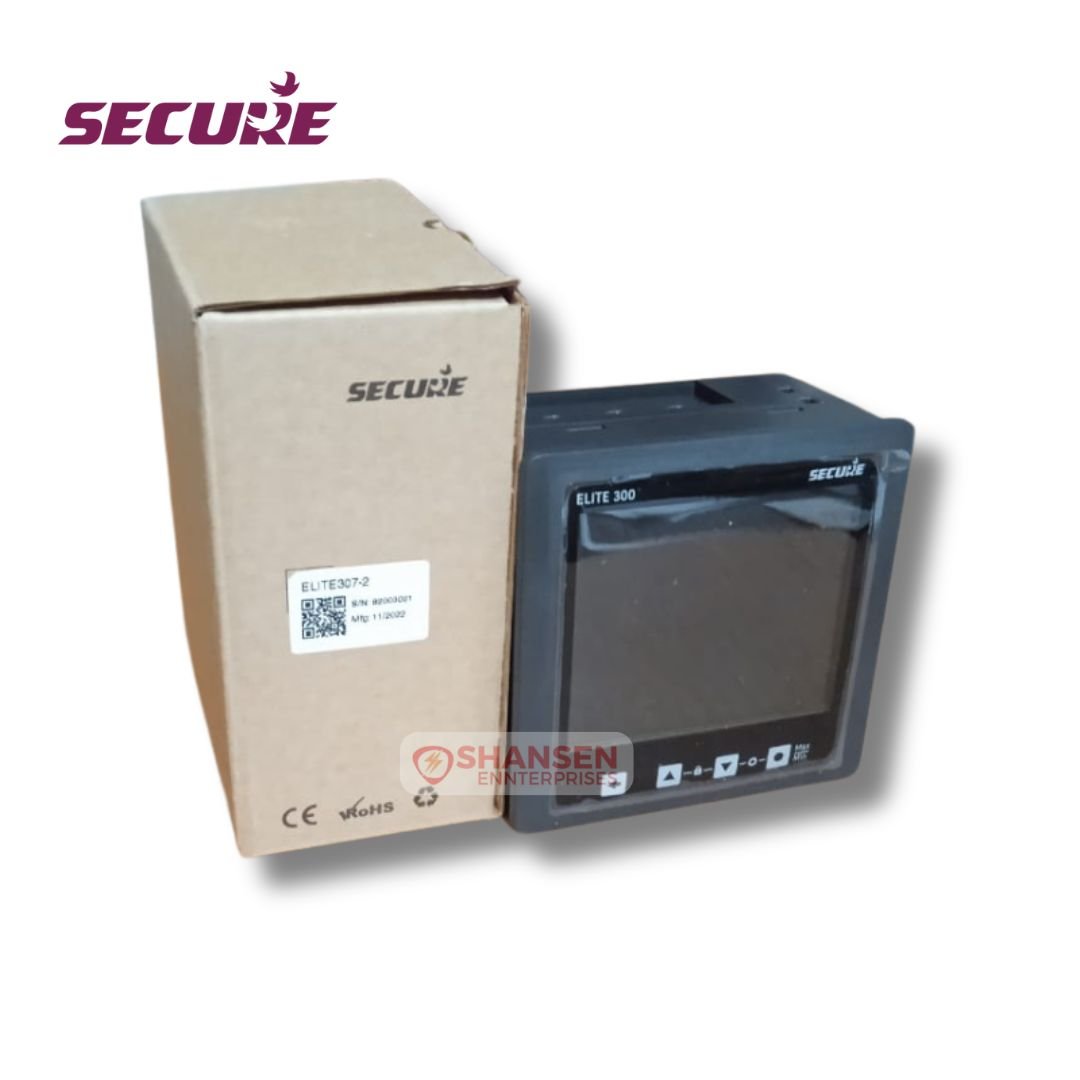

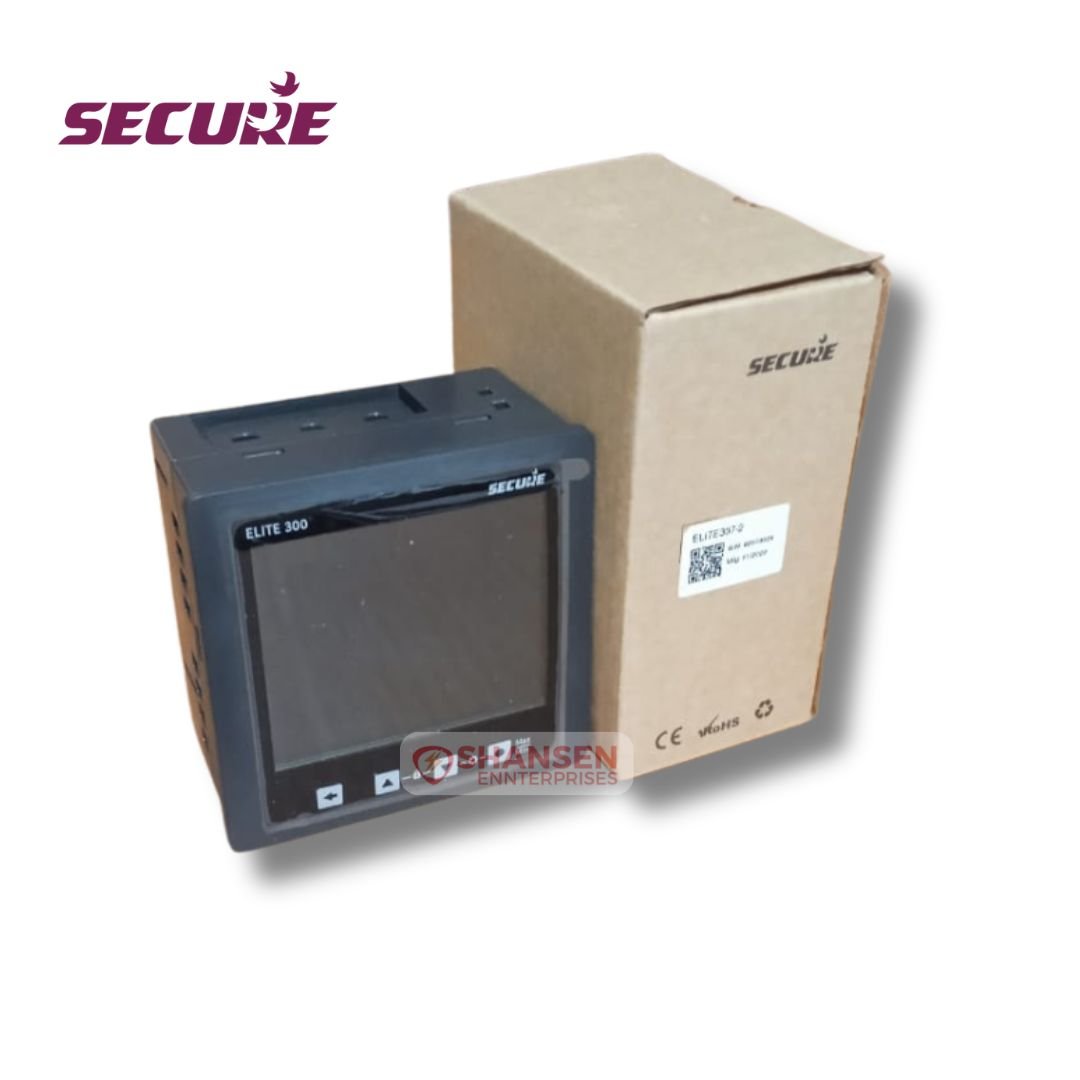

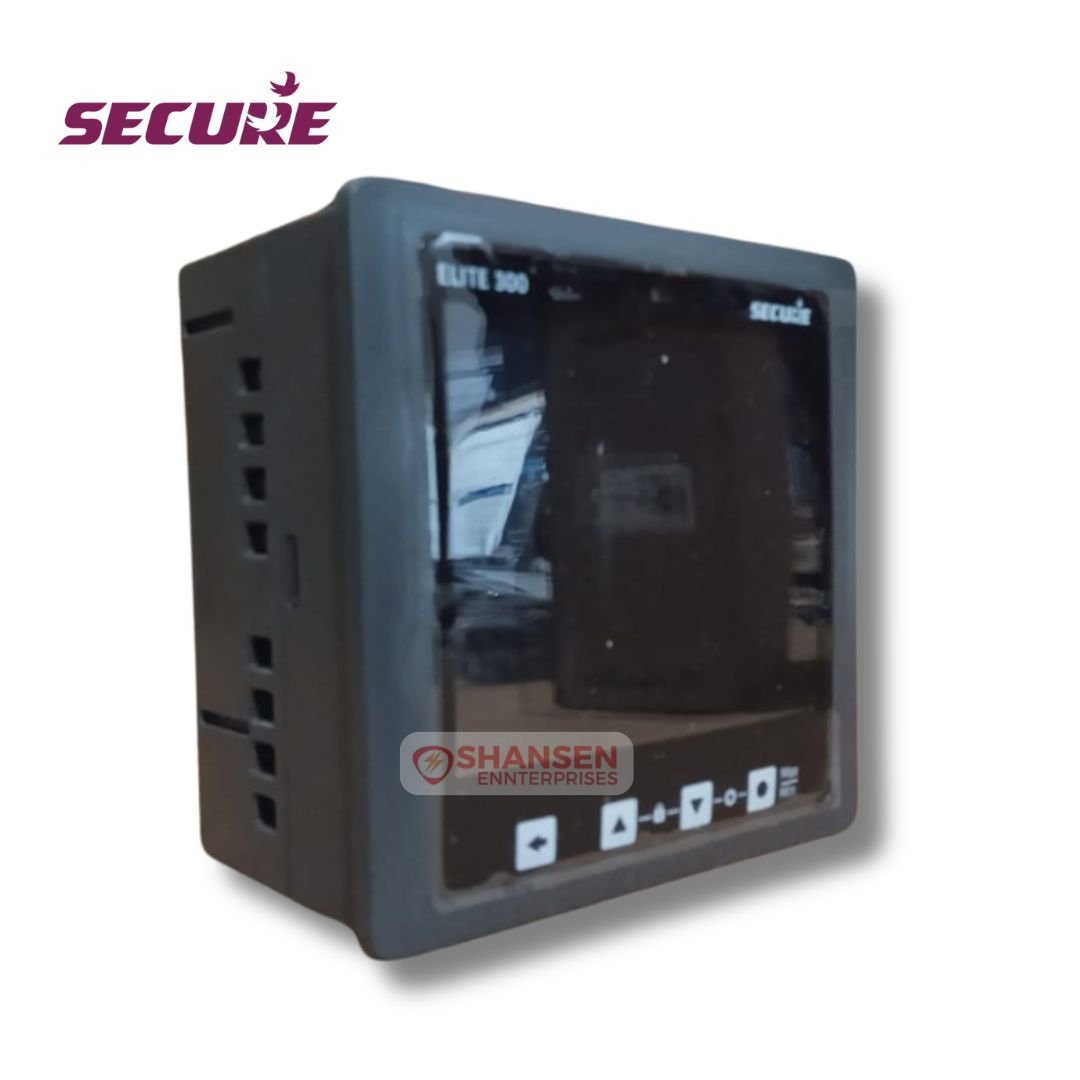

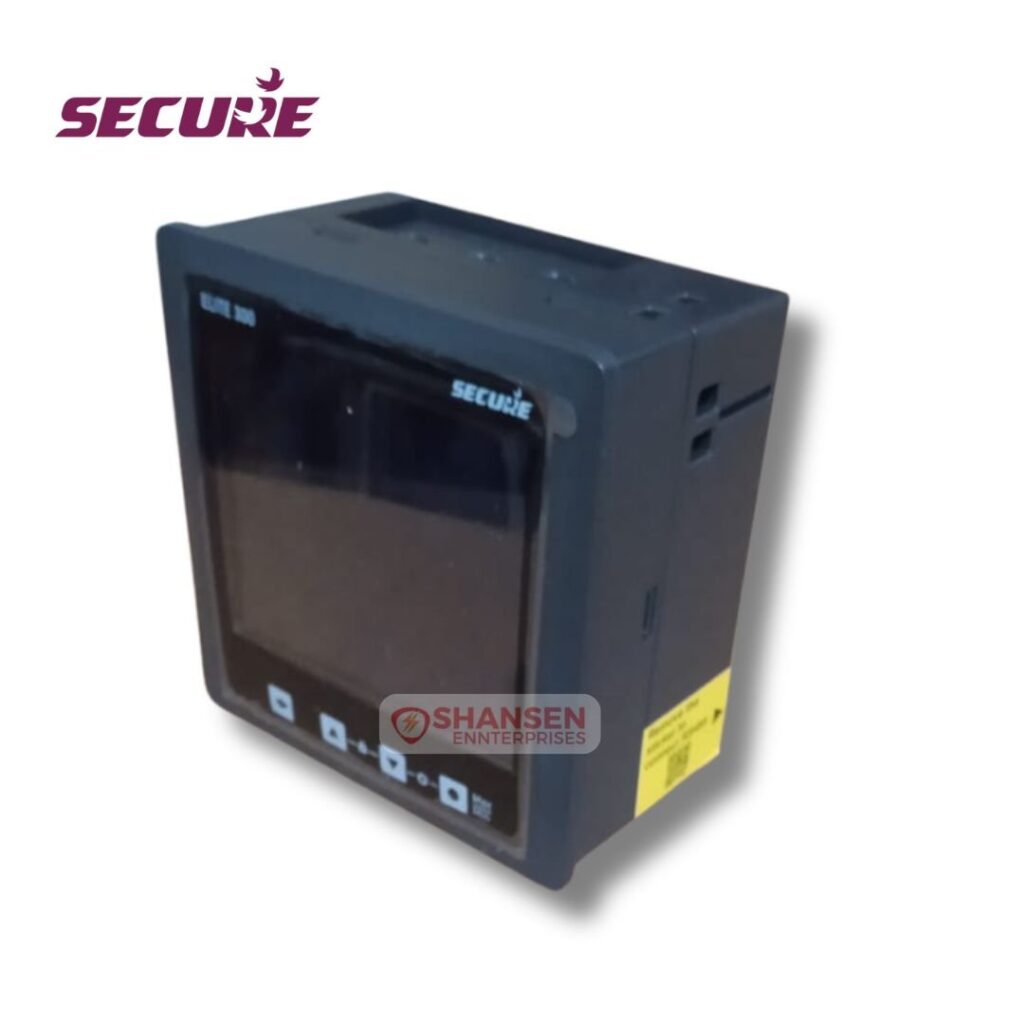

Description
| Specifications | Details |
|---|---|
| Connection Type | Common product for 1P2W / 3P3W / 3P4W applications |
| Measuring Voltage Range | 20 V to 500 V |
| Nominal Voltage Range (U,) | 57.5 V to 240 V (phase to neutral). 100 V to 415 V (phase to phase) |
| Over Voltage | 150% of U„ continuous |
| Measuring Current Range | 50 mA to 6A |
| Nominal Current Range (I,) | 1 A or 5 A |
| Overload | 150% of I, continuous |
| Frequency Range | 45 to 65 Hz |
| Power Factor | 0.1 lag – Unity – 0.1 lead (for I, and U,) |
| Auxiliary Power Supply Range | 40 to 300 V AC / DC |
| Short-Time Over Current | 120 A for 1 sec |
| Temperature Coefficient | Voltage, current: 0.05% / °C |
| Bezel Size | 96 x 96 x 55 mm (70.8 mm with parking terminals) |
| Panel Cut-Out | 92 x 92 mm |
| Tolerance | +0.5mm |
| Weight | Approx 320 grams |
| Enclosure | Flame Retardant Polycarbonate (as per UL 94 VO) |
| Voltage/Auxiliary Terminals | Combicon connectors: up to 2.5 mm² cable |
| Current Terminals | Pass-through CT connection: up to 2.5 mm² cable |
| Parking Terminal for CT Terminations (Optional) | U-type / ring-type terminations: maximum up to 2.5 mm² cable |
| Digital Output / RS-485 / Alarm Output | Combicon connectors: up to 2.5 mm² cable |
| Number of Lines (Display) | 4 lines |
| Number of Digits | 7 digits for energy parameters, 5 digits for instantaneous parameters |
| Energy Resolution | Up to 0.01 resolution |
