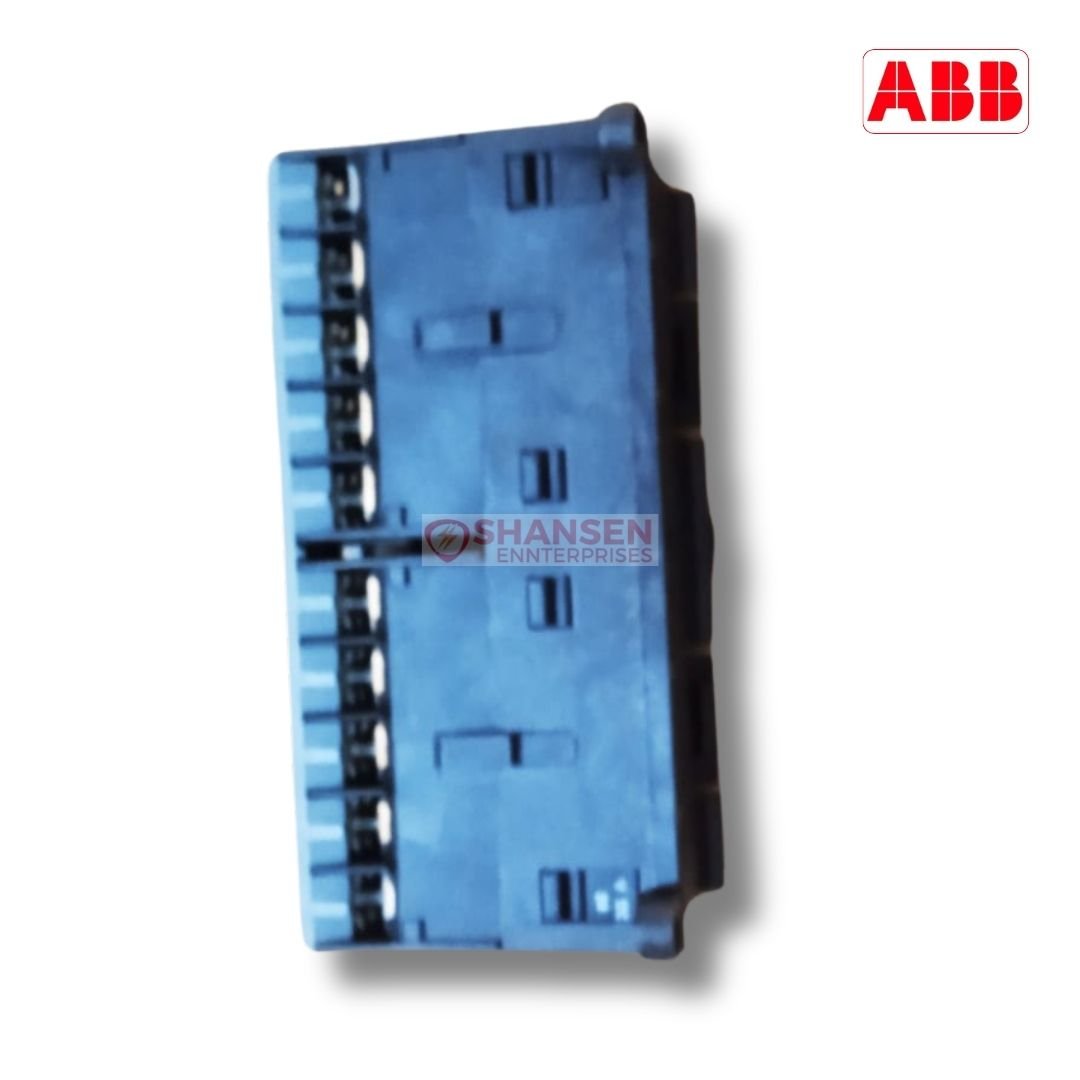

ABB_Brand_VBC7-30-10-P-01_Mini_Reversing_Contactor_side_view_top

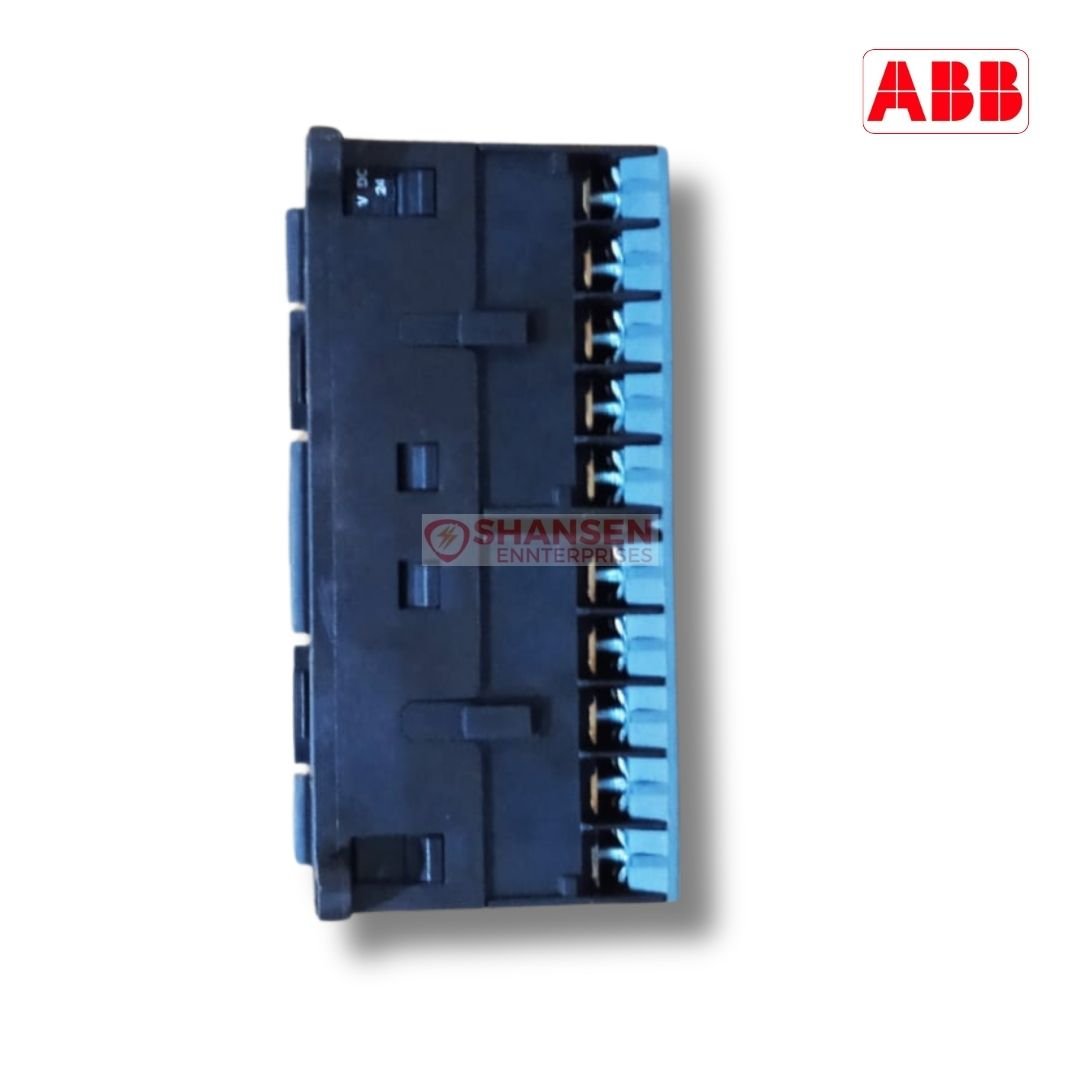

ABB_Brand_VBC7-30-10-P-01_Mini_Reversing_Contactor_backside-top_view

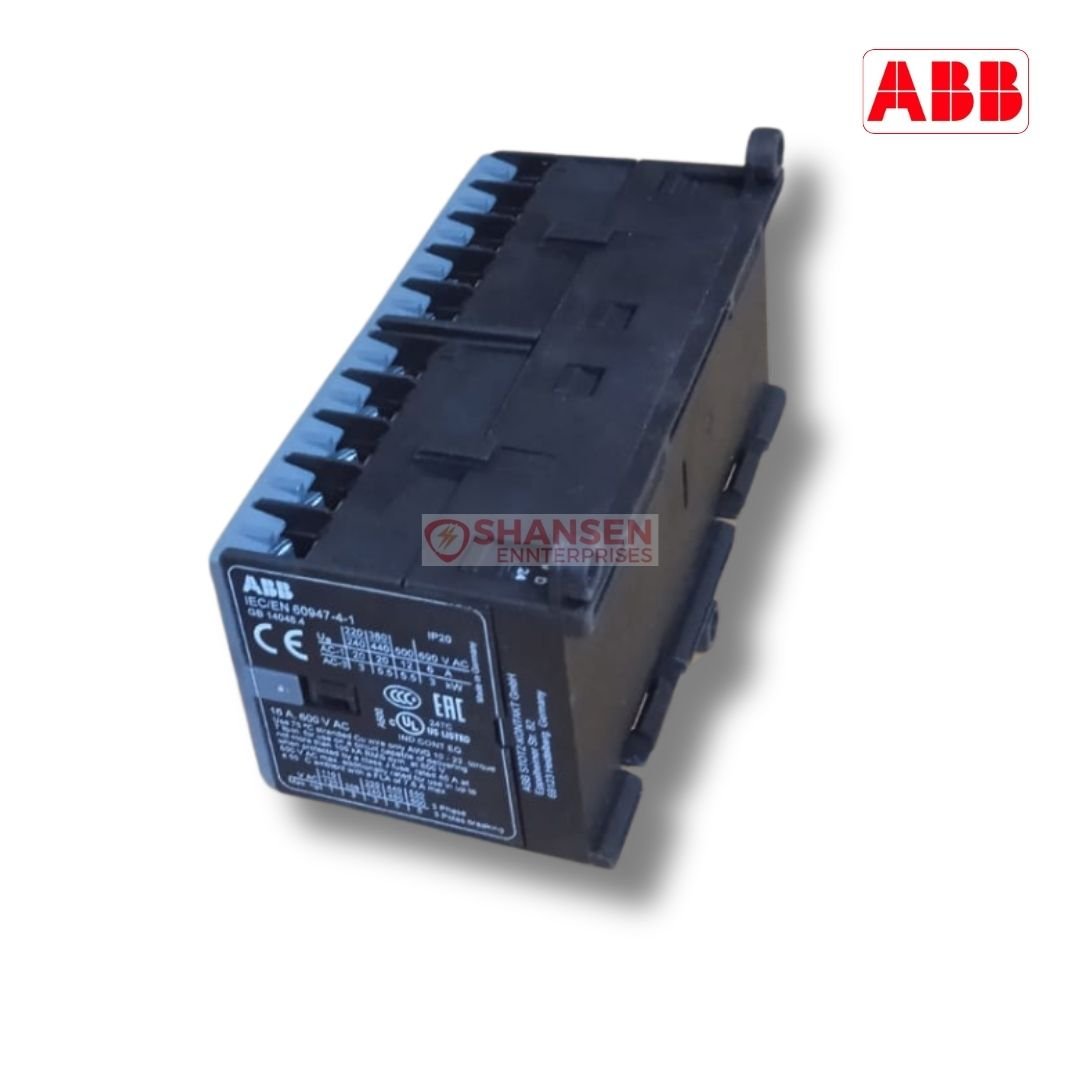

ABB_Brand_VBC7-30-10-P-01_Mini_Reversing_Contactor_left_sideview
ABB_Brand_VBC7-30-10-P-01_Mini_Reversing_Contactor_backside

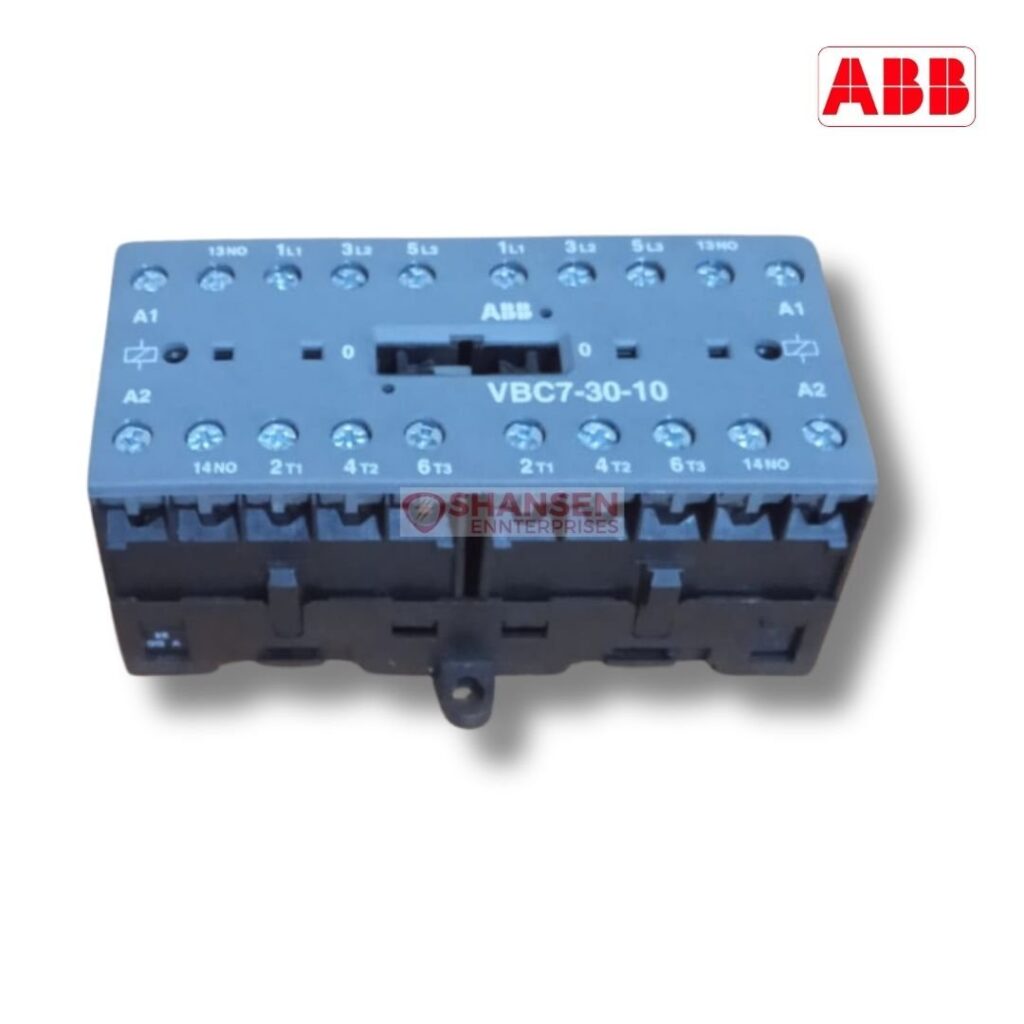

ABB Brand VBC7-30-10-P-01 Mini Reversing Contactor 24 V DC 3 NO 0 NC Soldering Pins

₹0.00

ABB Brand VBC7-30-10 Mini Reversing Contactor – Compact and Reliable

Looking for a dependable and space-saving solution for motor control? The ABB Brand VBC7-30-10 Mini Reversing Contactor is your answer. Designed as a 3-pole compact contactor with 1 auxiliary contact and screw terminals, it guarantees reliability for a range of applications. Featuring a normal mechanical interlock, this contactor excels in both residential and industrial environments.

Key Features

  • Compact Design: Perfect for applications where space is limited.
  • Noiseless Operation: Equipped with a hum-free coil for silent functionality.
  • Multi-Mounting Options: Can be rail-mounted or wall-mounted, enhancing versatility.
  • Switch Position Indication: Clear and precise visibility of the contactor’s switch position.
  • Durability: Handles three-phase motor loads up to 5.5 kW (AC-3) effortlessly.
  • Wide Applications: Ideal for residential buildings, commercial buildings, and industrial operations.

Where to Buy?

Get your ABB Brand VBC7-30-10 Mini Reversing Contactor at Shansen Enterprises, your authorized ABB Channel Partner in Coimbatore. Serving customers across India with ready stock, Shansen Enterprises ensures customer satisfaction with top-notch ABB products.

Quick Quote: Tap the “Get Quote Via WhatsApp” button now for an instant response!

Category: Tags: , , , , , , , , , , , , , , , , , , ,

Description

Technical Specifications Details
Number of Main Contacts NO 3
Compatibility Mini Contactors
Max Electrical Switching Frequency AC-1 300 cycles/hour, AC-15 600 cycles/hour, AC-3 600 cycles/hour, DC-1 600 cycles/hour, DC-13 600 cycles/hour, DC-3 600 cycles/hour
Horsepower Rating UL/CSA 208 V AC Three Phase 3 HP, 220-240 V AC Single Phase 1.5 HP, 220-240 V AC Three Phase 3 HP, 440-480 V AC Three Phase 5 HP, 550-600 V AC Three Phase 5 HP
Conventional Free-air Thermal Current (Ith) Main Circuit 20 A
Coil Consumption Average Holding Value DC 3.5 W, Average Pull-in Value DC 3.5 W
Terminal Type Screw Terminals
Rated Operational Voltage Auxiliary Circuit 12-240 V DC / Auxiliary Circuit 12-500 V AC, Main Circuit 690 V AC
Rated Control Circuit Voltage (Uc) 24V DC
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 8 x Ie / AC-3
Rated Operational Power AC-3 (Pe) 220-240 V 3 kW, 400 V 5.5 kW, 440 V 5.5 kW, 500 V 5.5 kW, 690 V 3 kW
Rated Operational Current AC-3 (Ie) 380-400 V 55°C 11.5 A
Rated Operational Current AC-1 (Ie) 220-240 V 40°C 20 A, 220-240 V 55°C 16 A, 380-440 V 40°C 20 A, 380-440 V 55°C 16 A, 690 V 40°C 6 A, 690 V 55°C 6 A
Rated Making Capacity AC-3 acc. to IEC 60947-4-1 10 x Ie / AC-3
Rated Frequency (f) Main Circuit 60 Hz, 50 Hz, DC
Rated Short-time Withstand Current (Icw) 40°C Ambient Temp, 10 s 96 A
Max Operating Voltage UL/CSA Main Circuit 600 V AC
Package Dimensions Width 115 mm, Length 280 mm, Height 54 mm
Invoice Description VBC7-30-10-01 Mini Rev. Contactor 24VDC
Product Range Mini Contactors
Package Gross Weight 1.845 kg
Extended Product Type VBC7-30-10-01
General Use Rating UL/CSA 600 V AC 16 A
Full Load Amps Motor Use 240 V AC Single Phase 10 A, 440-480 V AC Three Phase 7.6 A
Ambient Air Temperature Operation -20 to +55°C, Storage -40 to +80°C
Rated Insulation Voltage (Ui) 690 V, UL/CSA 600 V
Number of Poles 4
Mounting Type DIN-rail, Screw
