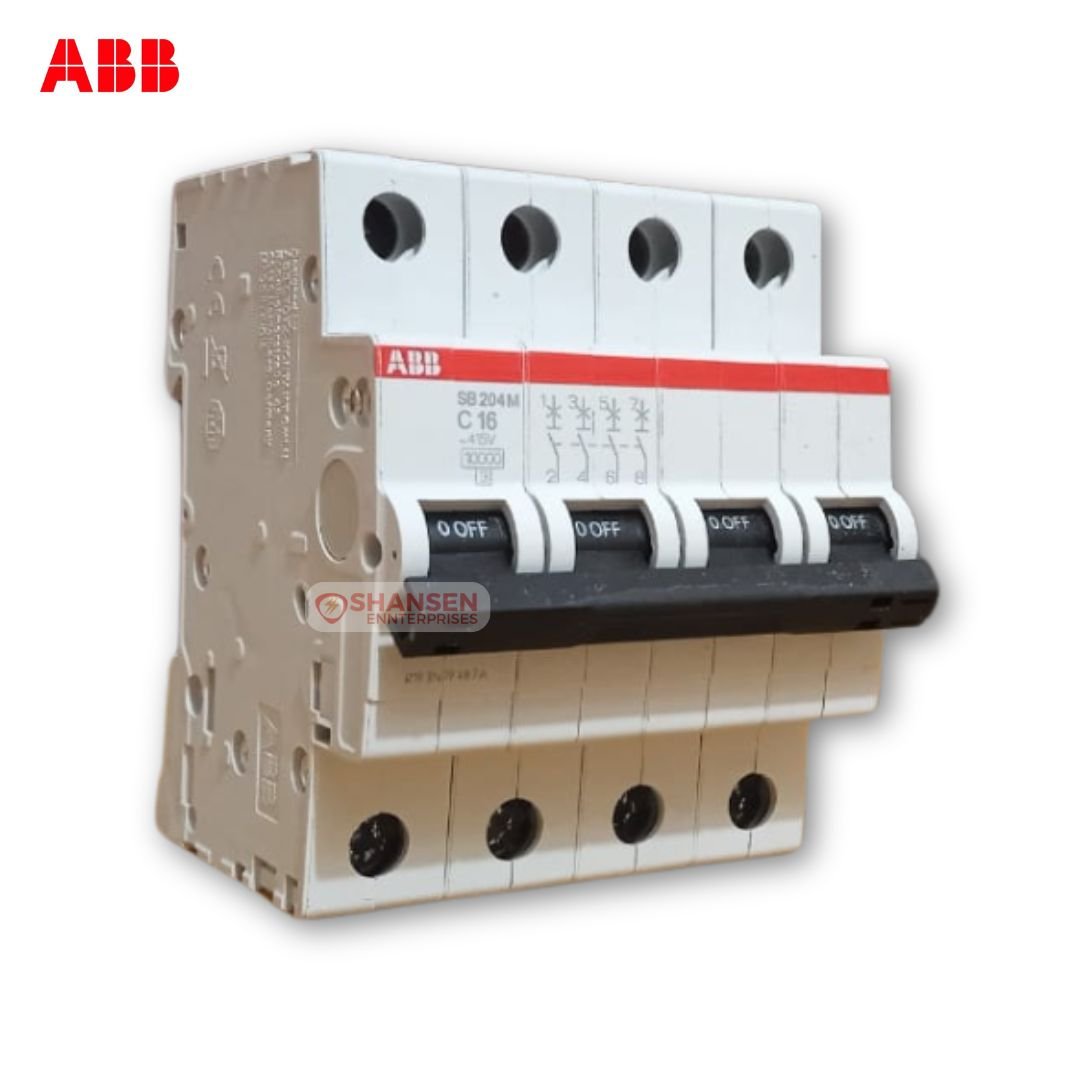

ABB SB204M-C16 Miniature Circuit Breaker – 4P, 16A, C-Curve
Keep your electrical systems safe and efficient with the ABB SB204M-C16 MCB. Designed for high performance in compact spaces, this 4-pole miniature circuit breaker combines smart protection with ABB’s trusted engineering.
🔹 Key Features at a Glance
4 Pole (4P) configuration
Rated Current: 16 A
Tripping Characteristic: Type C (ideal for moderate inrush currents)
Short-Circuit Capacity: 10 kA at 240/415V AC
Voltage Rating: Up to 415 V AC / 60 V DC
Dual Tripping Mechanisms: Thermal (overload) & Electromechanical (short-circuit)
High Impulse Withstand Voltage: 4 kV
Compact design: 70mm (W) x 85mm (H) x 69mm (D)
Standards Compliance: IS/IEC 60898-1
Country of Origin: 🇮🇳 India
Ideal For
Residential Buildings
Commercial Complexes
Industrial Facilities
Educational Institutions
Data Centers
Hospitals & Clinics
Send us a message on WhatsApp or email to get pricing and availability. We respond within 30 minutes.
Cartoon visual of ABB SB204M-C16 circuit breaker installed by an engineer in an industrial panel – Supplied by Shansen Enterprises[/caption]
| Technical Specification | Details |
|---|---|
| Rated Operational Current (Ie) | 16 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycles |
| Mechanical Endurance | 20000 cycles |
| Number of Protected Poles | 4 |
| Number of Poles | 4P |
| Tightening Torque | 2 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Cage Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | IP40 in enclosure with cover |
| Connecting Capacity | Rigid: 25 mm²; Flexible: 16 mm² |
