Description
General Specifications | Details |
---|---|

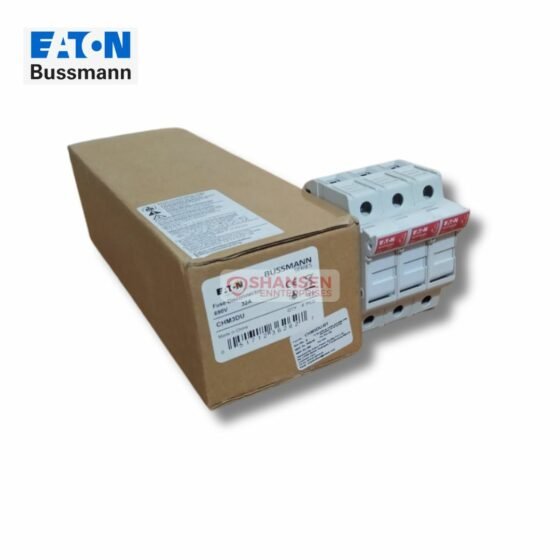

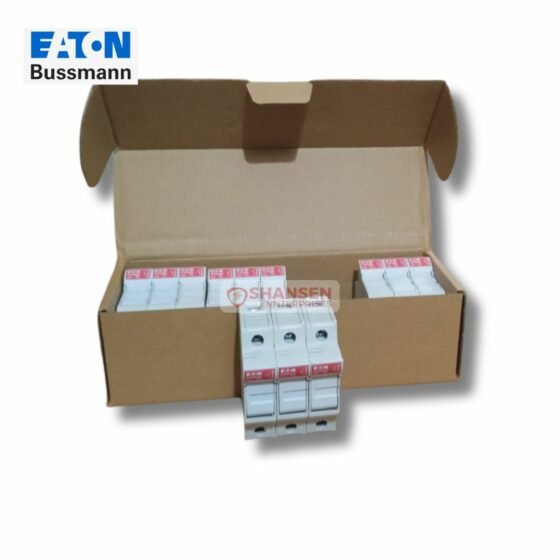

Product Name | Eaton Bussmann series CHM modular fuse holder |
Catalog Number | CHM3DU |
EAN | 51712362627 |
UPC | 051712362627 |
Product Length/Depth | 83 mm |
Product Height | 74 mm |
Product Width | 53 mm |
Product Weight | 156.75 g |
Compliances | Contact factory |
RoHS Compliant | Yes |
Certifications | Contact Manufacturer |
Product Specifications | Details |
Used with | For use with 10 mm X 38 mm fuse |
Type | Modular fuse holder |
Amperage Rating | 30A (UL), 32A (IEC) |
Number of Poles | Three-pole |
Operating Temperature – Max | 120 °C |
Operating Temperature – Min | -20 °C |
Voltage Rating | 600 V (UL), 690 V (IEC) |
