Description
| General Specifications | Details |
|---|---|

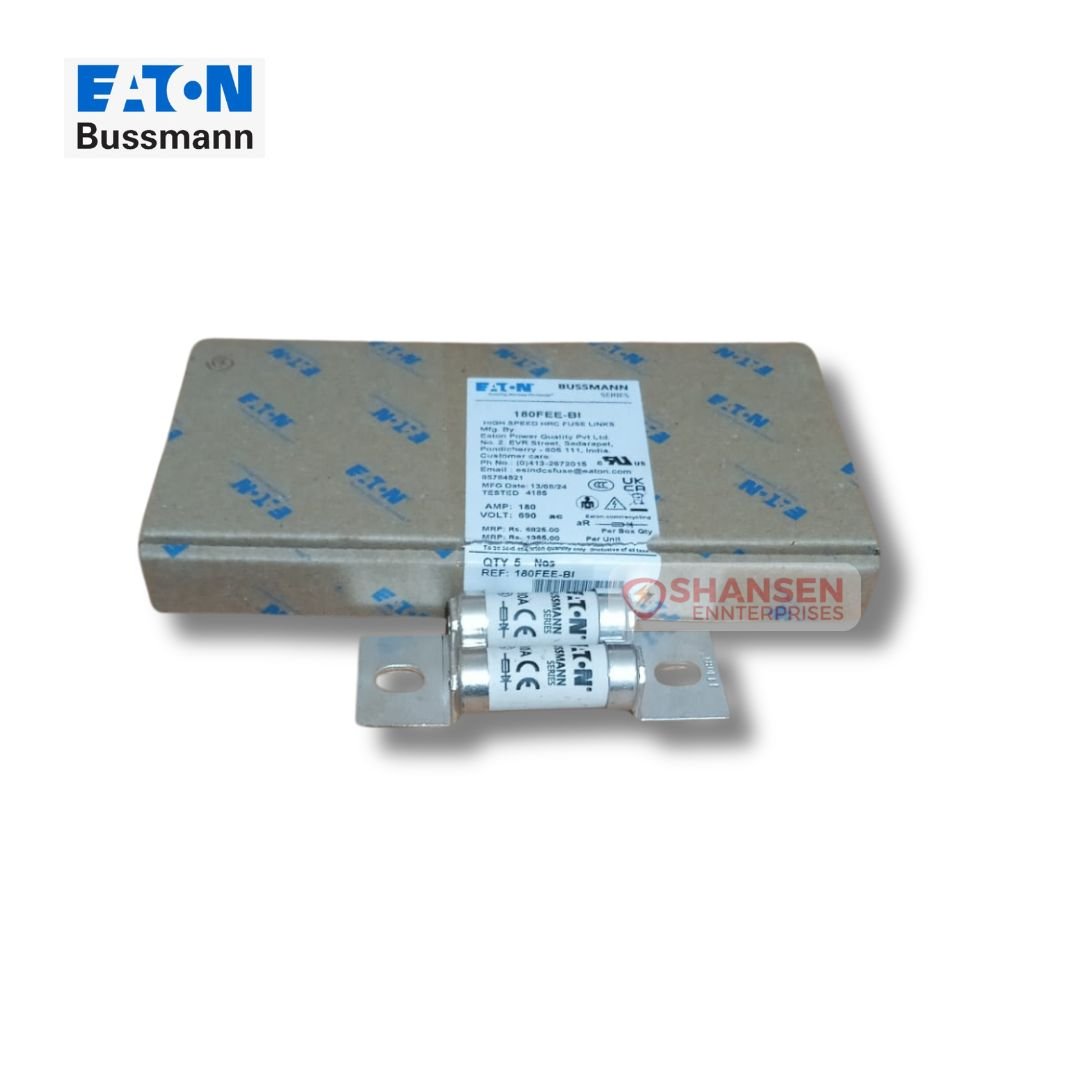

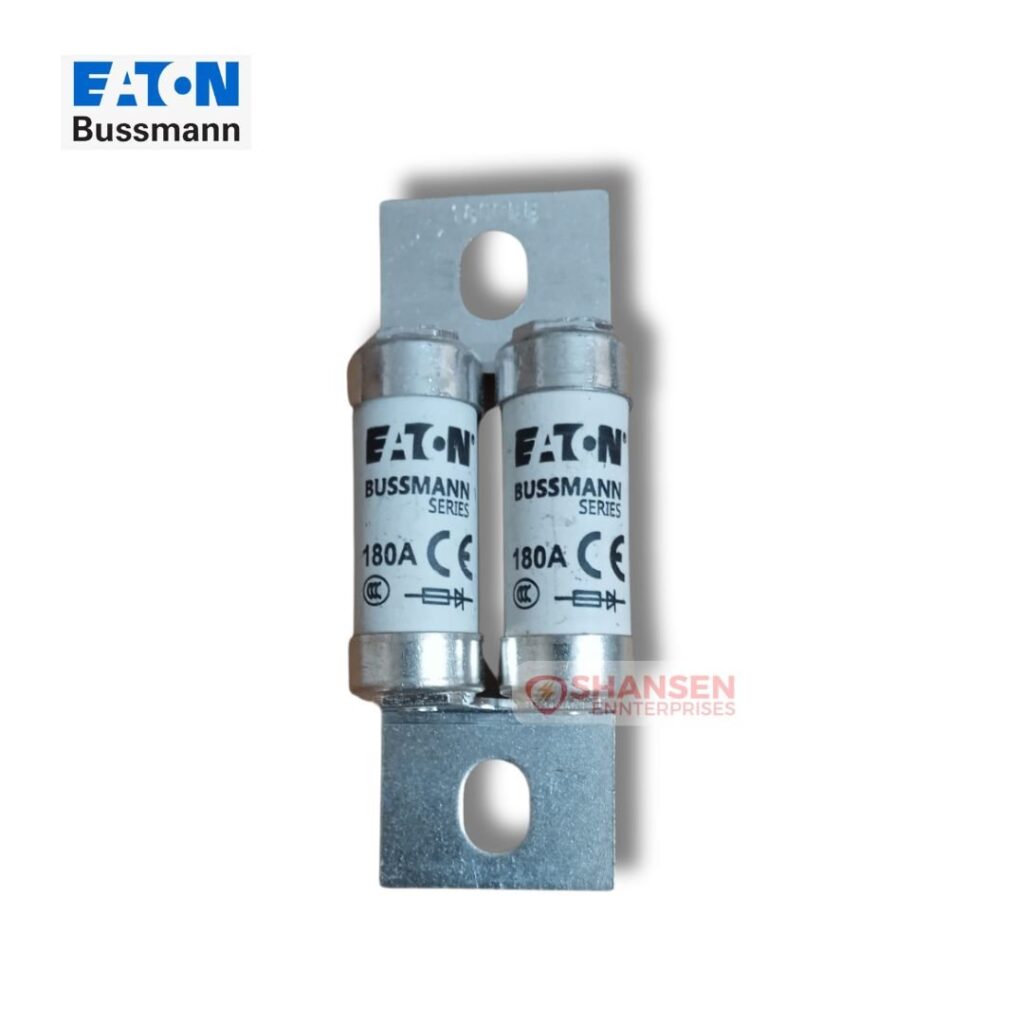

| Product Name | Eaton Bussmann series high speed British standard fuse |
| Catalog Number | 180FEE |
| UPC | 051712832069 |
| EAN | 5027590466110 |
| Product Length/Depth | 94 mm |
| Product Height | 36 mm |
| Product Width | 20 mm |
| Product Weight | 91.6 g |
| Warranty | Not Applicable |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | UL Recognized, IEC Rated, Designed and tested to BS88 Part 4, IEC 60269-4 |
| Product Specifications | Details |
|---|---|
| Type | Fuse |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Amperage Rating | 180 A |
| Breaking Capacity | 200 kA |
| Fuse Indicator | None |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization Category | aR (accompanied semiconductor protection) |
| Voltage Type | AC/DC |
| Rated Switching Capacity | 200 kA |
| Rated Voltage AC | 690 V |
| Rated Voltage DC | 500 V |
| Center-to-Center Distance of Connections | 71 mm |
| Mounting Dimension | M8 |
| Current Type | AC/DC |
| Class | Class aR |
| Clearing (I2T) | 5300 at 415 V, 8400 at 660 V |
| Watt Losses | 46 W |
| Fuse Shape | Offset dual barrel bolted tags |
| Pre Arc (I2T) | 1400 |
| Color | None |
| Interrupt Rating | 200 kA RMS Sym, 50 kA at 500 Vdc |
| Connection | Blade end x blade end |
| Construction Size | Other |
| Mounting Method | Stud |
| Packaging Type | Standard |
| Voltage Rating | 690 V (IEC), 700 V (UL) |
| Fuse Type | FEE |
| Suitable For | EC-600 Trip indicator kit (indicator + clips), TI700 Fuse indicator, MAI Microswitch/adaptor, MBI Microswitch/adaptor |
